O sealing ring for metric connection thread | 50

O sealing ring for metric connection thread

Item no. 2088770 | EAN 4012195471615

Item no. / Types

Suitable for metric thread dimension

Product description

Product description

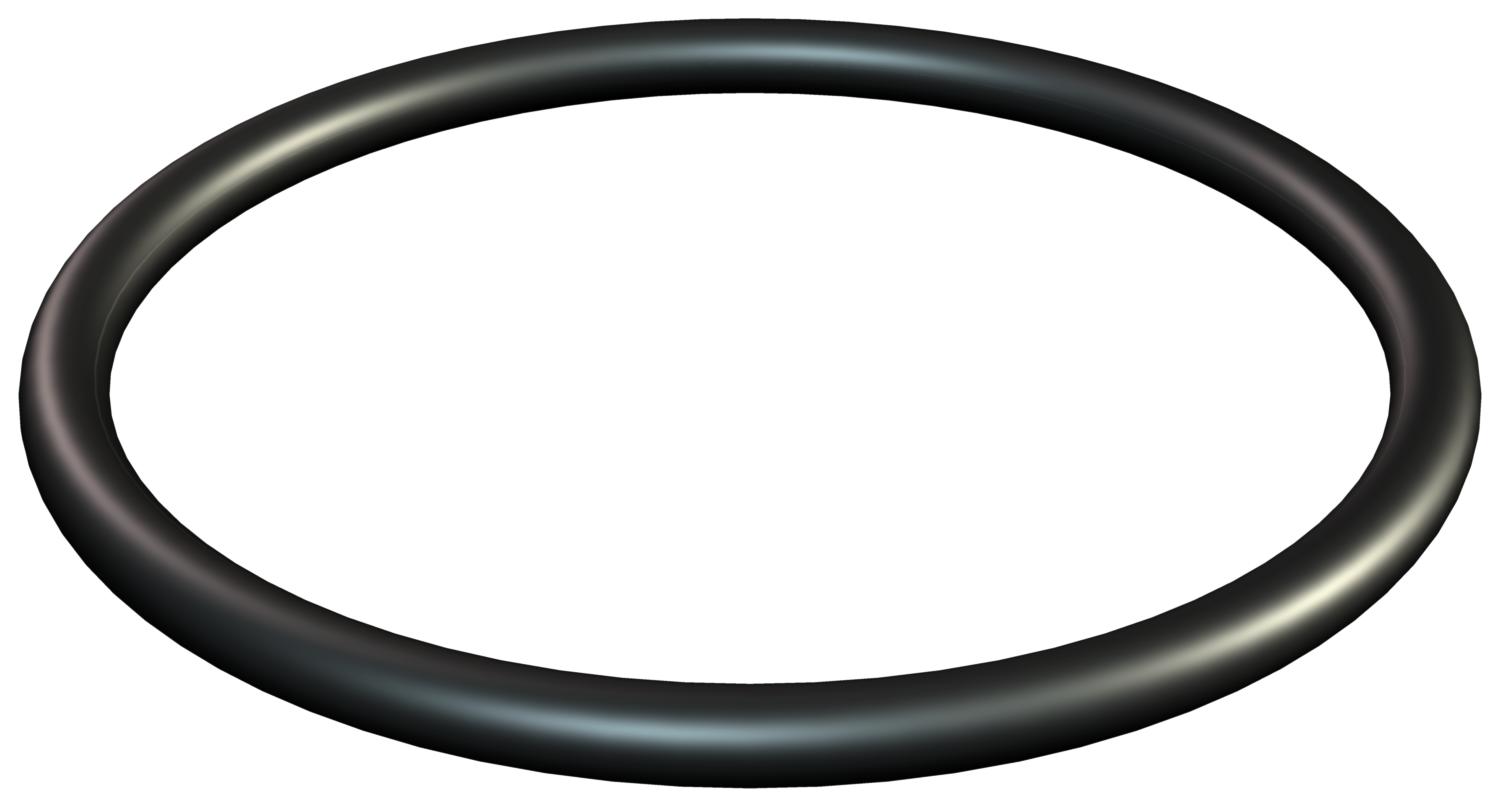

O sealing rings, suitable as connection thread sealing rings for all plastic and brass cable glands with metric connection thread to DIN EN 60423 or ISO 68. The rings can be captively pre-mounted.

Technical data

Technical data

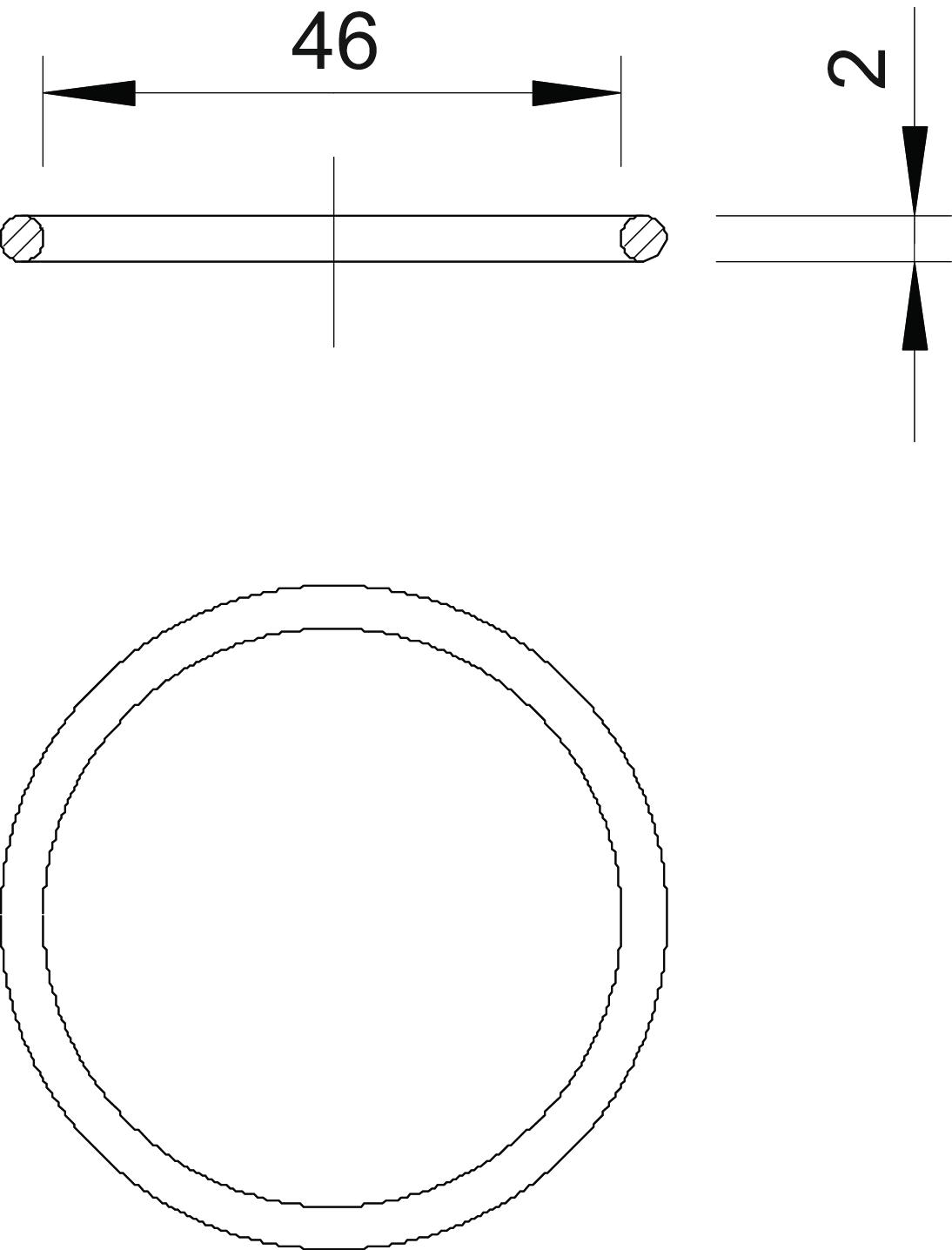

Dimension	M50
Dimension D	46 mm
Dimension S	2 mm
External diameter	48 mm
Inner diameter	46 mm

Material	Nitrile rubber
Suitable for metric thread dimension	50
Thickness	2 mm
Version for	O-ring

All types

All types

Types	Suitable for metric thread dimension	Item no.	Quantity	SSU
171 M12	12	2088703	piece	100 piece
171 M16	16	2088711	piece	100 piece
171 M20	20	2088738	piece	100 piece
171 M25	25	2088746	piece	100 piece
171 M32	32	2088754	piece	100 piece
171 M40	40	2088762	piece	50 piece
171 M50	50	2088770	piece	50 piece
171 M63	63	2088789	piece	25 piece
