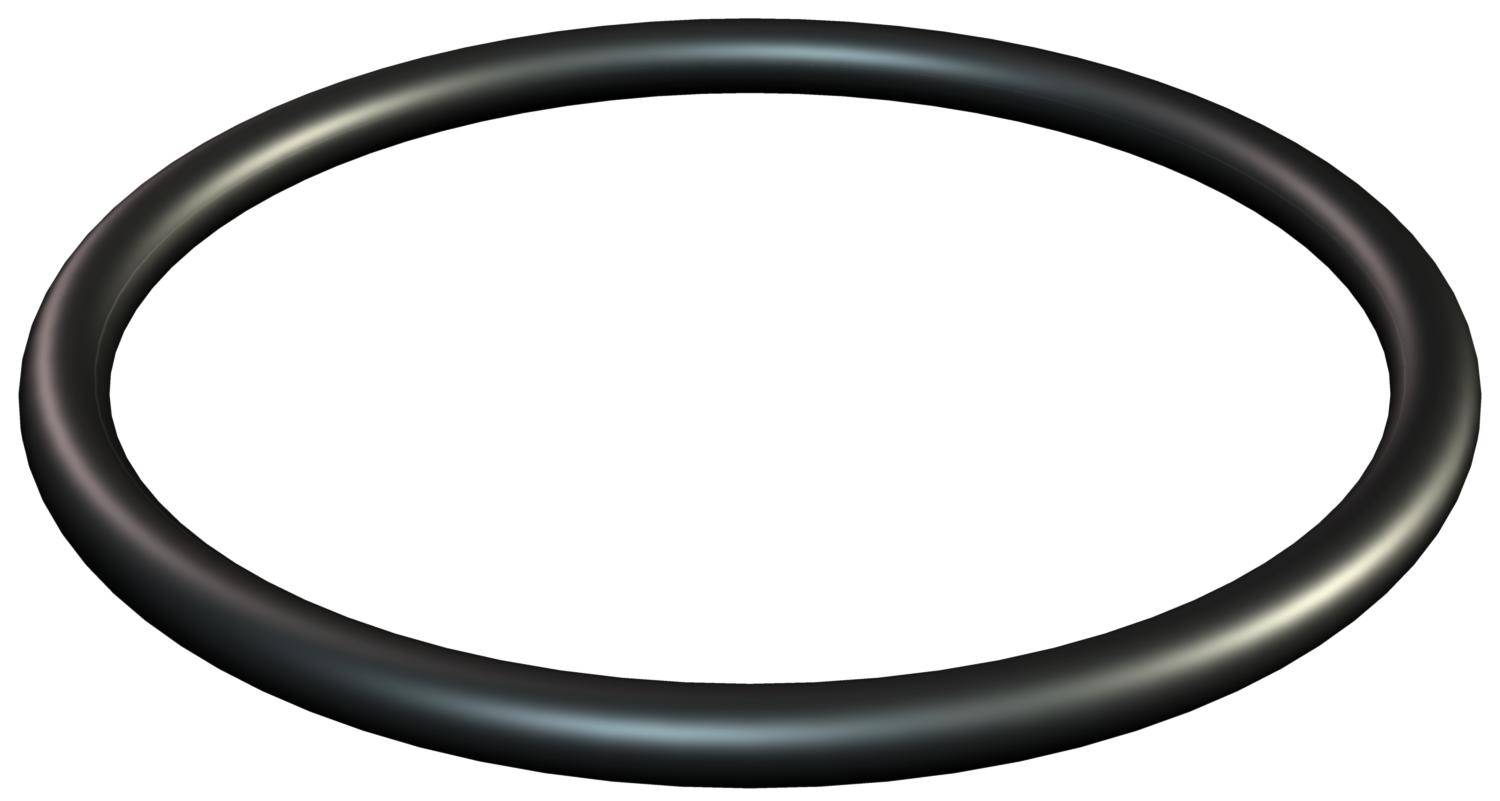

O sealing ring for metric connection thread
Item no. 2088762 | EAN 4012195471554
- Product description
-
Product description
O sealing rings, suitable as connection thread sealing rings for all plastic and brass cable glands with metric connection thread to DIN EN 60423 or ISO 68. The rings can be captively pre-mounted.
-
- Technical data
-
Technical data

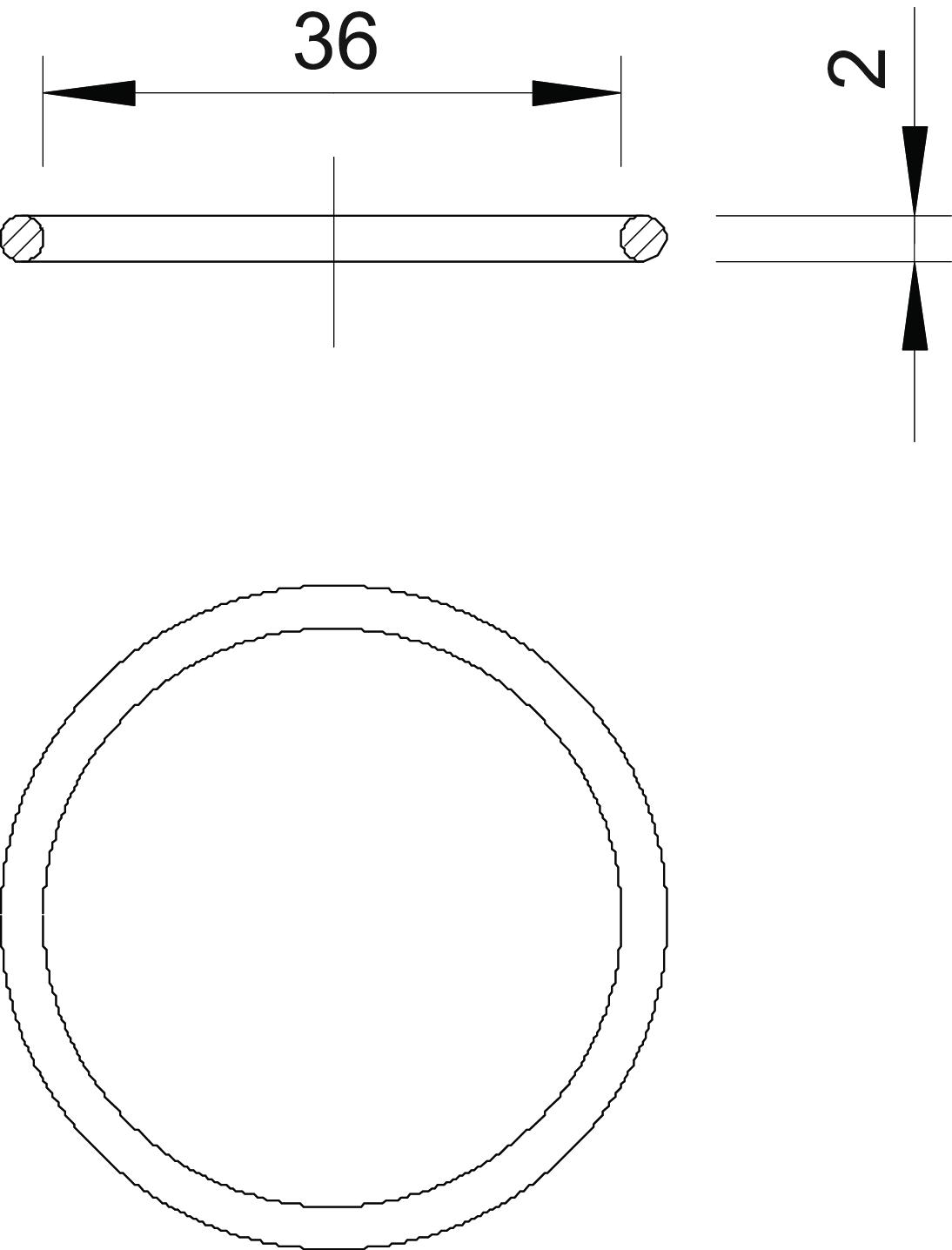

Dimension M40 Dimension D 36 mm Dimension S 2 mm External diameter 38 mm Inner diameter 36 mm Material Nitrile rubber Suitable for metric thread dimension 40 Thickness 2 mm Version for O-ring - All types
- Downloads
-
Data sheet 171 M40 / 2088762 , 0.19MB , pdfDeclaration of conformity 171 M40 / 2088762 , 0.58MB , pdfREACH Declaration of conformity 171 M40 / 2088762 , 0.12MB , pdfRoHS Declaration of conformity 171 M40 / 2088762 , 0.12MB , pdf
