O sealing ring for metric connection thread
Item no. 2088703 | EAN 4012195470953
- Product description
-

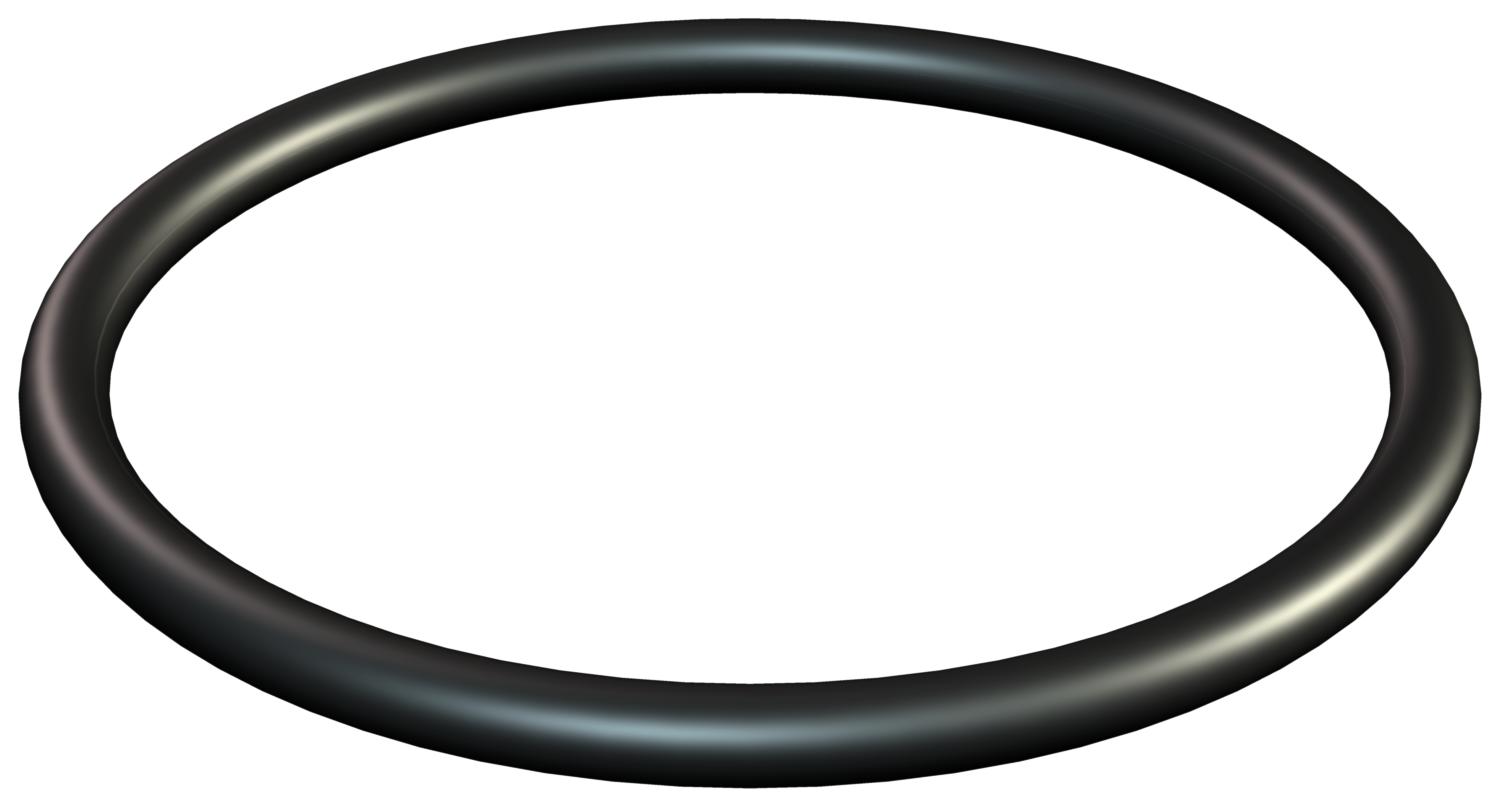

Product descriptionO sealing rings, suitable as connection thread sealing rings for all plastic and brass cable glands with metric connection thread to DIN EN 60423 or ISO 68. The rings can be captively pre-mounted.
-
- Technical data
-
Technical data

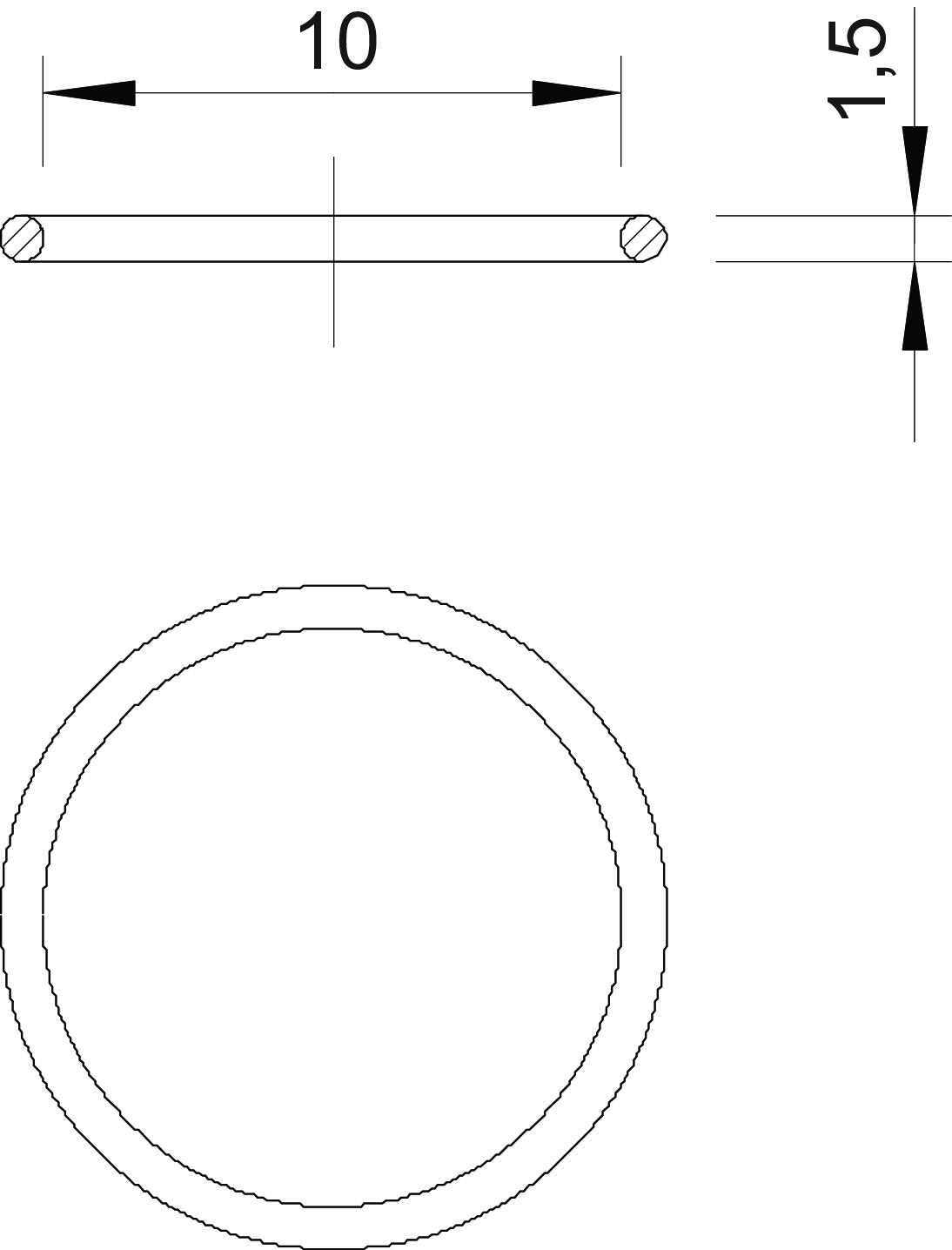

Dimension M12 Dimension D 10 mm Dimension S 1,5 mm External diameter 11,5 mm Inner diameter 10 mm Material Nitrile rubber Suitable for metric thread dimension 12 Thickness 1,5 mm Version for O-ring - All types
- Downloads
-
Data sheet 171 M12 / 2088703 , 0.19MB , pdfEU declaration of conformity 171 M12 / 2088703 , 0.58MB , pdfREACH Declaration of conformity 171 M12 / 2088703 , 0.12MB , pdfRoHS Declaration of conformity 171 M12 / 2088703 , 0.12MB , pdf
