Nipple 89/RK 12 | 16 | PG 13,5

morepic-1

morepic-2

Nipple 89/RK

Item no. 2012049 | EAN 4012195156130

Item no. / Types	2012049 / 89 ROE 12-16

for diameter, min.	12 mm

for diameter, max.	16 mm

Size	PG 13,5

Product description

Product description

Closed entry nipple with perforation membrane for cable diameters 12–16 mm. Ideal for simple cable routing in housings or through thin sheet metal.

Required hole diameter 18.5‒19 mm, wall thickness max. 3 mm.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	Ø12-16mm
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
for diameter, max.	16 mm
for diameter, min.	12 mm
for wall thickness, max.	3
Halogen-free	yes

Material	Polyethylene, low density
Nominal diameter	19 mm
Nominal size PG	13,5
Protection rating	IP54
Size	PG 13,5
Version for	Cuttable

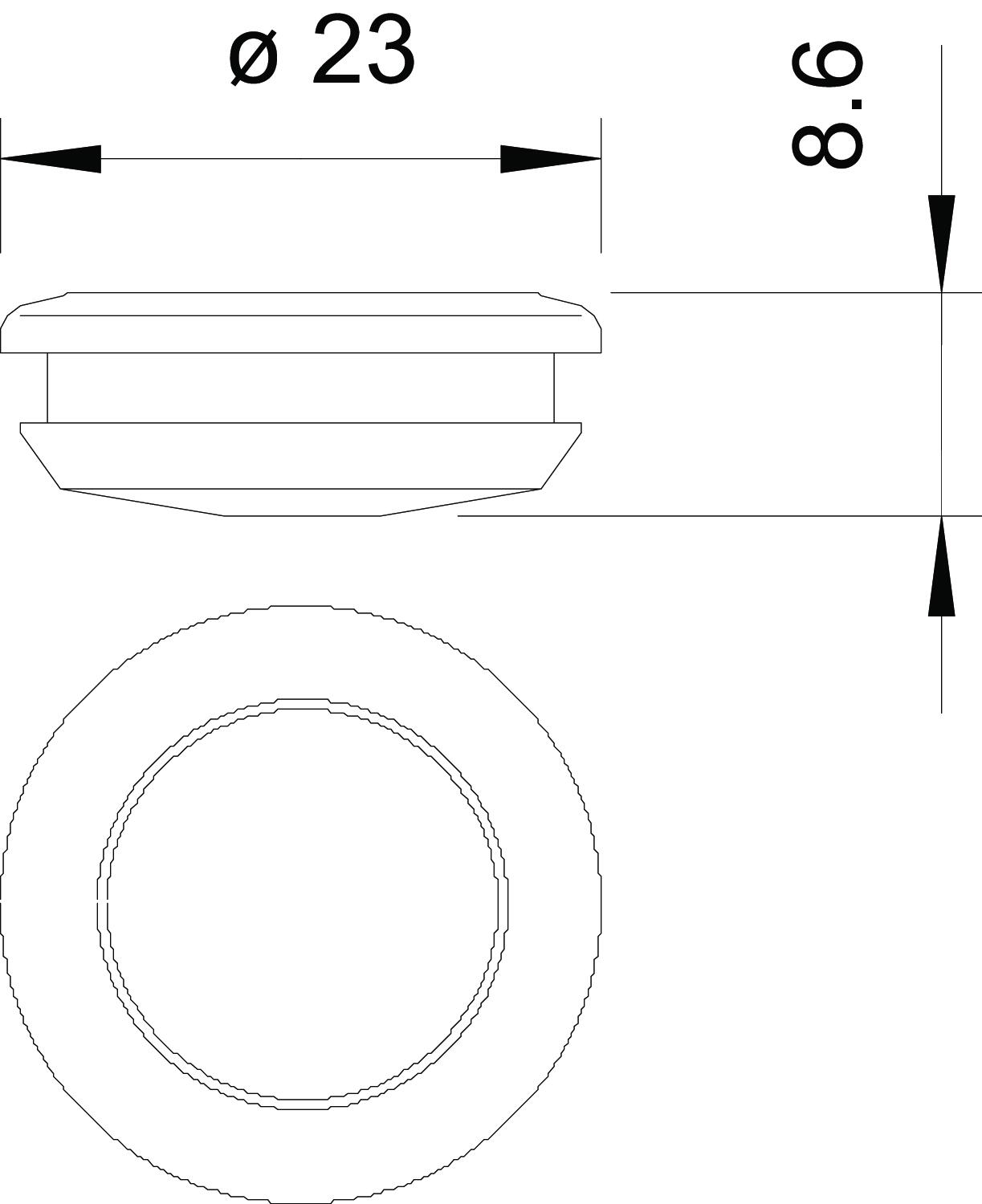

Dimensions

Dimension t	3 mm

All types

All types

Types	for diameter, min.	for diameter, max.	Size	Item no.	Quantity	SSU
89 ROE 12-16	12 mm	16 mm	PG 13,5	2012049	piece	100 piece

Downloads

Data sheet 89 ROE 12-16 / 2012049 , 0.22MB , pdf

Catalogue Connection and routing systems , 40.76MB , pdf

REACH Declaration of conformity 89 ROE 12-16 / 2012049 , 0.12MB , pdf

Download

RoHS Declaration of conformity 89 ROE 12-16 / 2012049 , 0.12MB , pdf

Download

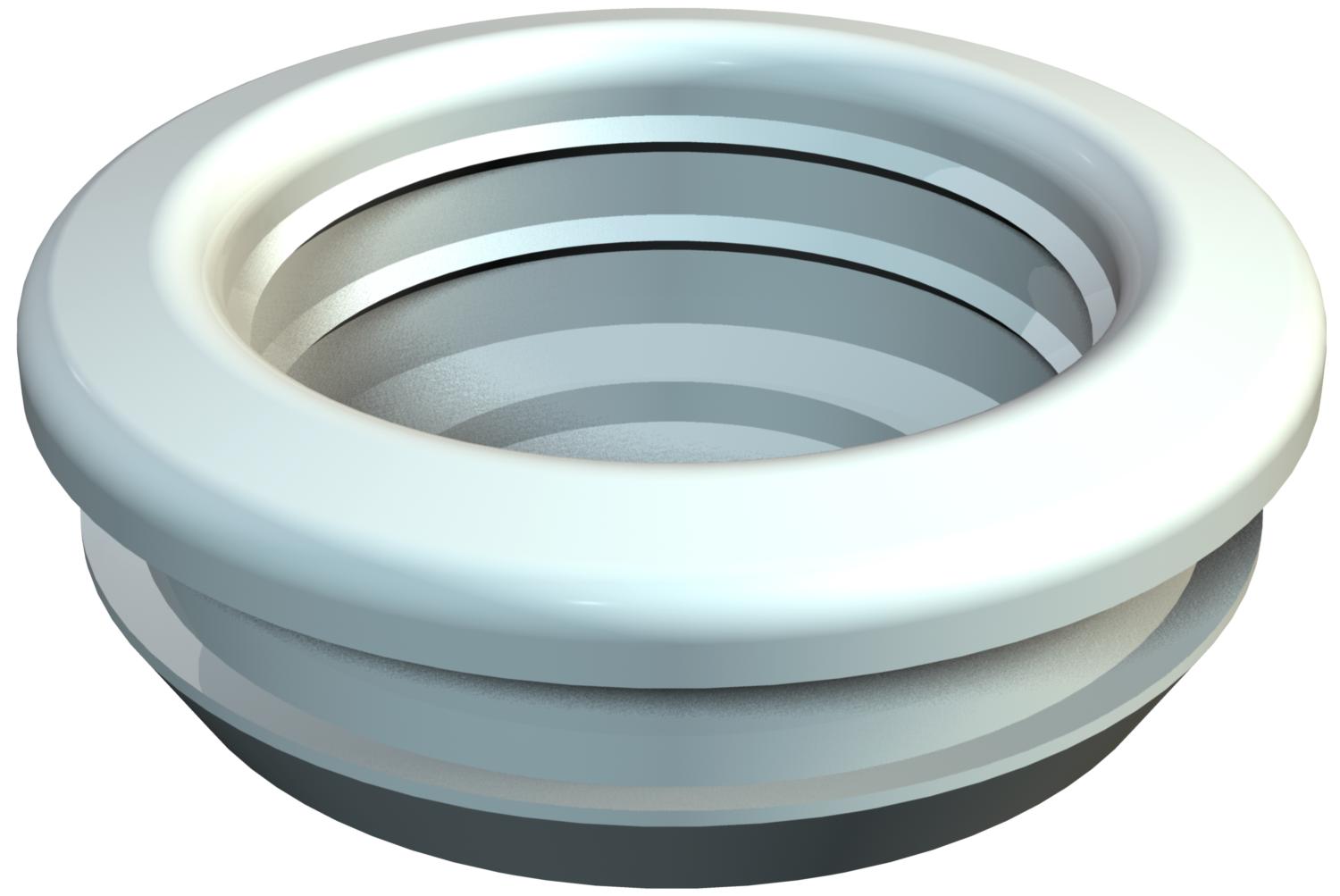

Product graphic 89 ROE 12-16 / 2012049, 67.54 kB, jpg
