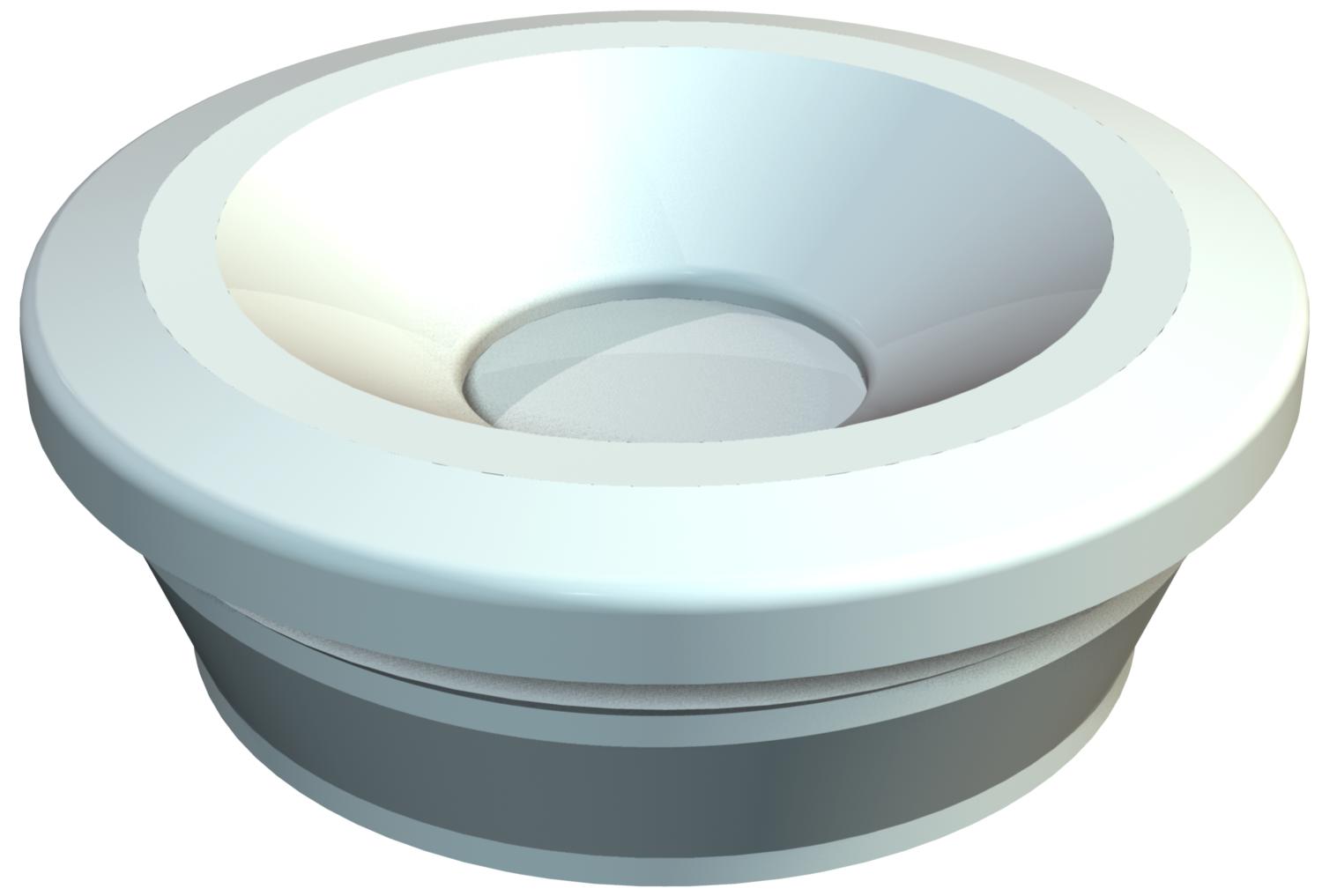

Nippel 89, light grey

Item no. 2012065 | EAN 4012195559092

Item no. / Types

for diameter, min.	7 mm

for diameter, max.	13 mm

Size	PG 11

Product description

Product description

Closed entry nipple with perforation membrane for cable diameters 7‒13 mm. Ideal for simple cable routing in housings or through thin sheet metal.
Required hole diameter 18.5‒19 mm, wall thickness max. 1.8 mm.

Technical data

Technical data

Colour	Light grey; RAL 7035
Dimension	Ø7-13mm
Dimension t	1,8 mm
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
for diameter, max.	13 mm
for diameter, min.	7 mm
for wall thickness, max.	1,8

for wall thickness, min.	1,8
Halogen-free	yes
Material	Ethylene vinyl acetate
Nominal size PG	11
Size	PG 11
Version for	Closed

All types

All types

Types	for diameter, min.	for diameter, max.	Size	Item no.	Quantity	SSU
89	7 mm	13 mm	PG 11	2012030	piece	100 piece
89 LoG	7 mm	13 mm	PG 11	2012065	piece	5000 piece
89 3MM NUT	7 mm	13 mm	PG 11	2012081	piece	2000 piece
89 RW	7 mm	13 mm	PG 11	2012103	piece	100 piece
89 SW	7 mm	13 mm	PG 11	2012146	piece	100 piece
