Product description

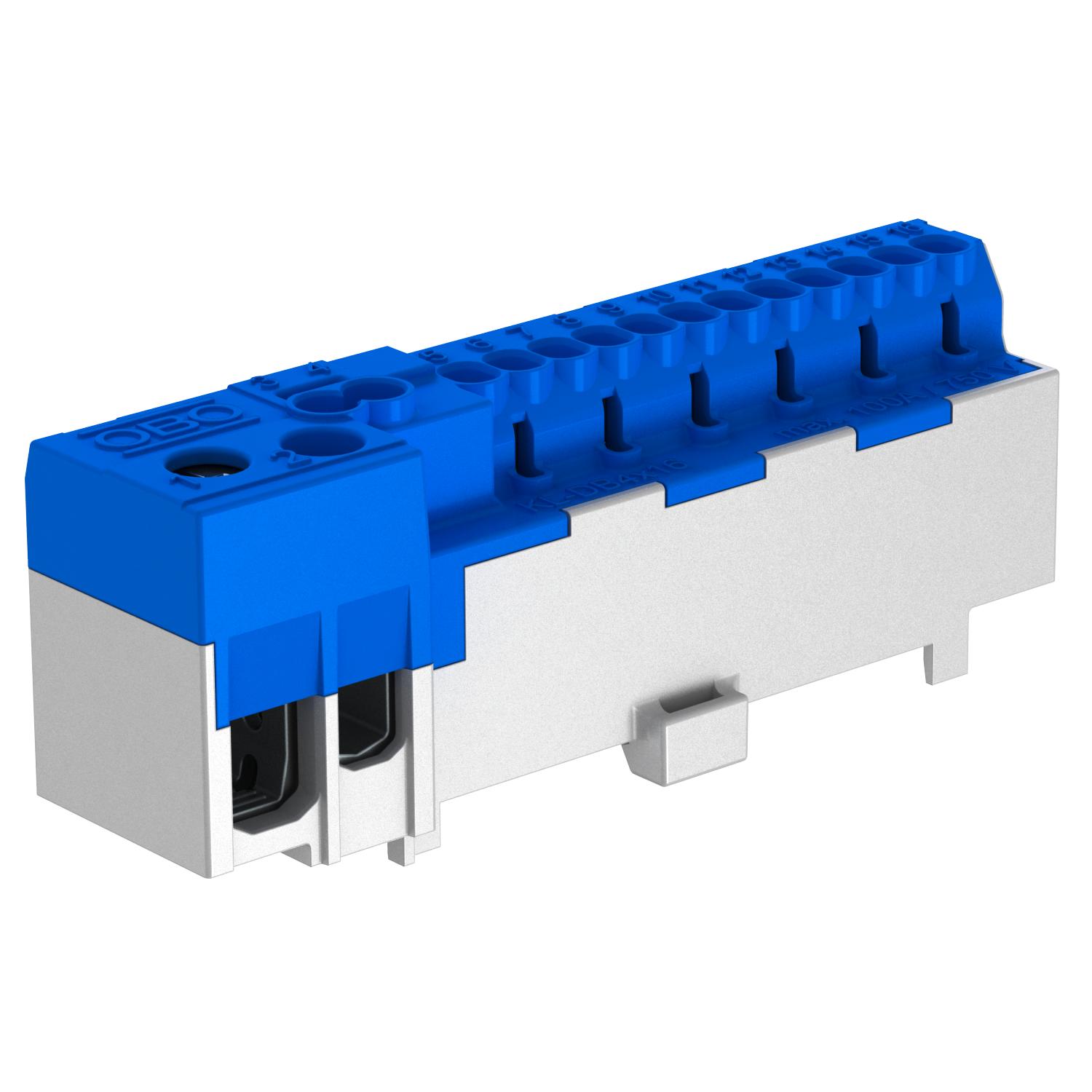

Neutral conductor connection terminal with 12 plug-in terminals, 2.5 mm² or 1.5 mm², flexible with wire end sleeve; two plug-in terminals, 4 mm² and 2.5 mm², flexible with wire end sleeve and two screw connection terminals up to 25 mm² or 16 mm², flexible, 3 Nm. For snapping onto 15 mm hat rails according to DIN EN 60715 (formerly DIN EN 50022).
- Technical data
-
Technical data
Closing plate required no Colour Grey / blue Cross-section 12 terminals to 16 mm² mm² Dimension 12x2,5mm² Explosion-tested version no Height 20 mm Length 85 mm Material Polyamide No. of terminals 12 Nominal cross-section, max. 16 mm² Nominal cross-section, min. 10 mm² Pole number 12 Suitable for flexible conductors yes Suitable for multi-wire conductors no Suitable for solid conductors no - All types
- Downloads
-
Data sheet KL-DBN12x02GRBL / 2016265 , 0.22MB , pdfREACH Declaration of conformity KL-DBN12x02GRBL / 2016265 , 0.12MB , pdfRoHS Declaration of conformity KL-DBN12x02GRBL / 2016265 , 0.13MB , pdf
