Neutral conductor terminal, with screw contacts, 7 terminals 7 | 10 | 16
morepic-1 morepic-2

Neutral conductor terminal, with screw contacts, 7 terminals

Item no. 2054000 | EAN 4012195183198

2054000 / 60 N 7x16 BL
7
10 mm²
16 mm²
Product description
Product description

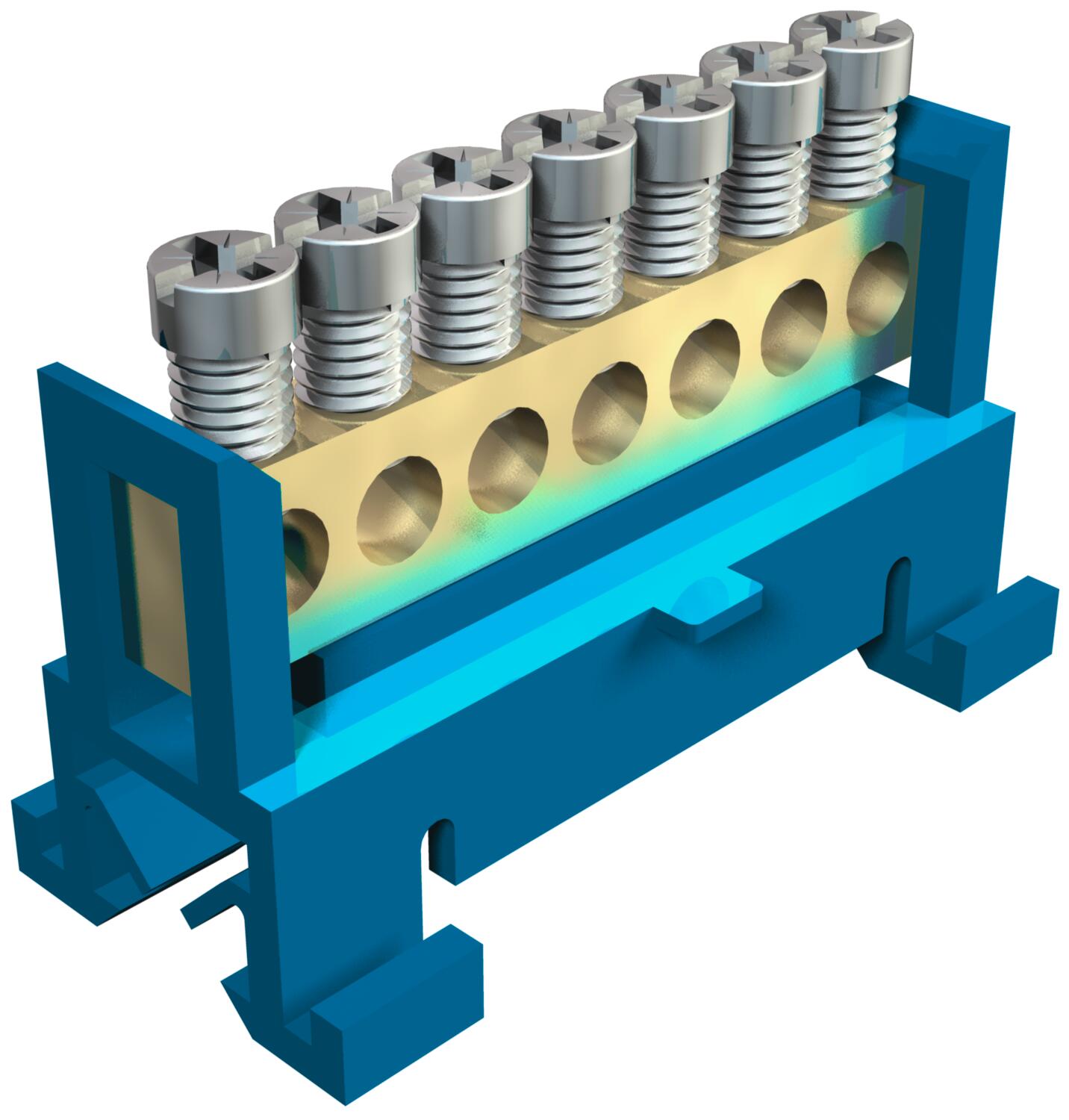

Neutral conductor connection terminal with 7 terminals up to 16 mm².

Clamping rail, brass, steel screws, electrogalvanised and transparently passivated, for snapping onto 35 mm hat rails to DIN EN 60715 - previously DIN EN 50022 - (transverse) or flat rails 10 x 2-2.5 mm (lengthwise).
60/N 7 and 60/S 7: with 7 terminals to 16 mm².
  • Flame resistant 960 °C
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Closing plate required no
Colour Blue
Cross-section 7 terminals to 16 mm² mm²
Dimension 7x16mm²
Explosion-tested version no

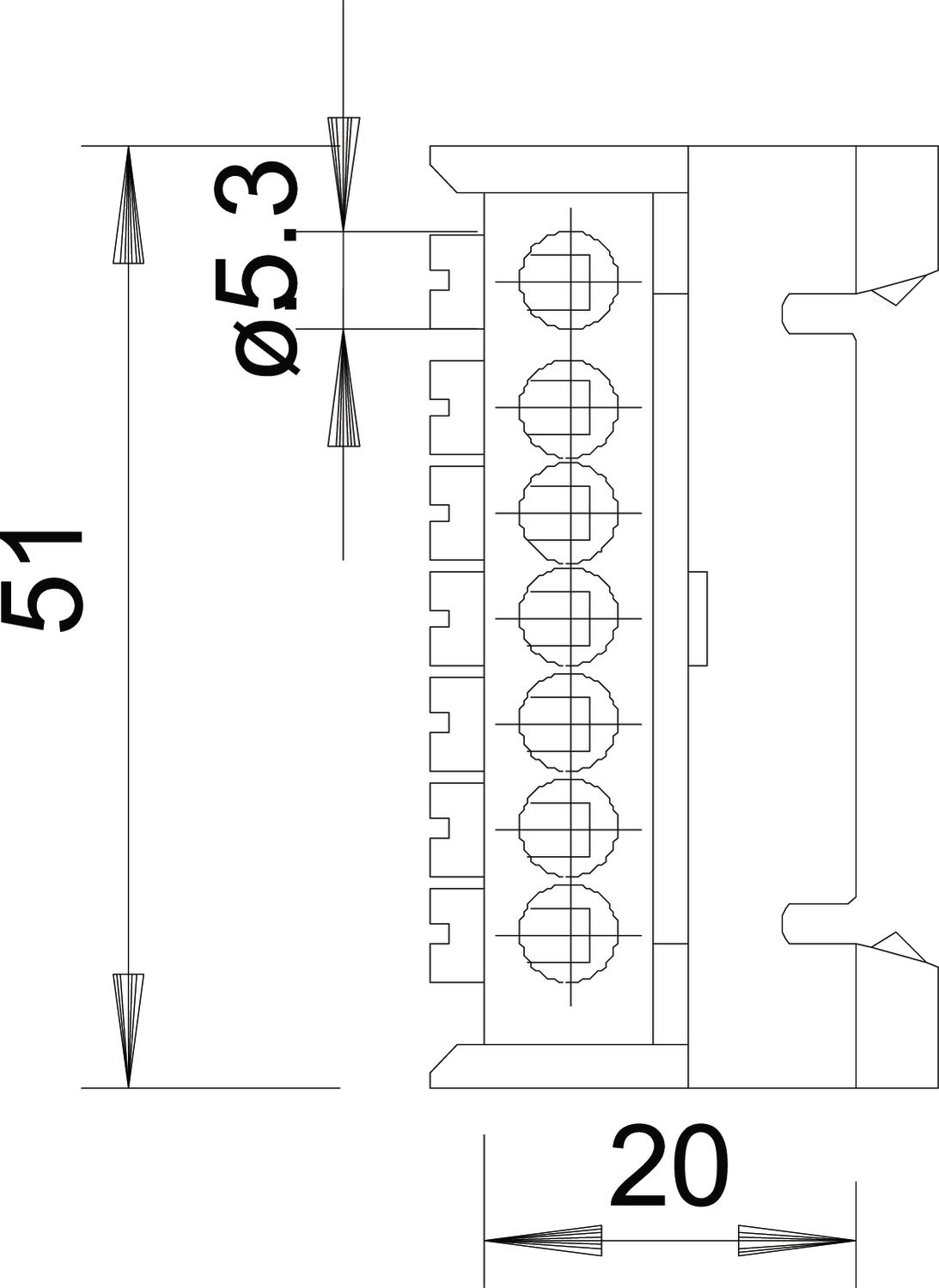

Height 20 mm
Length 51 mm
Material Polyamide
No. of terminals 7
Nominal cross-section, max. 16 mm²
Nominal cross-section, min. 10 mm²
Pole number 7
Suitable for flexible conductors no
Suitable for multi-wire conductors no
Suitable for solid conductors no
All types

All types

Types No. of terminals Nominal cross-section, min. Nominal cross-section, max. Item no. Quantity SSU
60 N 7x16 BL 7 10 mm² 16 mm² 2054000
10 piece
