Neutral conductor terminal, with screw contacts, 12 terminals 12 | 10 | 16
morepic-1 morepic-2

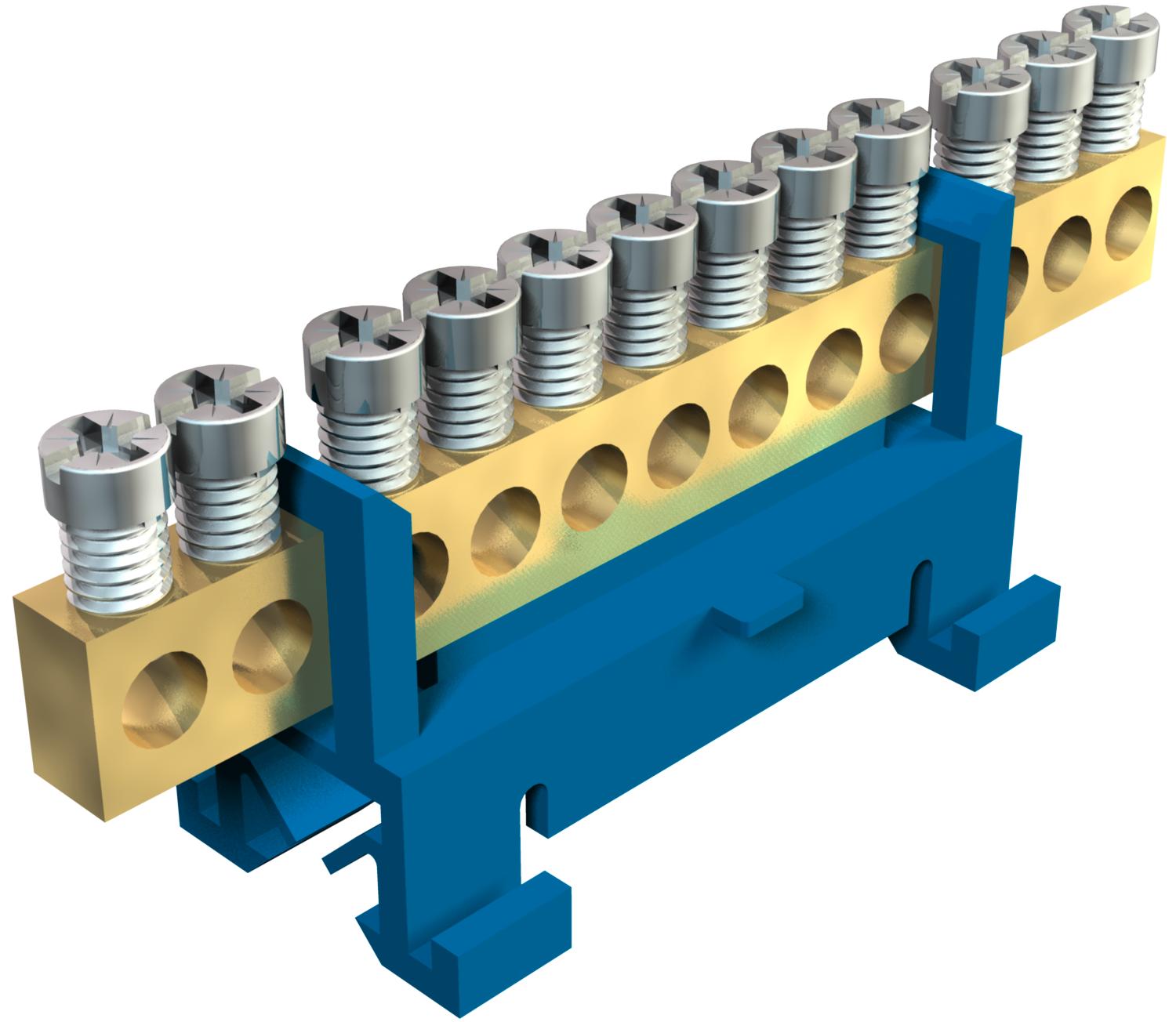

Neutral conductor terminal, with screw contacts, 12 terminals

Item no. 2054086 | EAN 4012195183310

2054086 / 60 N 12x16 BL
12
10 mm²
16 mm²
Product description
Product description
Neutral conductor connection terminal with 12 terminals up to 16 mm².

Clamping rail, brass, steel screws, electrogalvanised and transparently passivated, for snapping onto 35 mm hat rails to DIN EN 60715 - previously DIN EN 50022 - (transverse) or flat rails 10 x 2-2.5 mm (lengthwise).
  • Halogen-free; without chlorine, fluorine and bromine
  • Flame resistant 960 °C
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Closing plate required no
Colour Blue
Cross-section 12 terminals to 16 mm² mm²

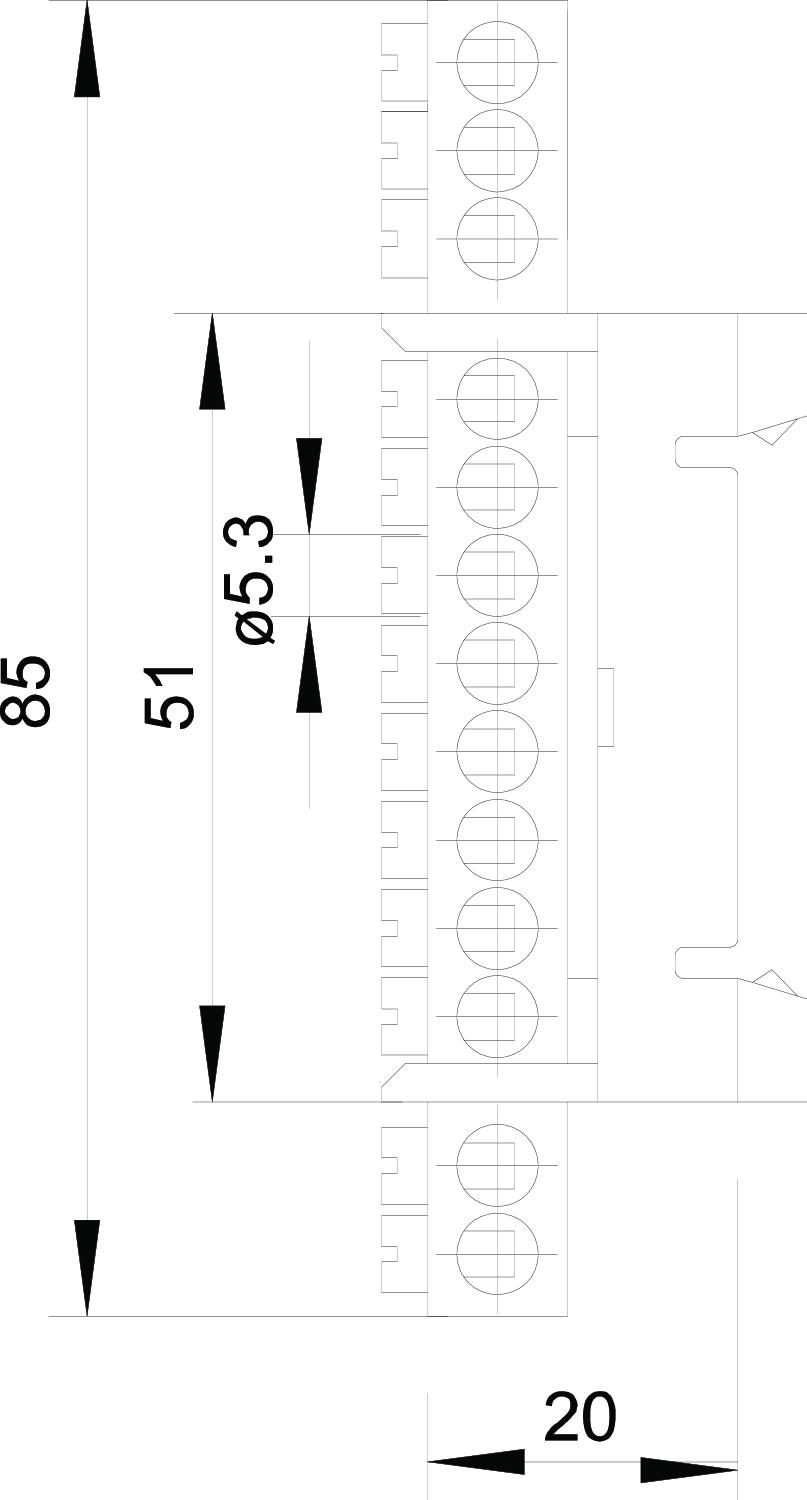

Dimension 12x16mm²
Explosion-tested version no
Height 20 mm
Length 85 mm
Material Polyamide
No. of terminals 12
Nominal cross-section, max. 16 mm²
Nominal cross-section, min. 10 mm²
Pole number 12
Suitable for flexible conductors no
Suitable for multi-wire conductors no
Suitable for solid conductors no
All types

All types

Types No. of terminals Nominal cross-section, min. Nominal cross-section, max. Item no. Quantity SSU
60 N 12x16 BL 12 10 mm² 16 mm² 2054086
10 piece
