Nail-Fix, without nail | 3,0 - 3,5
morepic-1 morepic-2

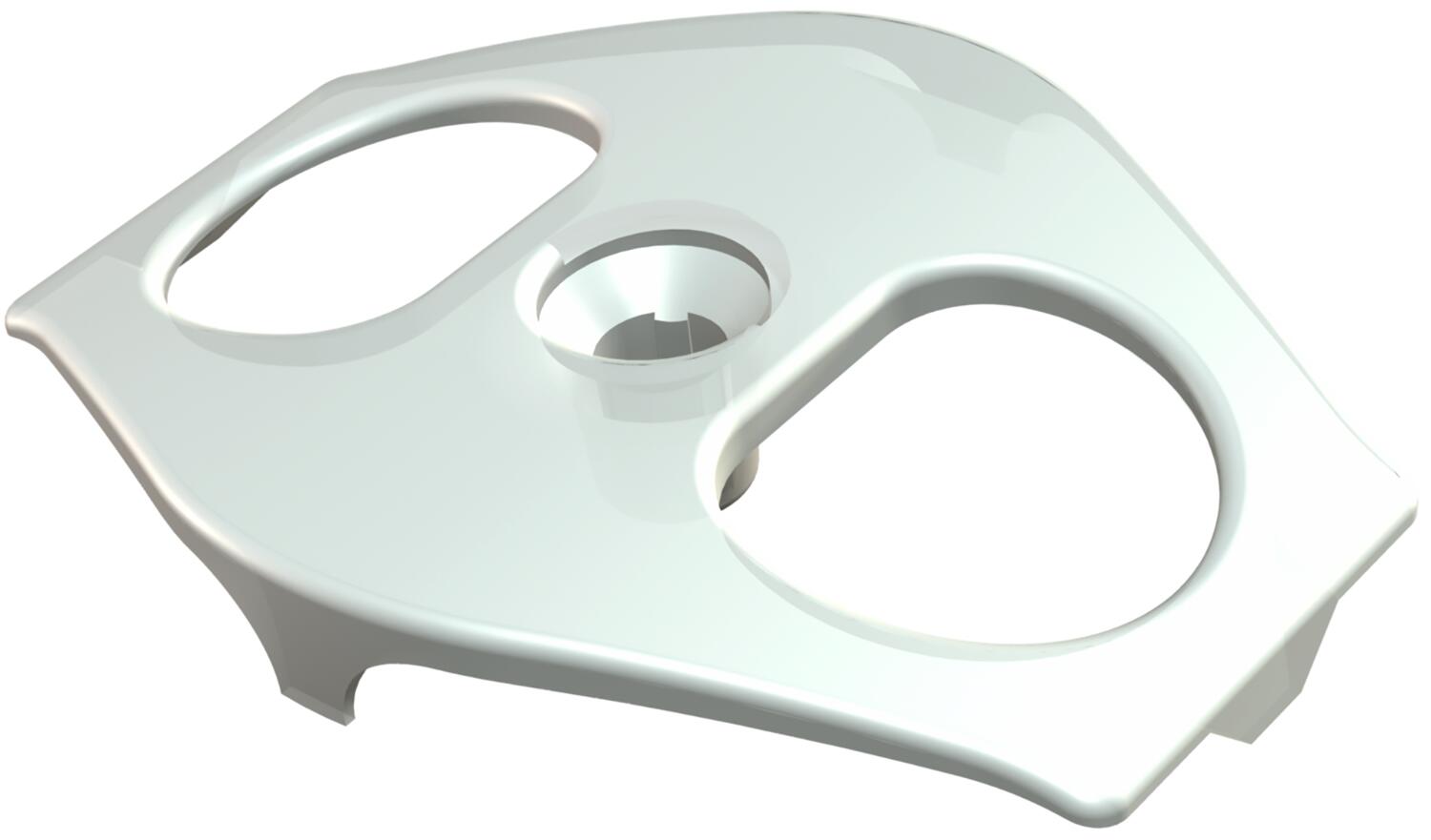

Nail-Fix, without nail

Item no. 2222809 | EAN 4012195698357

2222809 / 1996 O
3,0 - 3,5
Product description

Product description

Without nails for refitting Ø 3 mm and 3.5 mm steel nails to fix cables in masonry slots and on masonry for one or two cables NYM 3 x 1.5/2.5 mm² or one or two cables NYM 5 x 1.5/2.5 mm².
  • Halogen-free; without chlorine, fluorine and bromine
  • Communautés Européennes, EC declaration of conformity according to EC directives
Technical data

Technical data

Colour Transparent

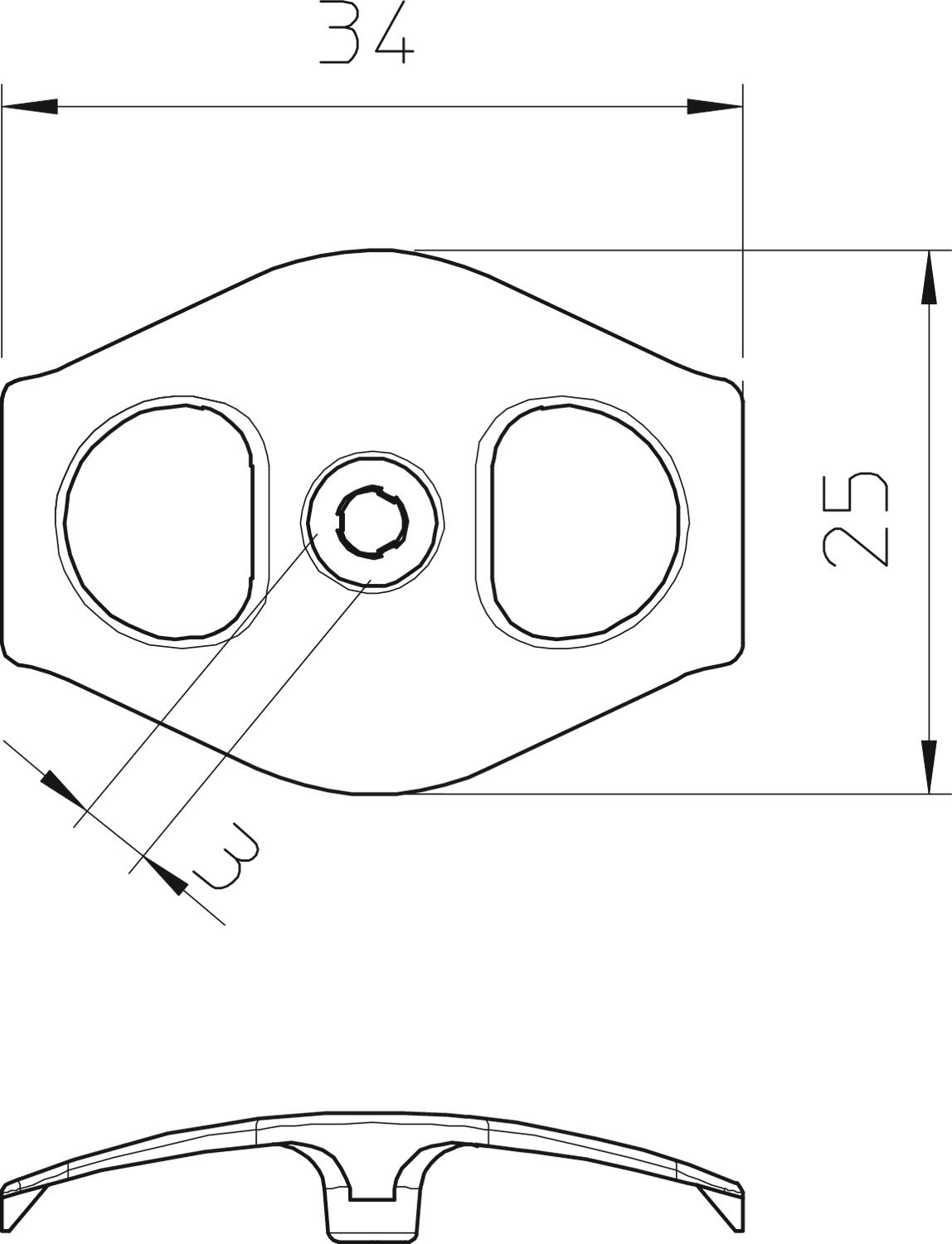

Dimension 34x25mm
Double clip yes
For nail diameter 3,0 - 3,5
Halogen-free yes
Hardened no
Impact-resistant no
Material Polypropylene
Shape Rectangular (for flat conductor)
With nail no

Dimensions

Nail diameter 3 mm
All types

All types

Types For nail diameter Item no. Quantity SSU
1996 O 3,0 - 3,5 2222809
100 piece
