- Product description
-

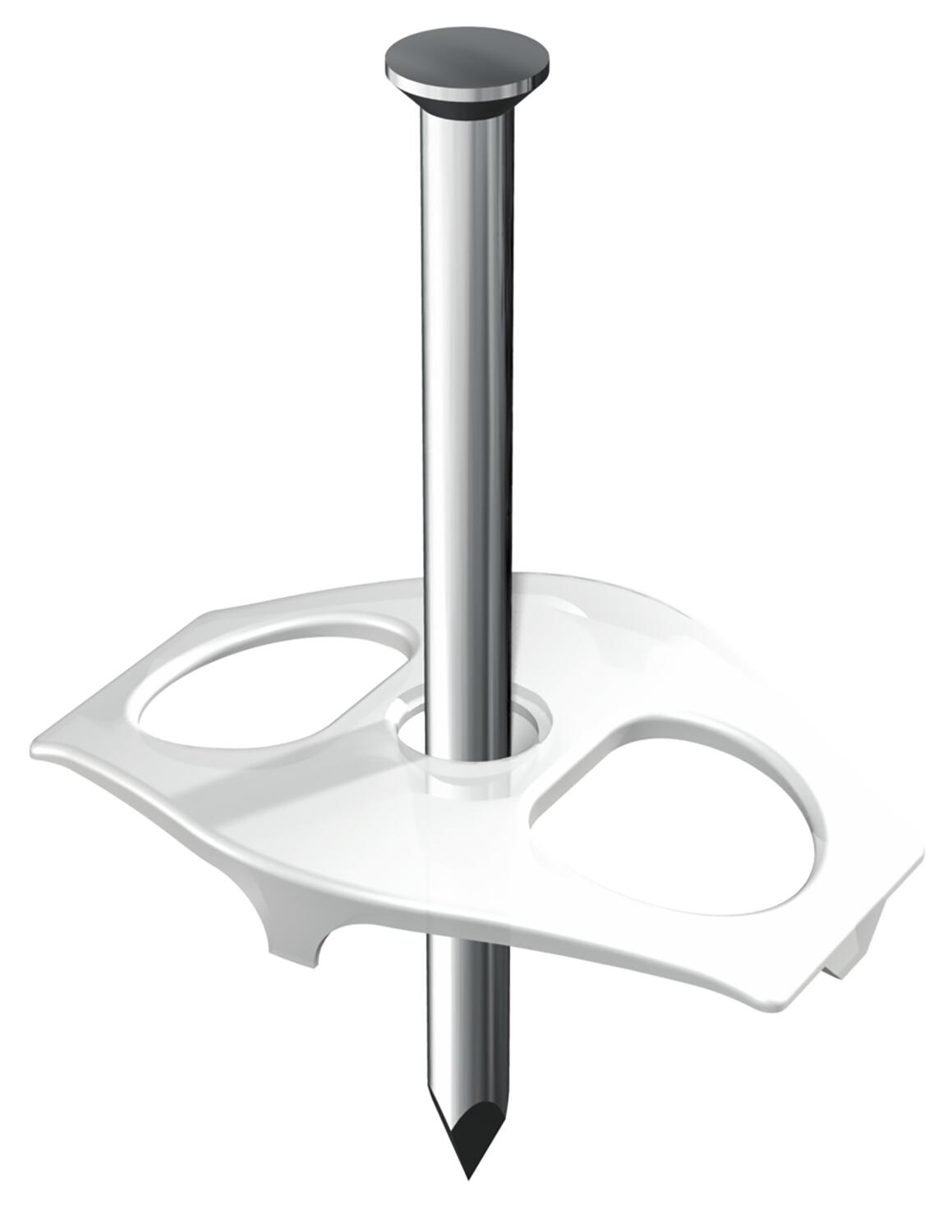

Product descriptionWith pre-mounted, galvanised steel nail Ø 3 mm or 3.5 mm to fix cables in masonry slots and on masonry for one or two cables NYM 3 x 1.5/2.5 mm² or one or two cables NYM 5 x 1.5/2.5 mm².
- Technical data
-
Technical data

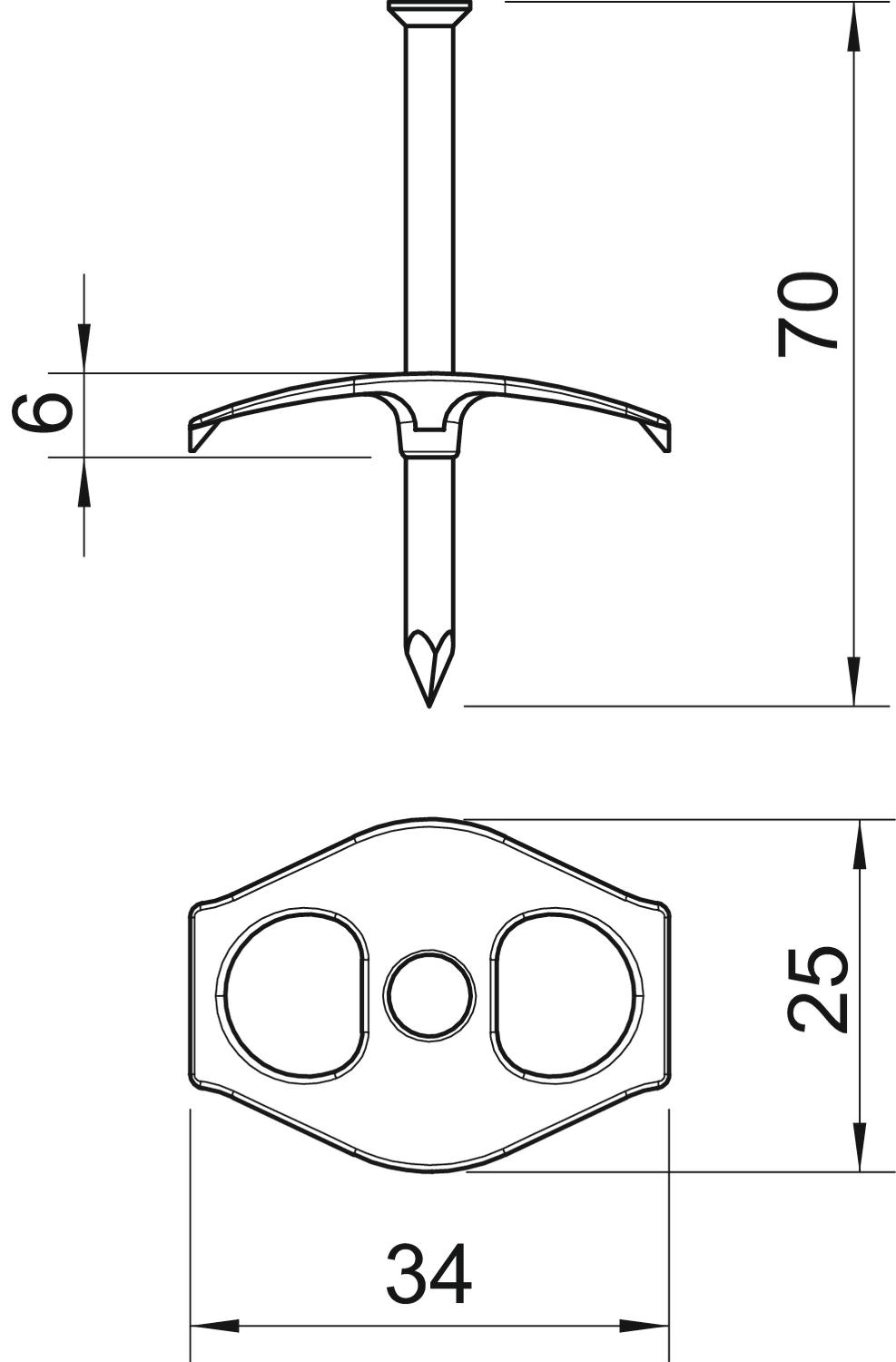

Colour Transparent Dimension 3,5x70mm Double clip yes For nail diameter 3,5 x 70 Halogen-free yes Hardened no Impact-resistant no Material Polypropylene Nail length 70 mm Shape Rectangular (for flat conductor) With nail yes - All types
- Downloads
-
Data sheet 1996 70 / 2222876 , 0.17MB , pdfEU declaration of conformity 1996 70 / 2222876 , 0.06MB , pdfREACH Declaration of conformity 1996 70 / 2222876 , 0.12MB , pdfRoHS Declaration of conformity 1996 70 / 2222876 , 0.13MB , pdf
