Mushroom-shaped air-termination with connectors
Item no. 5405769 | EAN 4012195428718
- Product description
-
Product description
• Mushroom-shaped air-termination from aluminium
• With pre-mounted cross-piece and hexagonal bolt M8 x 25, hot-dip galvanised steel
• For round conductor Rd 8-10 and flat conductor FL 30
- Technical data
-
Technical data
Connection Round conductor Dimension 50-60mm Fit Rd 8-10/ FL30 mm Material Steel Surface Hot-dip galvanised Version for Mushroom-shaped interceptor Dimensions

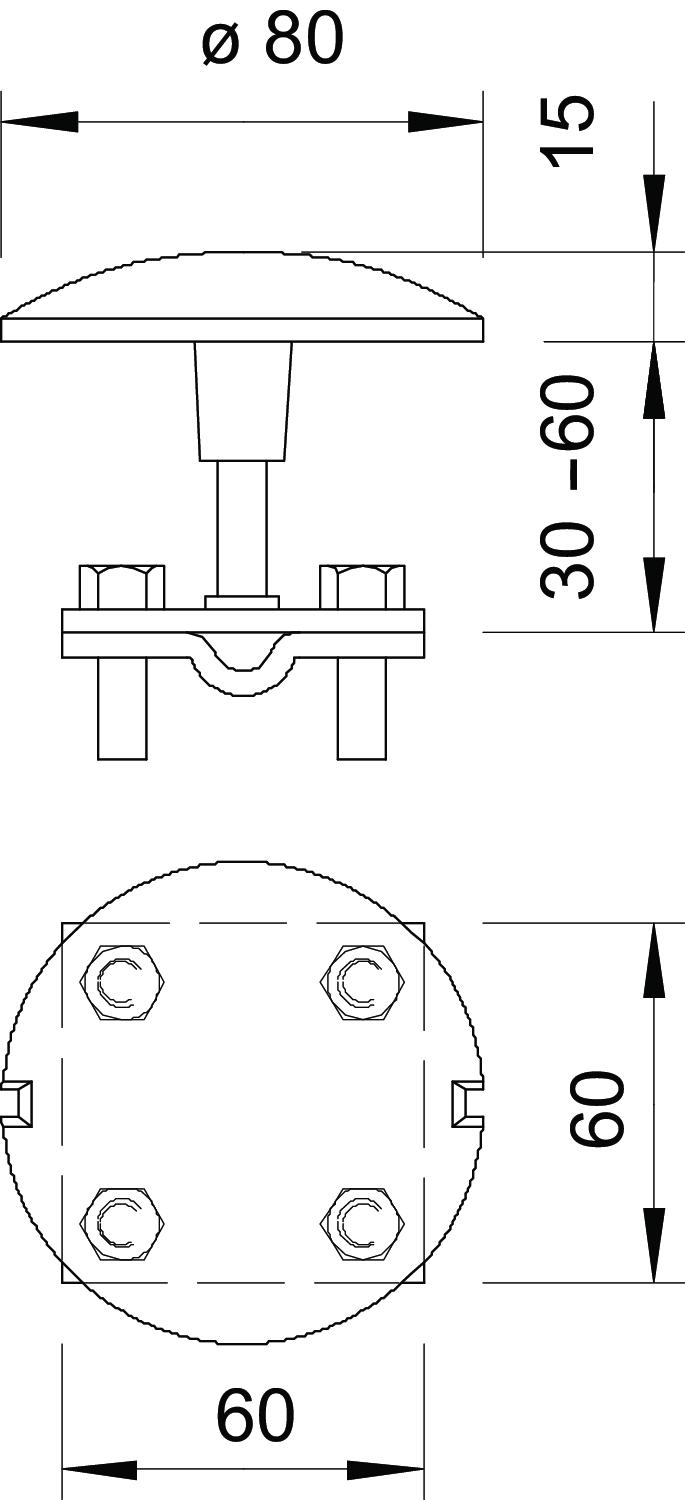

Dimension d min. 80 mm - All types
- Downloads
-
Data sheet 128 F / 5405769 , 0.20MB , pdfDeclaration of conformity 128 F / 5405769 , 0.06MB , pdf
