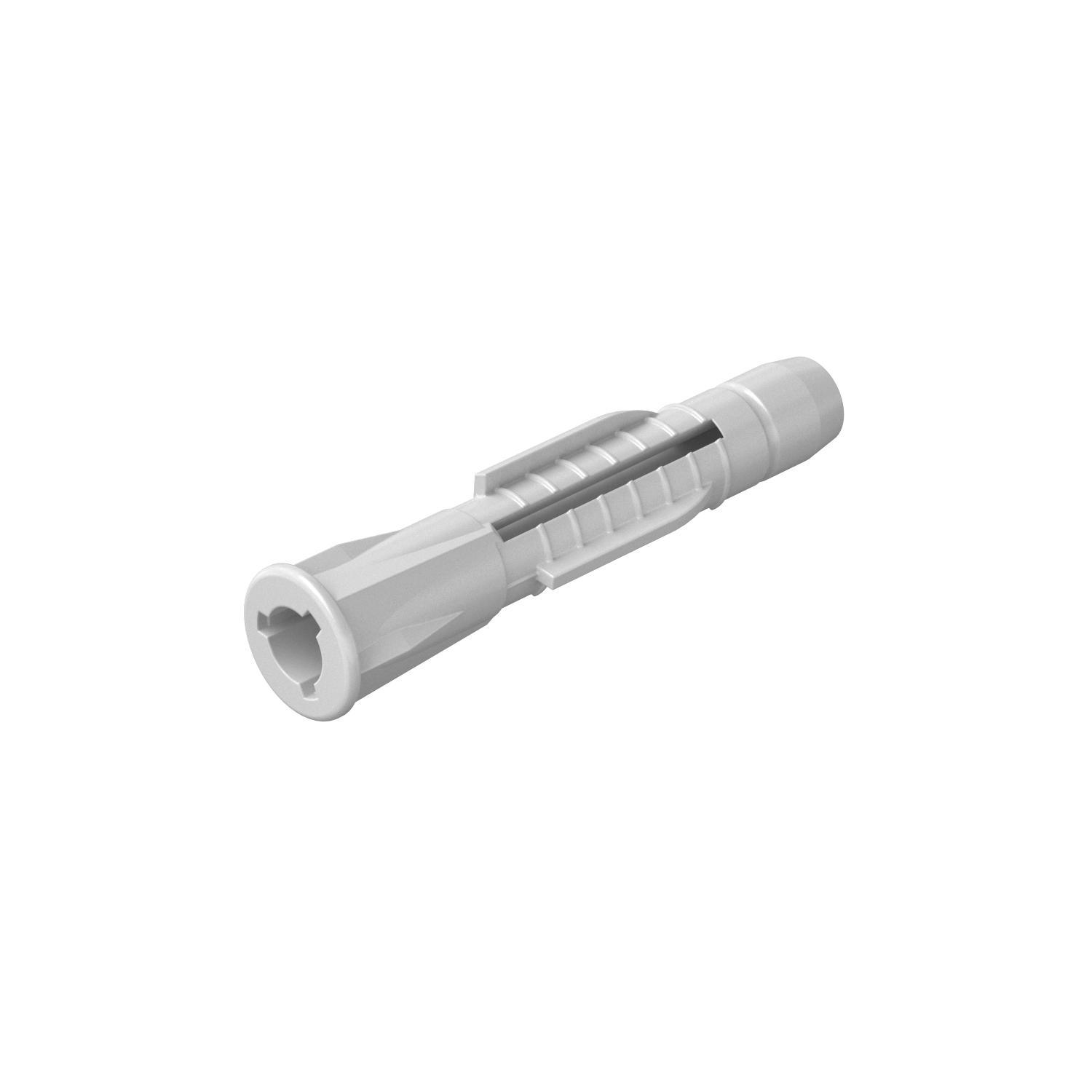

Multipurpose anchor

Item no. 2348122 | EAN 4012196788682

Item no. / Types

Length

Diameter

Drill hole diameter, min.

Product description

Product description

Also suitable as a cavity anchor, with collar to prevent slipping. 3 tabs take up the torque.

Required minimum screw length = anchor length + component thickness + 1 x screw Ø.

Withdrawal force applies to wood screws of the largest bolt diameter in concrete of class B25.

Our safety value recommendation: 5x

Technical data

Technical data

Colour	Light grey
Diameter	6 mm

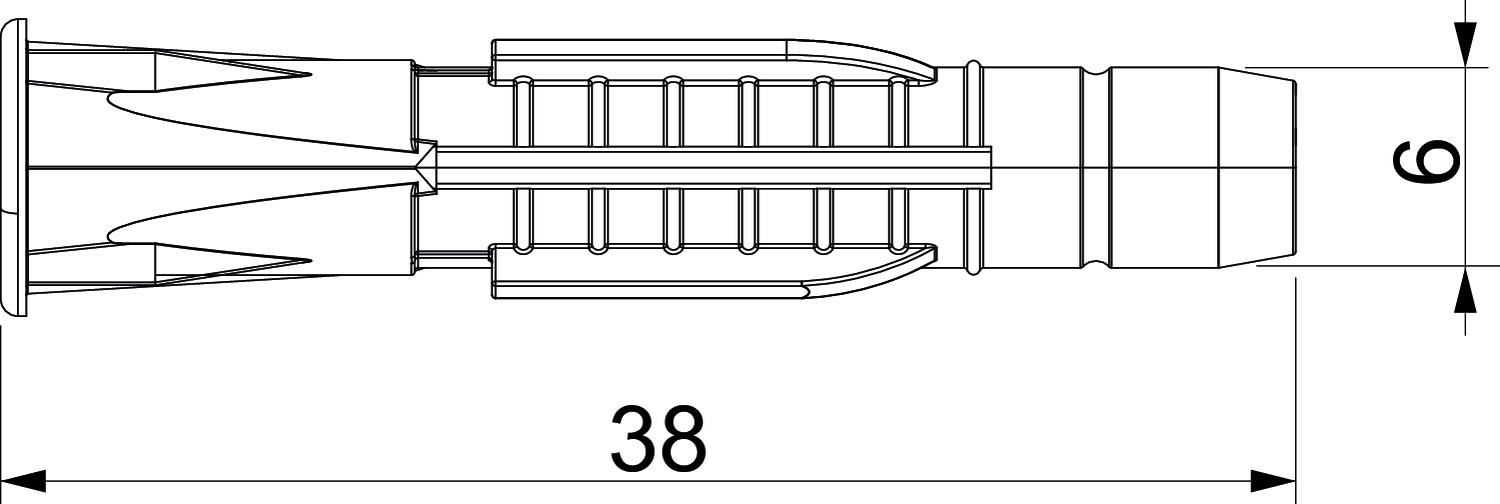

Dimension	6x38
Dimension D	6 mm
Dimension L	38 mm
Drill hole diameter, min.	6 mm

Material	Polyamide
Suitable for fastening with cable ties	no
Suitable for hexagonal wood screw	yes
Version for	Universal anchor
With bolts	no
Wood screws	4-5

All types

All types

Types	Length	Diameter	Drill hole diameter, min.	Item no.	Quantity	SSU
910 AZK 5x31	30 mm	5 mm	5 mm	2348120	piece	100 piece
910 AZK 6x38	-	6 mm	6 mm	2348122	piece	100 piece
910 AZK 8x51	-	8 mm	8 mm	2348124	piece	100 piece
910 AZK 10x61	-	10 mm	10 mm	2348126	piece	50 piece
910 AZK 12x71	-	12 mm	12 mm	2348128	piece	25 piece
