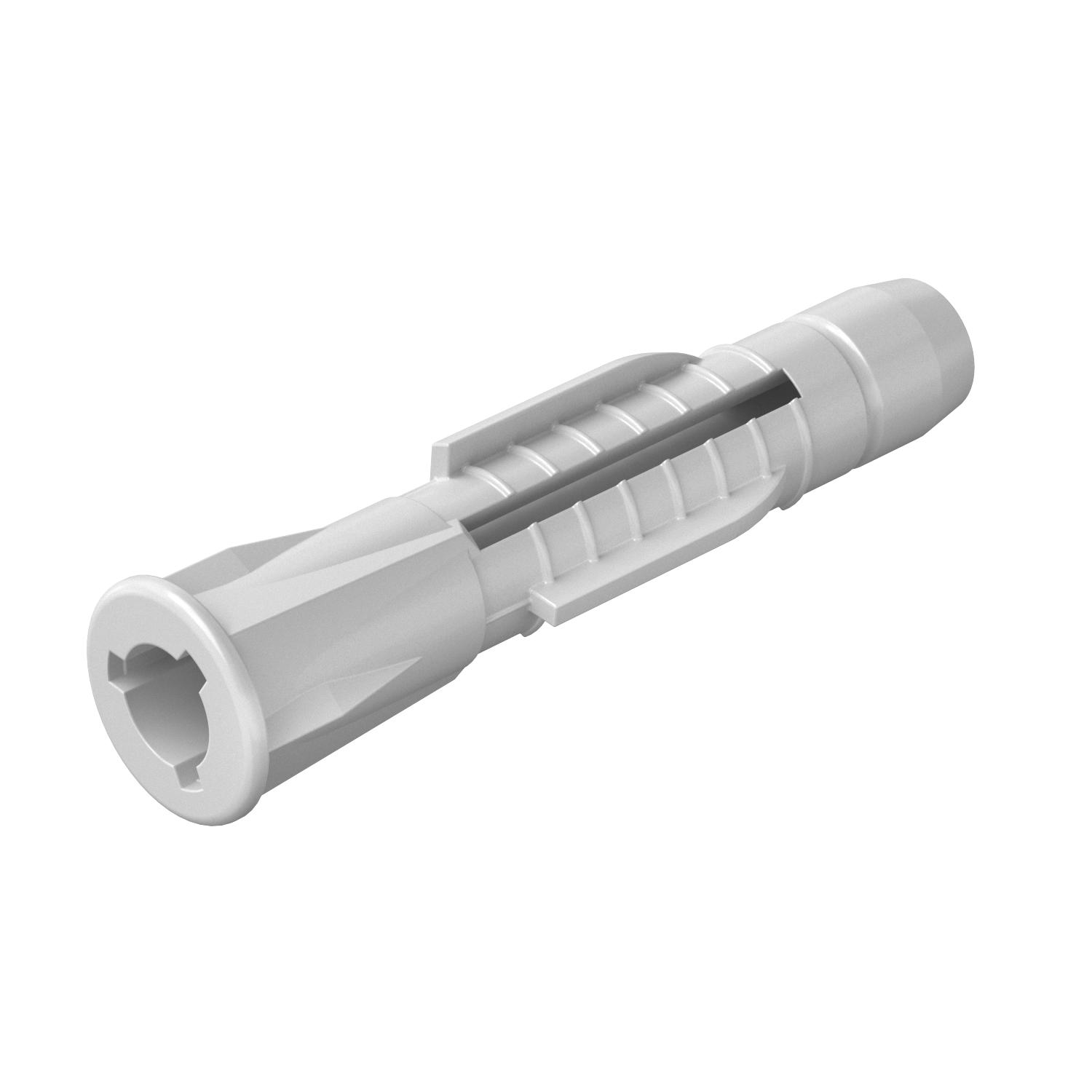

Multipurpose anchor

Item no. 2348128 | EAN 4012196788712

Item no. / Types

Length

Diameter

Drill hole diameter, min.

Product description

Product description

Also suitable as a cavity anchor, with collar to prevent slipping. 3 tabs take up the torque.

Required minimum screw length = anchor length + component thickness + 1 x screw Ø.

Withdrawal force applies to wood screws of the largest bolt diameter in concrete of class B25.

Our safety value recommendation: 5x

Technical data

Technical data

Colour	Light grey
Diameter	12 mm
Dimension	12x71
Drill hole diameter, min.	12 mm
Material	Polyamide

Suitable for fastening with cable ties	no
Suitable for hexagonal wood screw	yes
Version for	Universal anchor
With bolts	no
Wood screws	8-10

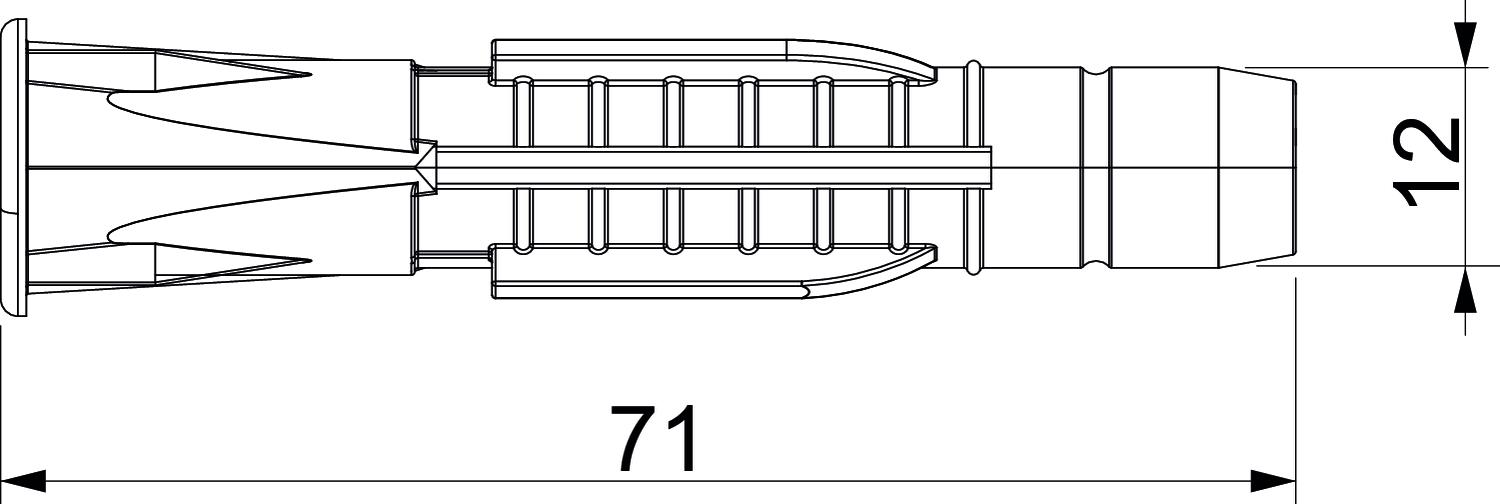

Dimensions

Dimension D	12 mm

Dimension L	71 mm

All types

All types

Types	Length	Diameter	Drill hole diameter, min.	Item no.	Quantity	SSU
910 AZK 5x31	30 mm	5 mm	5 mm	2348120	piece	100 piece
910 AZK 6x38	-	6 mm	6 mm	2348122	piece	100 piece
910 AZK 8x51	-	8 mm	8 mm	2348124	piece	100 piece
910 AZK 10x61	-	10 mm	10 mm	2348126	piece	50 piece
910 AZK 12x71	-	12 mm	12 mm	2348128	piece	25 piece
