Multifunctional connector FT
Item no. 6225738 | EAN 4012196443338
- Product description
-

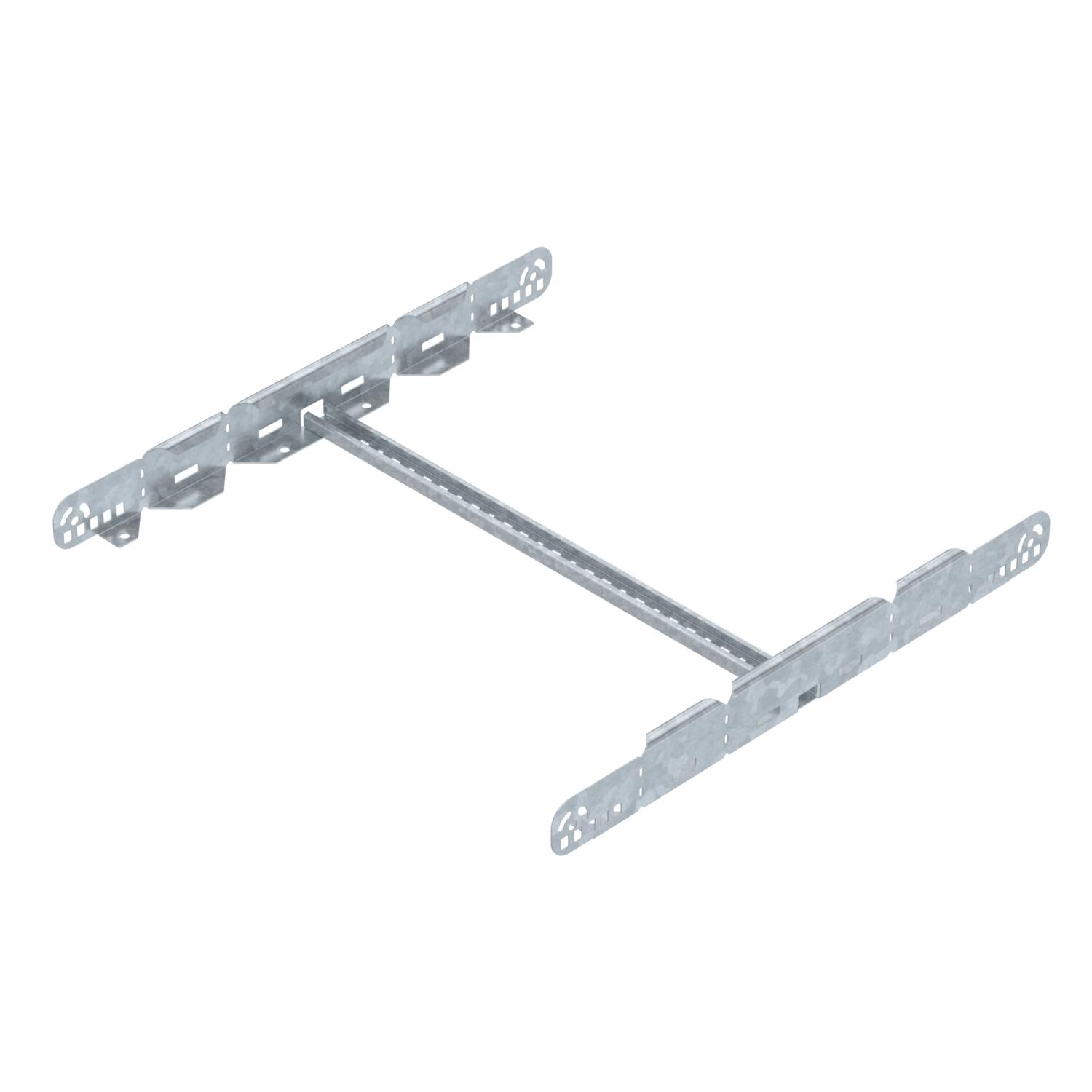

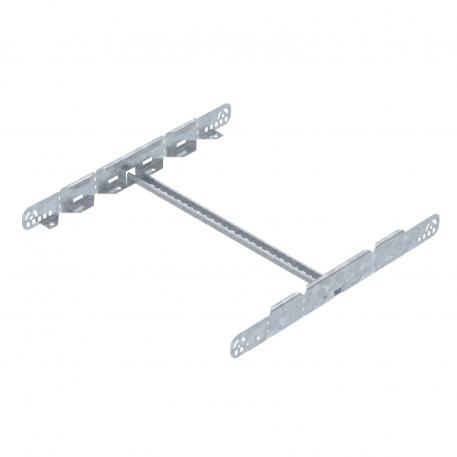

Product descriptionMultifunctional connector for joining cable ladders with a side height of 60 mm. Symmetrical and asymmetrical reductions, infinitely-adjustable bends between 0–60° and add-on tees can be created.
-
- Technical data
-
Technical data

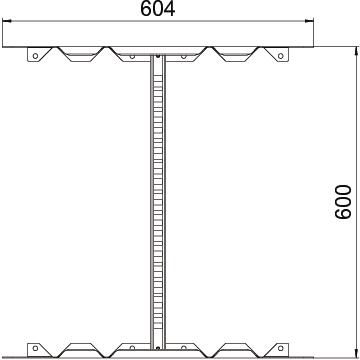

Adjustable connector, horizontal no Articulated connector, vertical no Colour zinc Connection type Screw connector Dimension 60x600 Dimension B 600 mm Height 60 mm Length 604 mm Maintain electrical functions no Material Steel Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable support system width, max. 600 mm Suitable for cable support system width, min. 600 mm Suitable for cable tray no Suitable for cable tray system height 60 mm Suitable for mesh cable tray no Surface Hot-dip galvanised Version for Straight and angle connector Width 600 mm - All types
-
All types
- Downloads
-
Data sheet LMFV 660 FT / 6225738 , 0.21MB , pdfEU declaration of conformity LMFV 660 FT / 6225738 , 0.10MB , pdfUK Declaration of Conformity LMFV 660 FT / 6225738 , 0.09MB , pdfREACH Declaration of conformity LMFV 660 FT / 6225738 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
