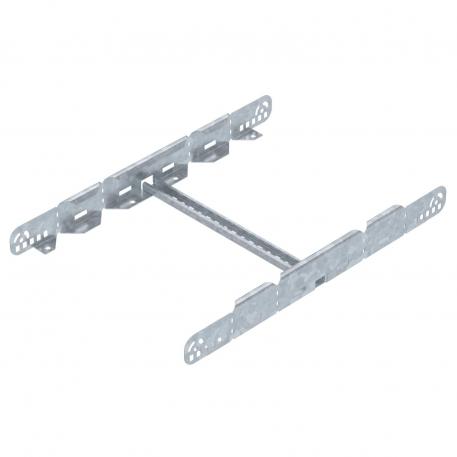

Multifunctional connector FT
Item no. 6225734 | EAN 4012196443314
- Product description
-
Product description
Multifunctional connector for joining cable ladders with a side height of 60 mm. Symmetrical and asymmetrical reductions, infinitely-adjustable bends between 0–60° and add-on tees can be created.
-
- Technical data
-
Technical data

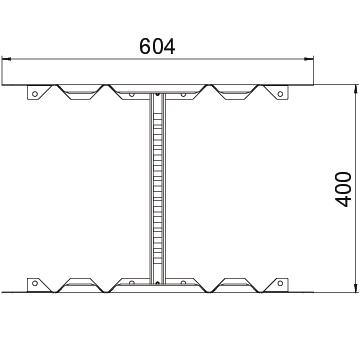

Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screw connector Dimension 60x400 Dimension B 400 mm Height 60 mm Length 604 mm Maintain electrical functions no Material Steel Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable support system width, max. 400 mm Suitable for cable support system width, min. 400 mm Suitable for cable tray no Suitable for cable tray system height 60 mm Suitable for mesh cable tray no Surface Hot-dip galvanised Version for Straight and angle connector Width 400 mm - All types
-
All types
