Multifunctional connector FS
Item no. 6225750 | EAN 4012196443345
- Product description
-

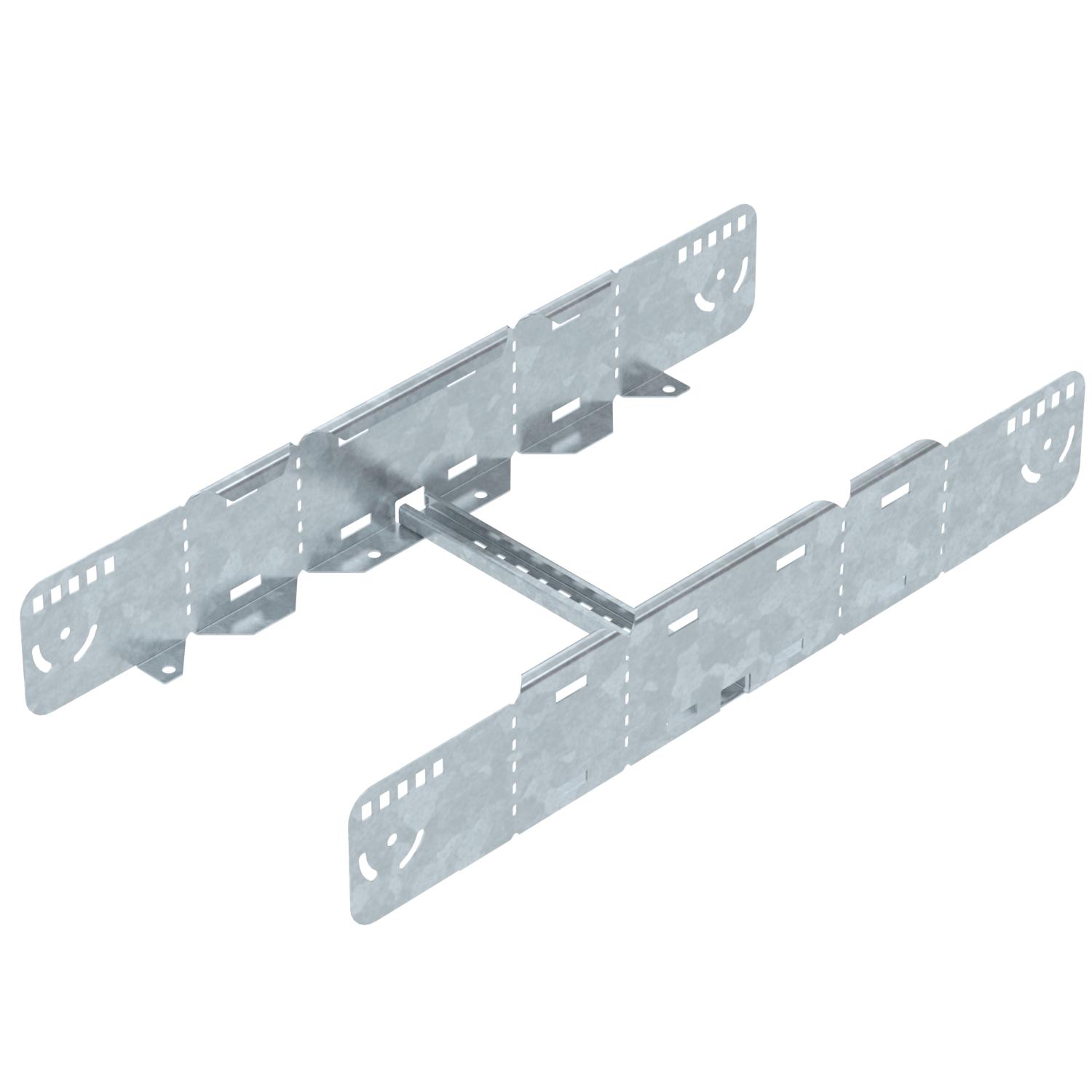

Product descriptionMultifunctional connector for joining cable ladders with a side height of 110 mm. Symmetrical and asymmetrical reductions, infinitely-adjustable bends between 0–60° and add-on tees can be created.
-
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Colour zinc Connection type Screw connector Dimension 110x200 Dimension B 200 mm Height 110 mm Length 680 mm Maintain electrical functions no Material Steel Plate thickness 1,5 mm Rustproof steel, pickled no Suitable for cable ladder yes Suitable for cable support system width, max. 200 mm Suitable for cable support system width, min. 200 mm Suitable for cable tray no Suitable for cable tray system height 110 mm Suitable for mesh cable tray no Surface Strip galvanized Version for Straight and angle connector Width 200 mm - All types
-
All types
- Downloads
-
Data sheet LMFV 1120 FS / 6225750 , 0.19MB , pdfEU declaration of conformity LMFV 1120 FS / 6225750 , 0.10MB , pdfUK Declaration of Conformity LMFV 1120 FS / 6225750 , 0.09MB , pdfREACH Declaration of conformity LMFV 1120 FS / 6225750 , 0.12MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdf
