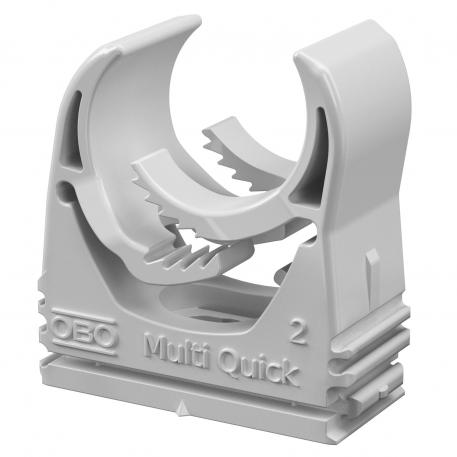

Multi-Quick clip 18.5 | 22.5 | Light grey; RAL 7035

Multi-Quick clip

Item no. 2153114 | EAN 4012195880998

Item no. / Types

Clamping range D, min.

Clamping range D, max.

Colour	Light grey; RAL 7035

Product description

Product description

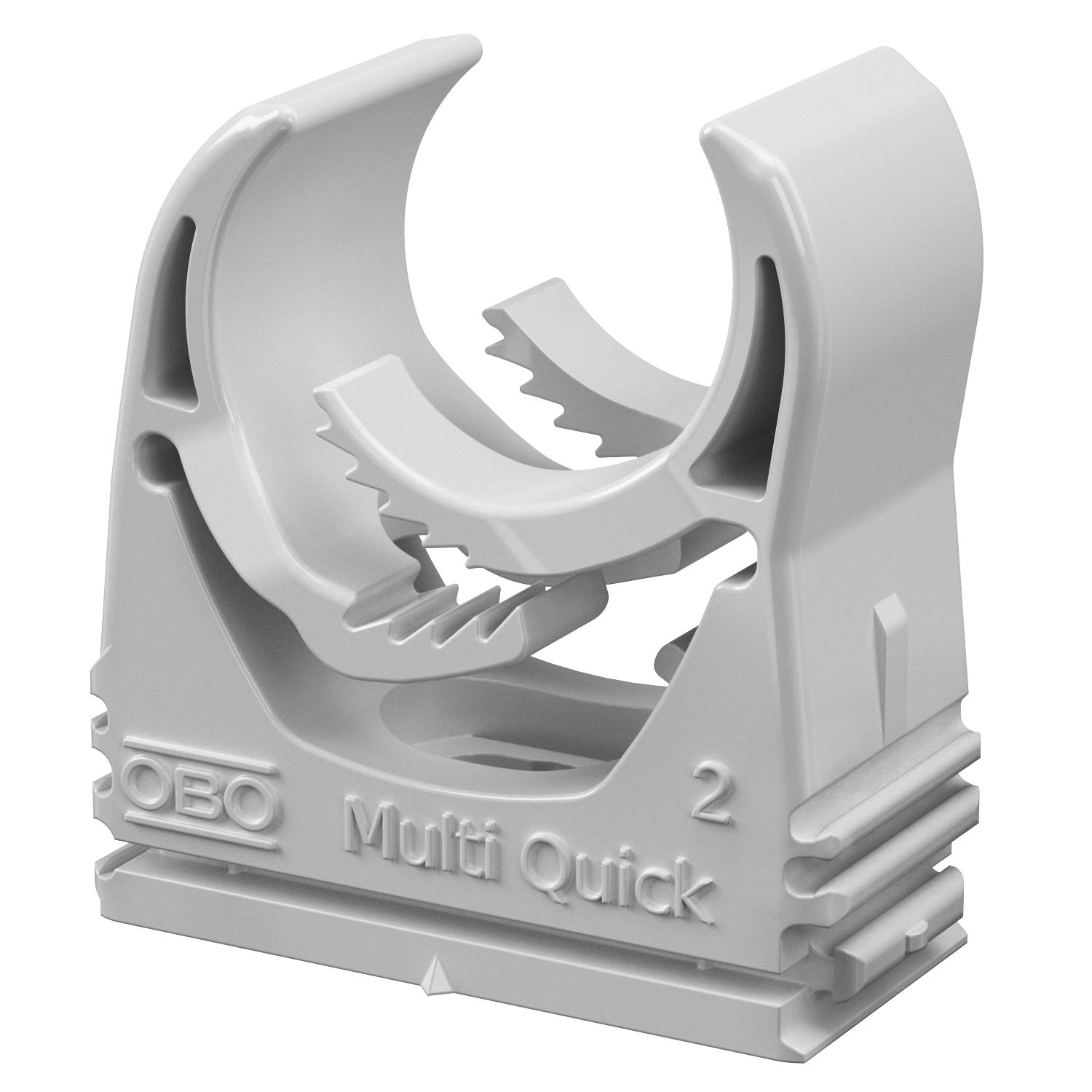

Flush-mounted clip to accept metric and PG pipes and Quick Pipe electrical installation pipes. Flexible clamping range of several millimetres. Universal fastening options on walls and ceilings and usable in a profile rail, both in indoor and protected outdoor areas. Toolless pipe mounting. Can also be arranged with OBO Quick clip or starQuick clip.

Technical data

Technical data

Clamping range D, max.	22,5 mm
Clamping range D, min.	18,5 mm
Closed	no
Colour	Light grey; RAL 7035

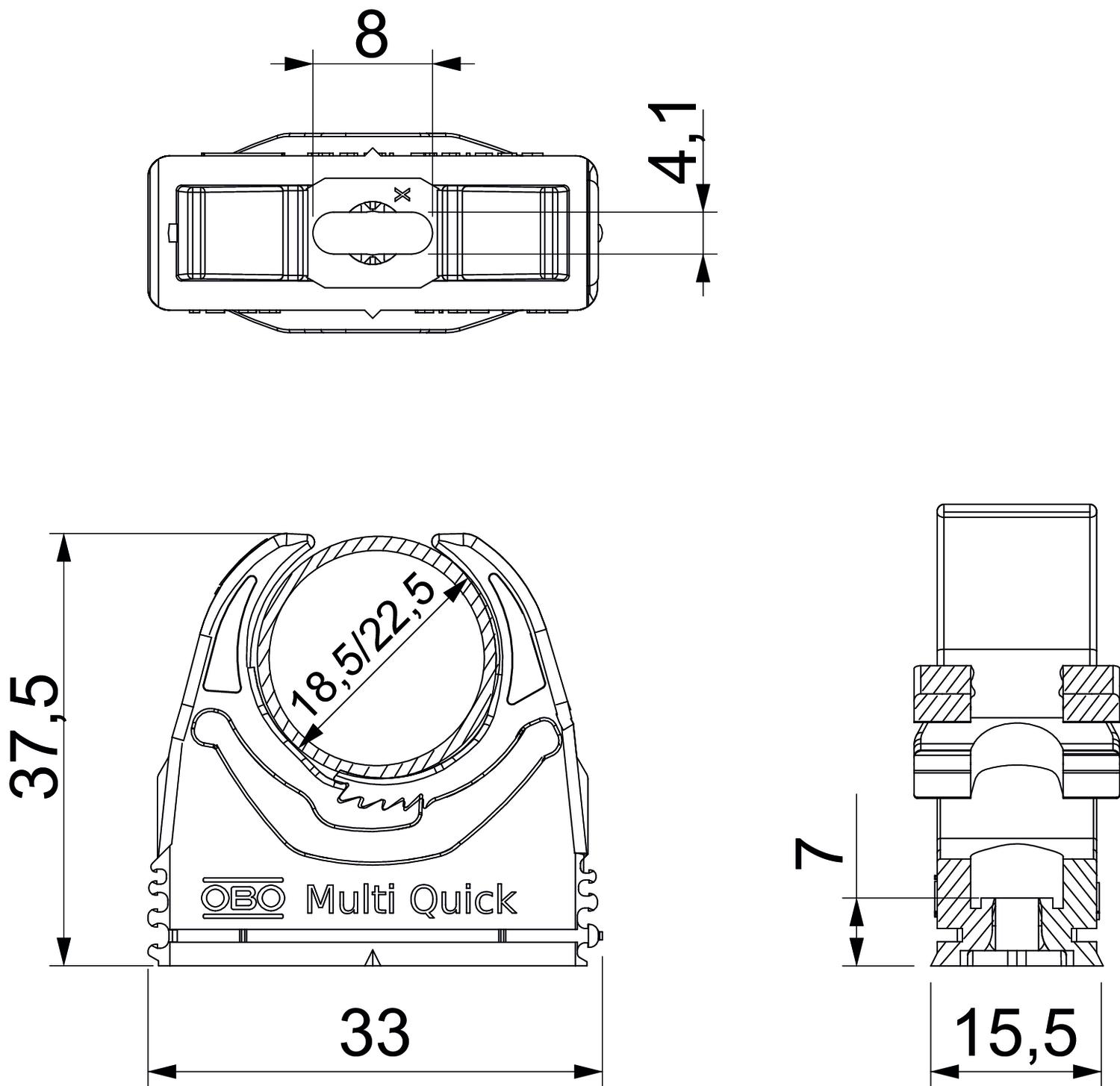

Dimension	18,5-22,5mm
Dimension A	33 mm
Dimension B	15,5 mm
Dimension E	8 mm
Dimension F	4,1 mm
Dimension h	7 mm

Dimension H	37,5 mm
Expandable	yes
Fastening type	Screw hole
Flame-resistant	acc. to VDE 0471/DIN 695 Part 2-1, test temperature 650°C
Halogen-free	yes
Material	Polyamide
Number of cables/pipes	1
Pull-out value	50 N
UV-resistant	no
With inlay	no

All types

All types

Types	Clamping range D, min.	Clamping range D, max.	Colour	Item no.	Quantity	SSU
M-Quick 15-19LGR	15 mm	19 mm	Light grey; RAL 7035	2153106	piece	100 piece
M-Quick 18-22LGR	18.5 mm	22.5 mm	Light grey; RAL 7035	2153114	piece	100 piece
M-Quick 25-28LGR	25 mm	28.5 mm	Light grey; RAL 7035	2153130	piece	50 piece
M-Quick 31-37LGR	31 mm	37 mm	Light grey; RAL 7035	2153157	piece	25 piece
