MS5030 mounting rail, slot 22 mm, FT, perforated 2000 | 50 | 30 | 3 | Hot-dip galvanised

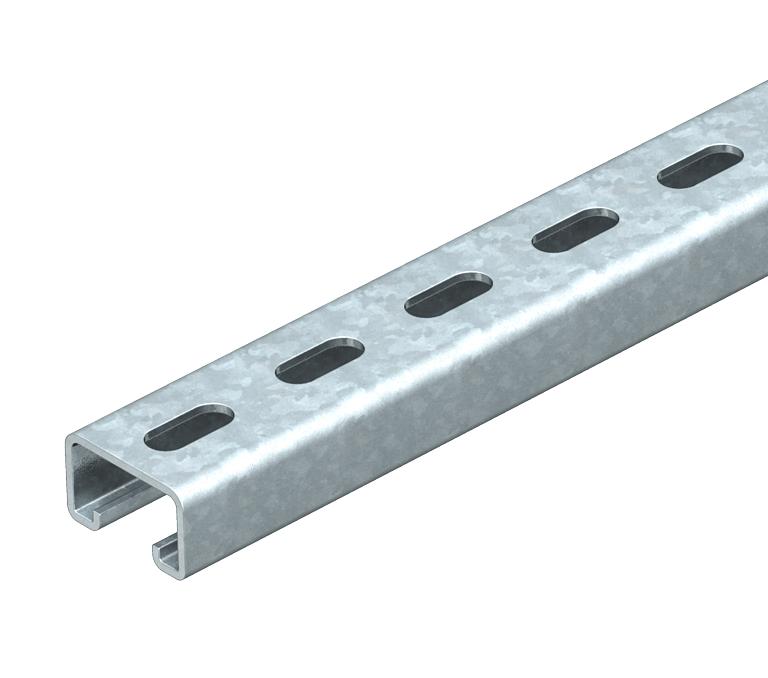

MS5030 mounting rail, slot 22 mm, FT, perforated

Item no. 1121464 | EAN 4012195049210

Item no. / Types

Length

Width	50 mm

Height	30 mm

Material thickness	3 mm

Surface	Hot-dip galvanised

Product description

Product description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

Technical data

Breakable	no
Dimension	2000x50x30
Dimension L	2000 mm
Drill hole spacing, centre	50 mm
Height	30 mm
Length	2000 mm
Maintain electrical functions	yes
Material	Steel
Material thickness	3 mm
Profile shape	C profile
Slot width	22 mm

Static value A	3,39 cm²
Static value ly	3,99 cm
Static value lz	13,11 cm
Static value Wy	3,95 cm²
Static value Wz	6,38 cm²
Surface	Hot-dip galvanised
Type of perforation	Perforated back
Version for	Single profile
Width	50 mm
With perforation	yes
With toothing	no

All types

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MS5030P1000FT	1000 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121448	m	1 m
MS5030P2000FT	2000 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121464	m	2 m
MS5030P3000FT	3000 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121466	m	3 m
MS5030P6000FT	6000 mm	50 mm	30 mm	3 mm	Hot-dip galvanised	1121472	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Slide nut ZL	MS50SN M10 ZL	1147164	piece	50 piece
Hook-head screw ZL	MS50HB M10x30 ZL	1148218	piece	50 piece
Clamp clip, single, FT plastic pressure trough	2056U 22 FT	1175211	piece	100 piece
