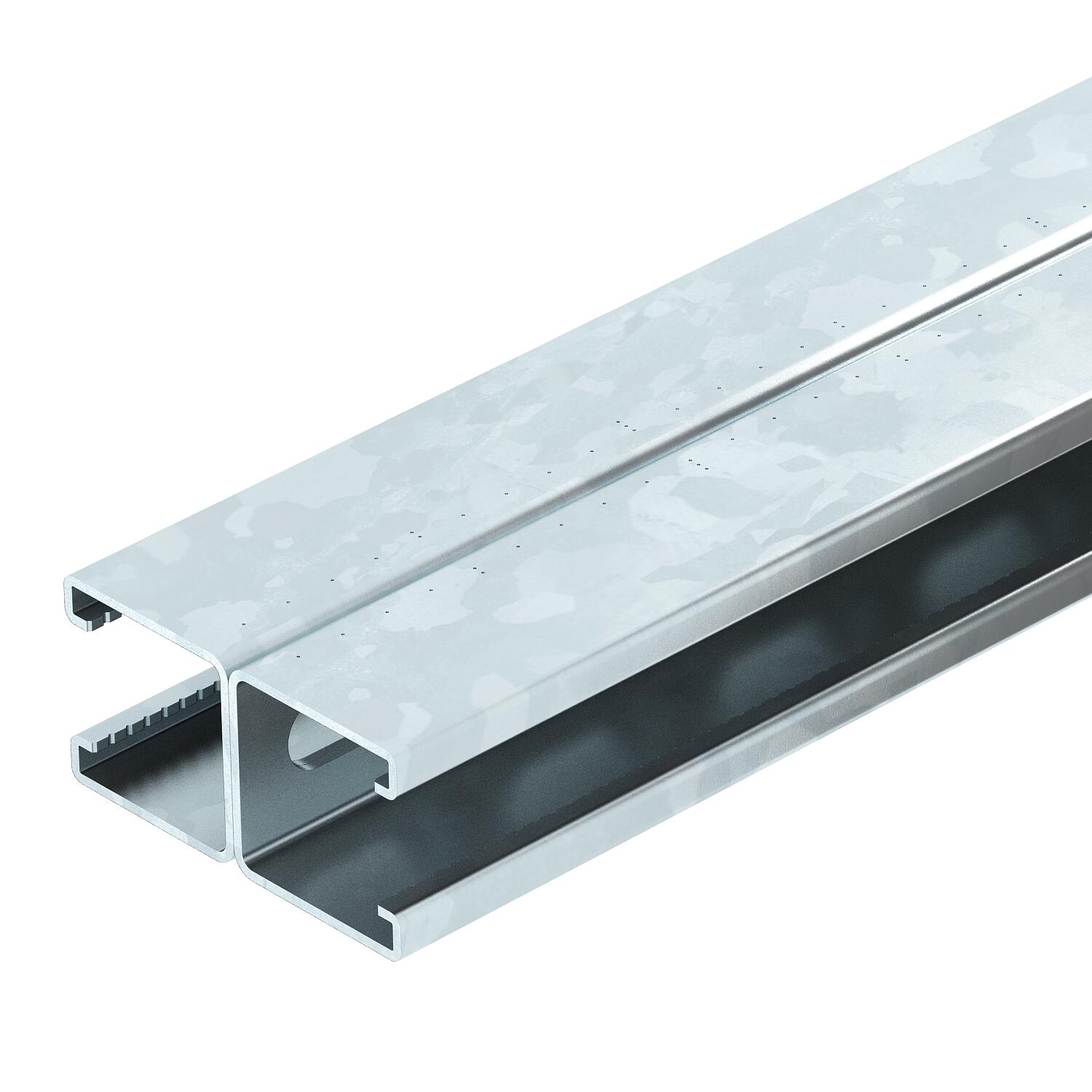

MS4182 mounting rail, slot 22 mm, double, FT, perforated

Item no. 1122673 | EAN 4012195698029

41 mm
82 mm
2 mm
Hot-dip galvanised
Product description

Product description

Heavy-duty profile/mounting rail with continuous perforation in base, slot width 22 mm. Double version, i.e. two profile rails are interconnected on the base (clinched).
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Slot width 22 mm
Technical data

Technical data

Breakable no

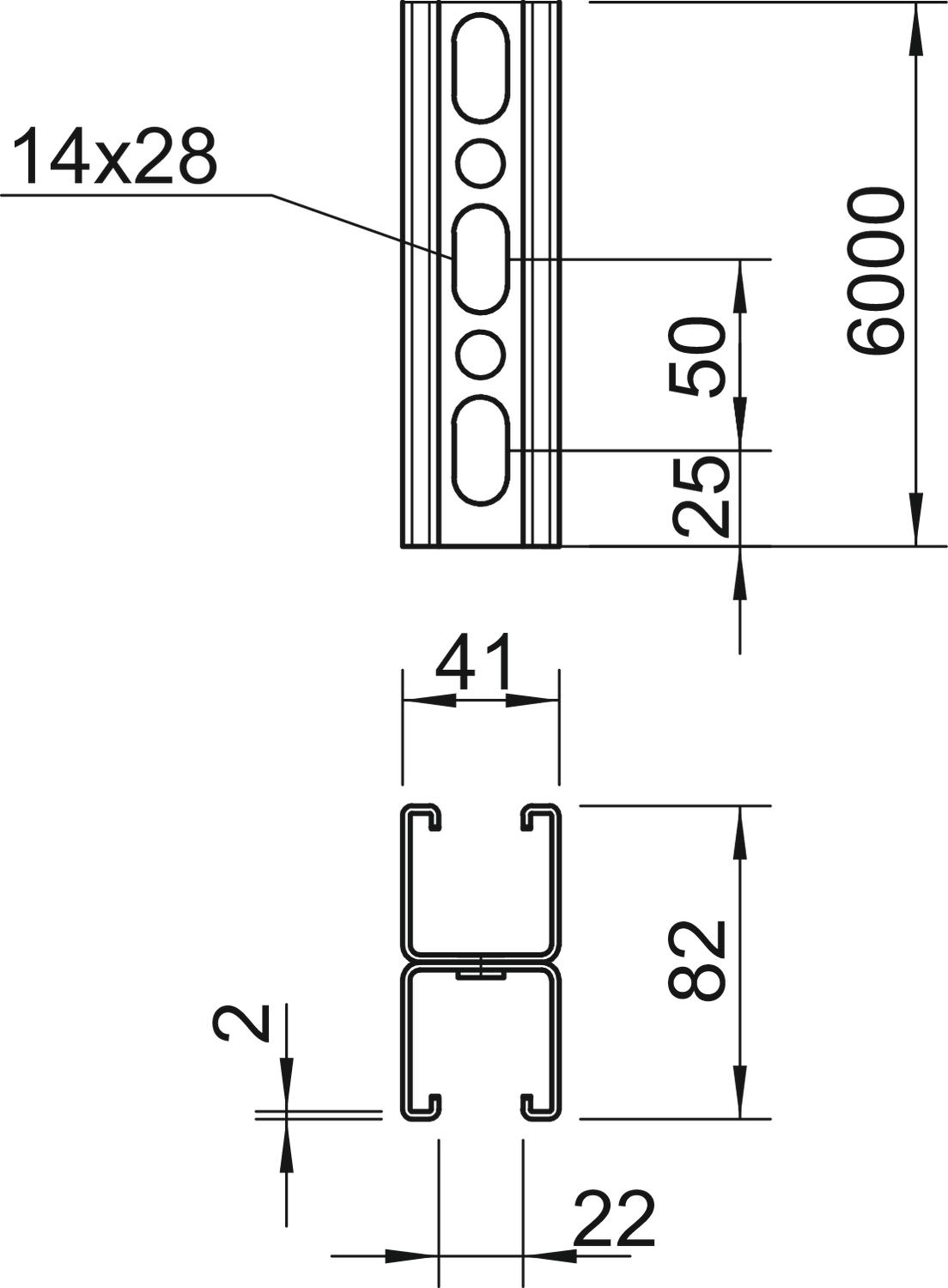

Dimension 6000x41x82
Dimension L 6000 mm
Height 82 mm
Hole size 14x28 mm
Length 6000 mm
Maintain electrical functions no
Material Steel
Material thickness 2 mm
Profile shape C profile
Slot width 22 mm
Static value A 4,9 cm²
Static value ly 30,69 cm
Static value lz 15,11 cm
Static value Wy 2,51 cm²
Static value Wz 2,69 cm²
Surface Hot-dip galvanised
Type of perforation Perforated bar
Version for Double profile
Width 41 mm
With toothing yes
All types

All types

Types Length Width Height Material thickness Surface Item no. Quantity SSU
MS4182P3000FT 3000 mm 41 mm 82 mm 2 mm Hot-dip galvanised 1122671
3 m
MS4182P6000FT 6000 mm 41 mm 82 mm 2 mm Hot-dip galvanised 1122673
6 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Slide nut ZL Slide nut ZL MS41SN M10 ZL 1147214
50 piece
Hammer-head bolt ZL Hammer-head bolt ZL MS41HB M10x30 ZL 1148322
50 piece
Clamp clip, single, FT plastic pressure trough Clamp clip, single, FT plastic pressure trough 2056U 22 FT 1175211
100 piece
