MS4141 mounting rail, slot 22 mm, FT, perforated 900 | 41 | 41 | 2.5 | Hot-dip galvanised

MS4141 mounting rail, slot 22 mm, FT, perforated

Item no. 1122584 | EAN 4012195487159

Item no. / Types

Length

Width	41 mm

Height	41 mm

Material thickness	2.5 mm

Surface	Hot-dip galvanised

Product description

Product description

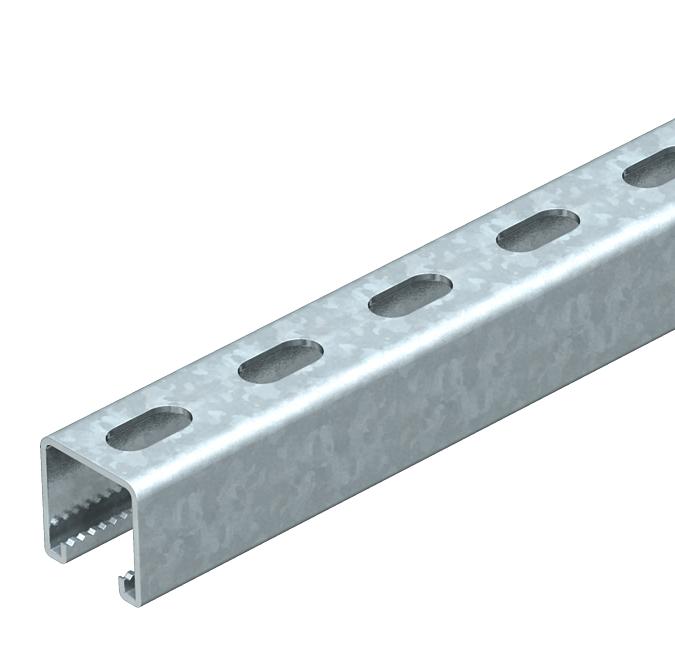

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

Technical data

Breakable	no
CO₂ Footprint (GWP) Cradle-to-Gate	5,464 kg CO₂e / 1 Piece

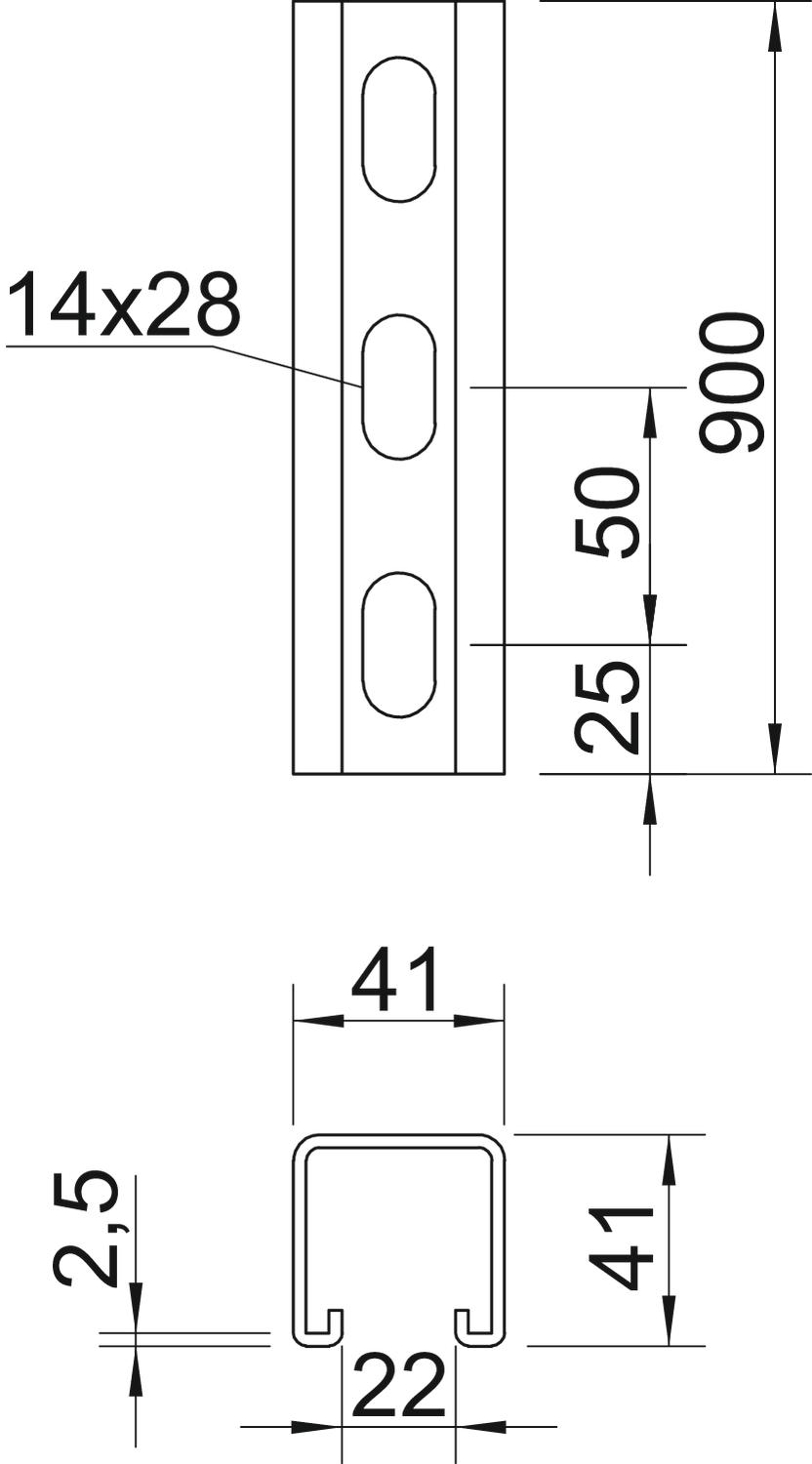

Dimension	900x41x41
Dimension L	900 mm
Drill hole spacing, centre	50 mm
Height	41 mm
Hole size	14x28 mm
Length	900 mm
Maintain electrical functions	yes
Material	Steel
Material thickness	2,5 mm
Profile shape	C profile

Slot width	22 mm
Static value A	2,97 cm²
Static value ly	6,05 cm
Static value lz	9,01 cm
Static value Wy	2,91 cm²
Static value Wz	4,4 cm²
Surface	Hot-dip galvanised
Type of perforation	Perforated back
Version for	Single profile
Width	41 mm
With perforation	yes
With toothing	yes

All types

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MS4141P0200FT	200 mm	41 mm	41 mm	2.5 mm	Hot-dip galvanised	1122509	piece	1 piece
MS4141P0300FT	300 mm	41 mm	41 mm	2.5 mm	Hot-dip galvanised	1122517	piece	1 piece
MS4141P0400FT	400 mm	41 mm	41 mm	2.5 mm	Hot-dip galvanised	1122525	piece	1 piece
MS4141P0500FT	500 mm	41 mm	41 mm	2.5 mm	Hot-dip galvanised	1122533	piece	1 piece
MS4141P0600FT	600 mm	41 mm	41 mm	2.5 mm	Hot-dip galvanised	1122541	piece	1 piece
MS4141P0700FT	700 mm	41 mm	41 mm	2.5 mm	Hot-dip galvanised	1122568	piece	1 piece
MS4141P0800FT	800 mm	41 mm	41 mm	2.5 mm	Hot-dip galvanised	1122576	piece	1 piece
MS4141P0900FT	900 mm	41 mm	41 mm	2.5 mm	Hot-dip galvanised	1122584	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Slide nut ZL	MS41SN M10 ZL	1147214	piece	50 piece
Hammer-head bolt ZL	MS41HB M10x30 ZL	1148322	piece	50 piece
Clamp clip, single, FT plastic pressure trough	2056U 22 FT	1175211	piece	100 piece
