MS4141 mounting rail, slot 22 mm, A4, perforated 6000 | 41 | 41 | 2.5 | Bright, treated

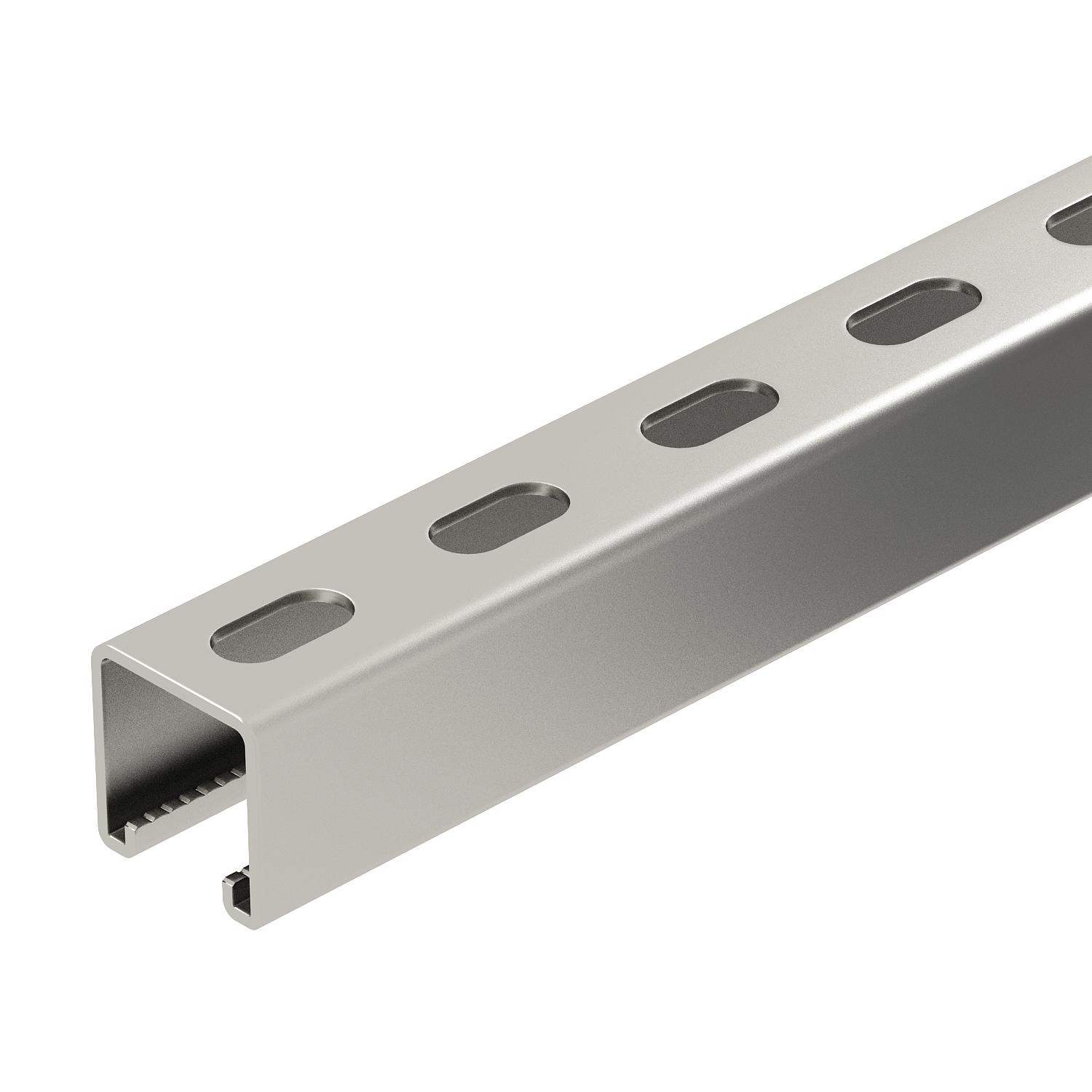

MS4141 mounting rail, slot 22 mm, A4, perforated

Item no. 1123051 | EAN 4012195907220

Item no. / Types

Length

Width	41 mm

Height	41 mm

Material thickness	2.5 mm

Surface	Bright, treated

Product description

Product description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.

Technical data

Technical data

Breakable	no

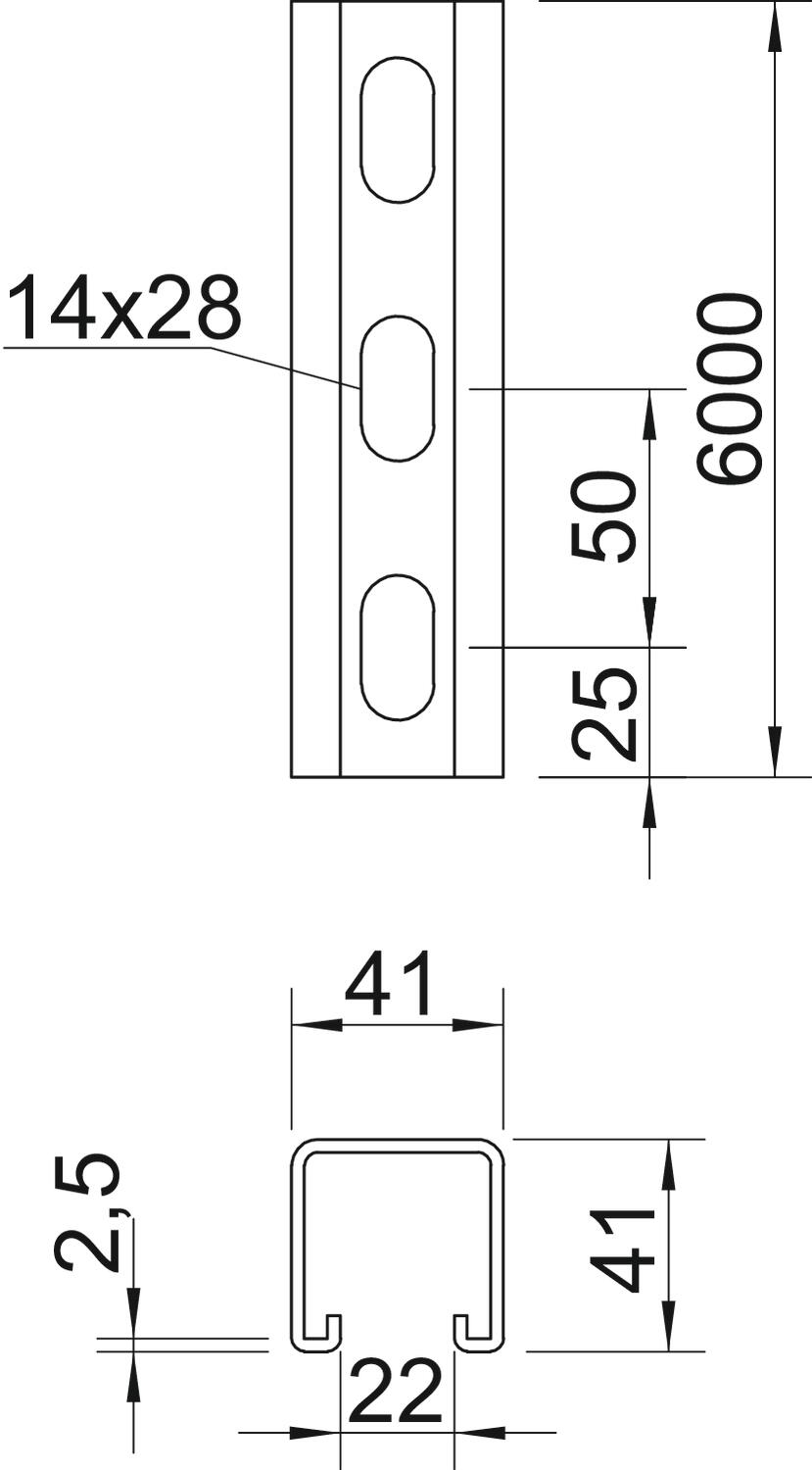

Dimension	6000x41x41
Dimension L	6000 mm
Drill hole spacing, centre	50 mm
Height	41 mm
Hole size	14x28 mm
Length	6000 mm
Maintain electrical functions	no
Material	Stainless steel
Material thickness	2,5 mm
Profile shape	C profile

Slot width	22 mm
Static value A	2,97 cm²
Static value ly	6,05 cm
Static value lz	9,01 cm
Static value Wy	2,91 cm²
Static value Wz	4,4 cm²
Surface	Bright, treated
Type of perforation	Perforated back
Version for	Single profile
Width	41 mm
With toothing	yes
