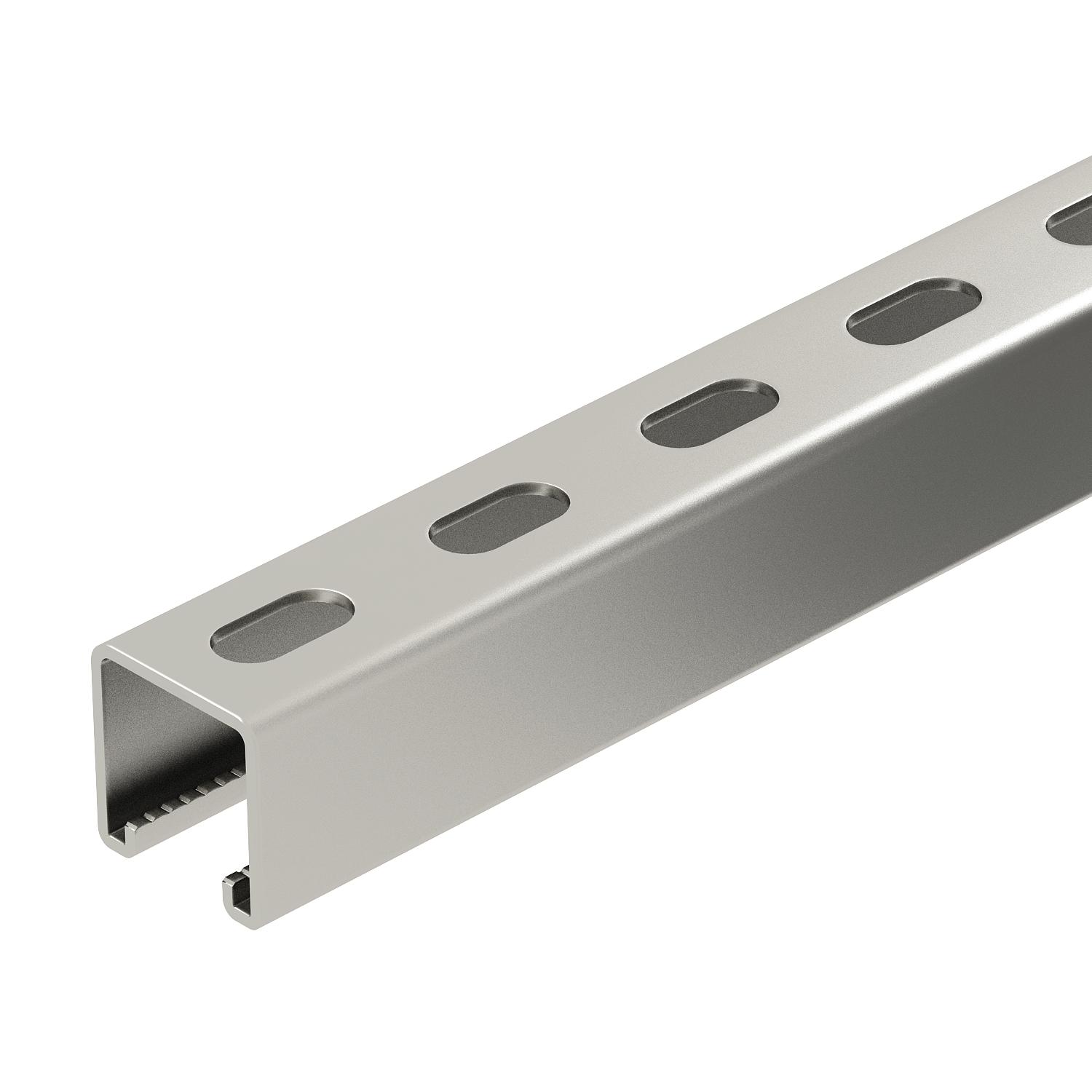

MS4141 mounting rail, slot 22 mm, A4, perforated

Item no. 1122990 | EAN 4012195698272

41 mm
41 mm
2 mm
Bright, treated
Product description

Product description

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Clamp clip for C profile rail, slot width 18–22 mm
  • Slot width 22 mm
Technical data

Technical data

Breakable no

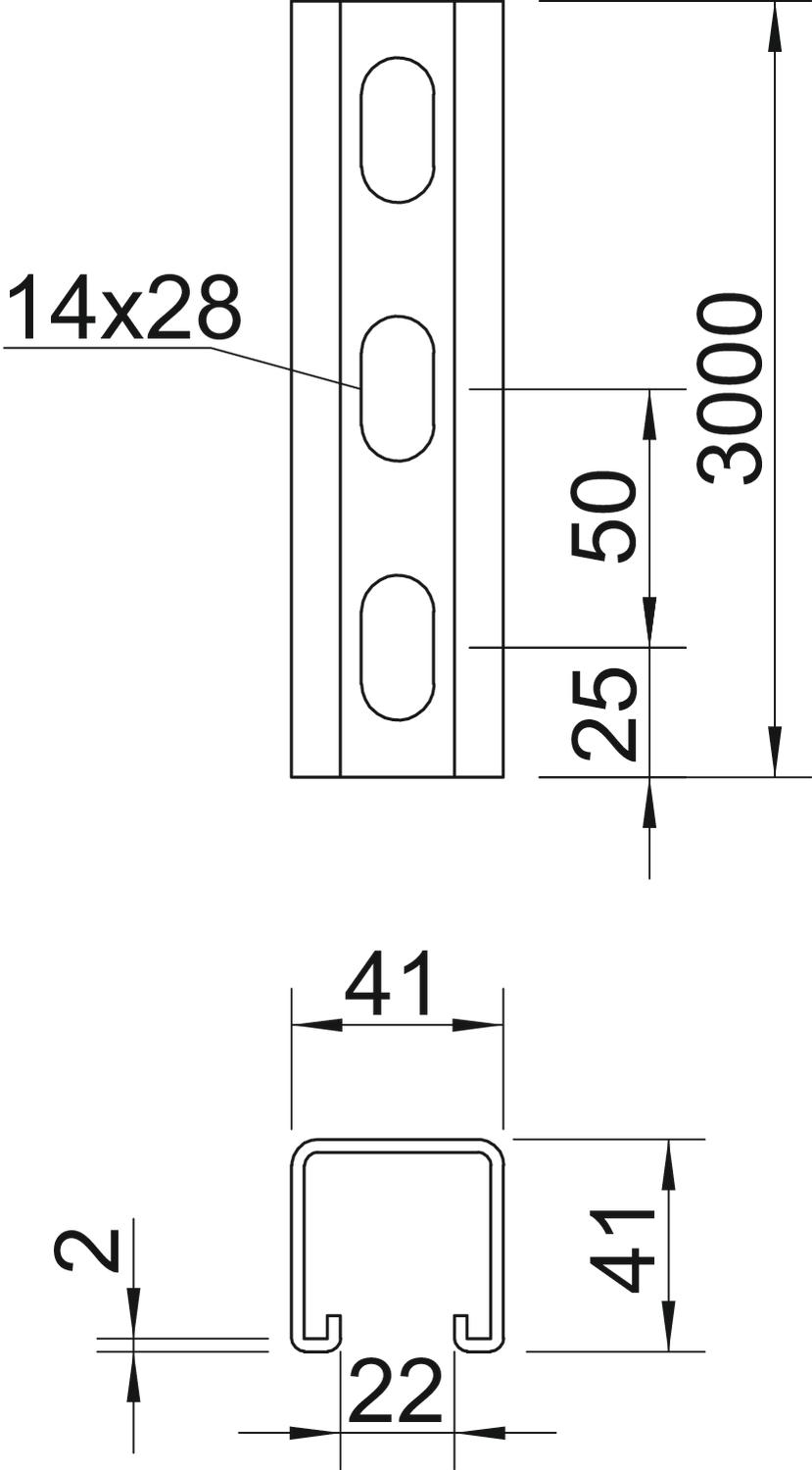

Dimension 3000x41x41
Dimension L 3000 mm
Drill hole spacing, centre 50 mm
Height 41 mm
Hole size 14x28 mm
Length 3000 mm
Maintain electrical functions no
Material Stainless steel
Material thickness 2 mm
Profile shape C profile
Slot width 22 mm
Static value A 2,45 cm²
Static value ly 5,18 cm
Static value lz 7,56 cm
Static value Wy 2,51 cm²
Static value Wz 2,69 cm²
Surface Bright, treated
Type of perforation Perforated back
Version for Single profile
Width 41 mm
With perforation yes
With toothing yes
All types

All types

Types Length Width Height Material thickness Surface Item no. Quantity SSU
MSL4141P1000A4 1000 mm 41 mm 41 mm 2 mm Bright, treated 1122988
1 m
MSL4141P3000A4 3000 mm 41 mm 41 mm 2 mm Bright, treated 1122990
3 m
MSL4141P6000A4 6000 mm 41 mm 41 mm 2 mm Bright, treated 1122992
6 m
Accessories

System accessories

Products Types Item no. Quantity SSU
Slide nut A4 Slide nut A4 MS41SN M10 A4 1147234
50 piece
Hammer-head bolt A4 Hammer-head bolt A4 MS41HB M10x30 A4 1148422
50 piece
