- Product description
-
Product description

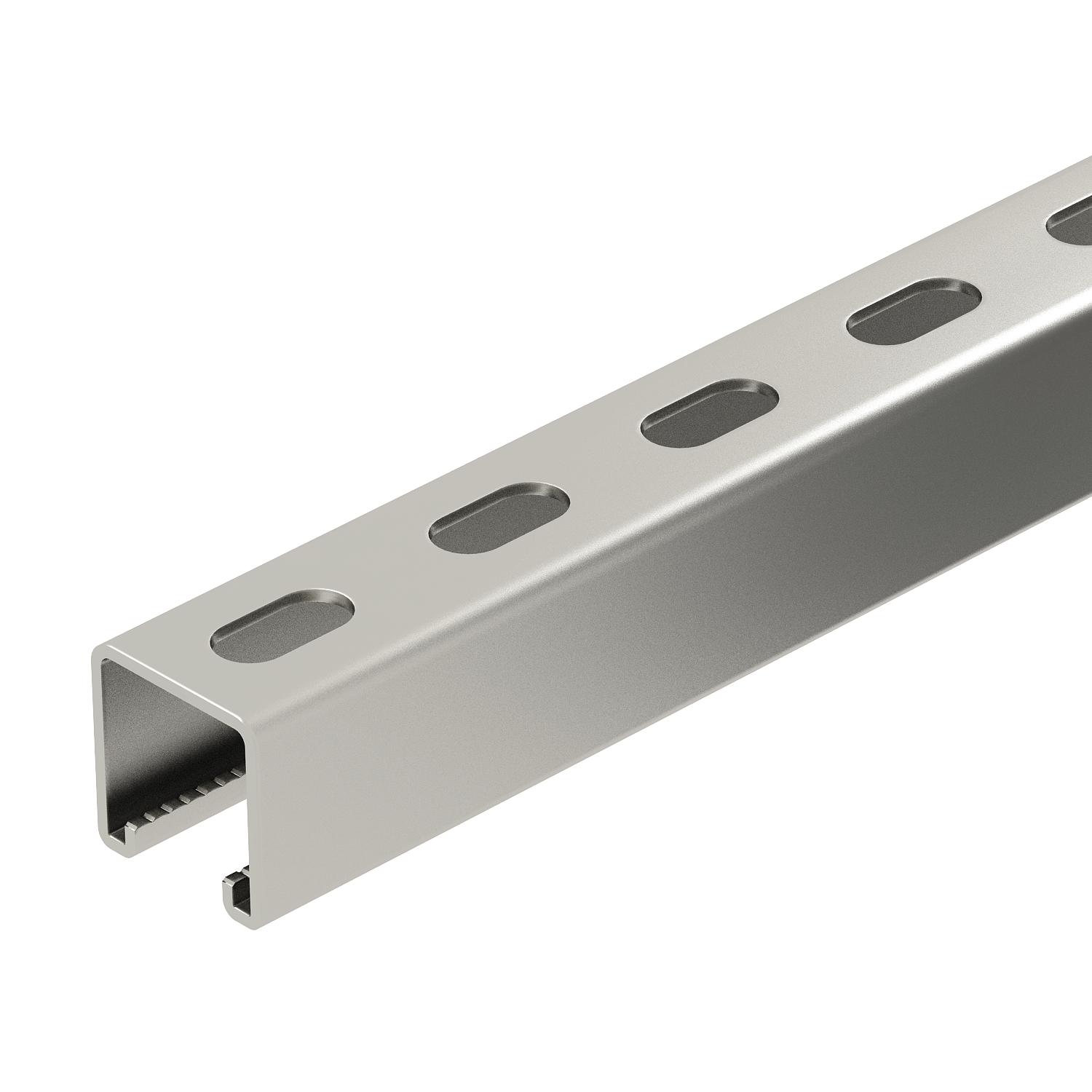

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
- Technical data
-
Technical data

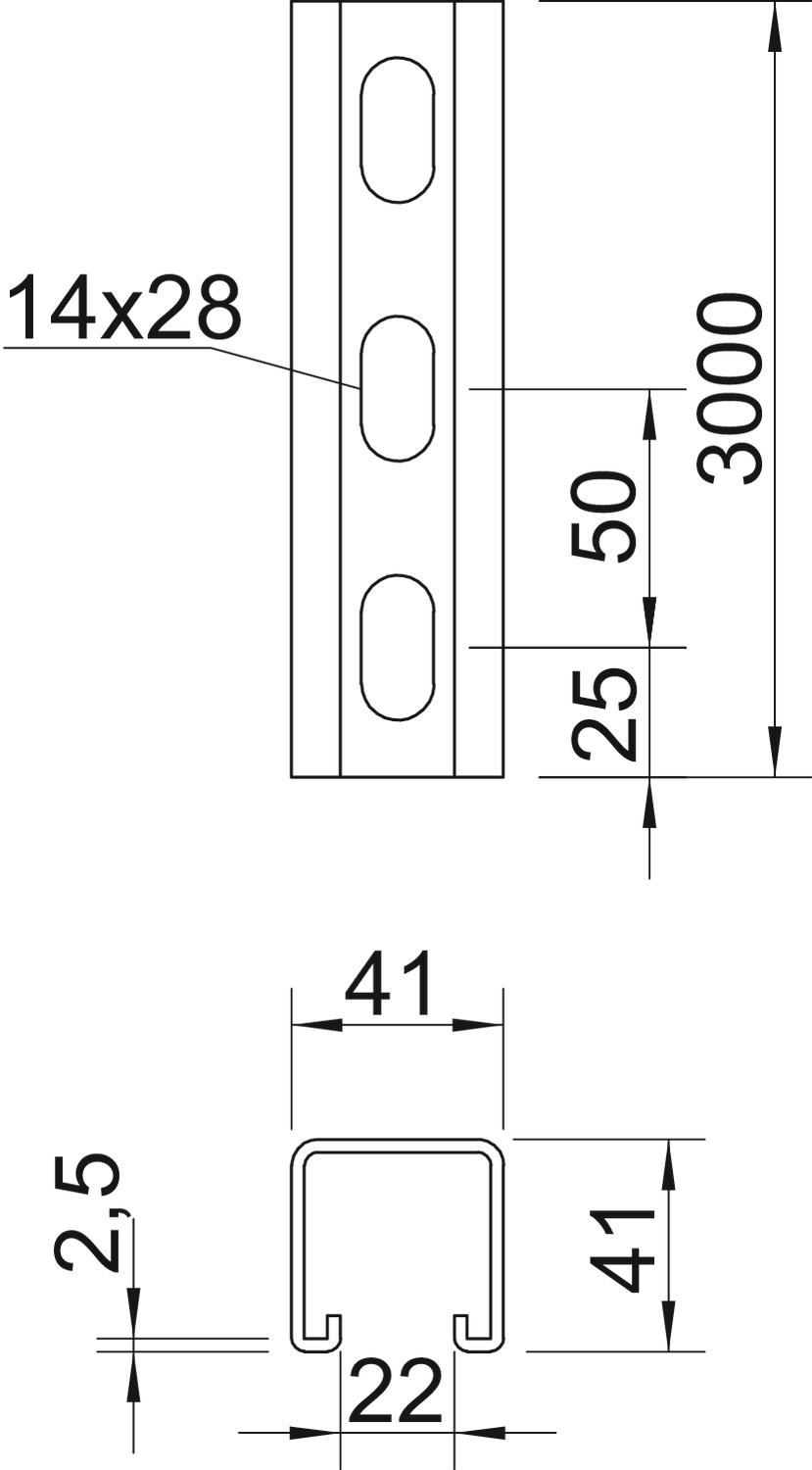

Breakable no Dimension 3000x41x41 Dimension L 3000 mm Drill hole spacing, centre 50 mm Height 41 mm Hole size 14x28 mm Length 3000 mm Maintain electrical functions no Material Stainless steel Material thickness 2,5 mm Profile shape C profile Slot width 22 mm Static value A 2,97 cm² Static value ly 6,05 cm Static value lz 9,01 cm Static value Wy 2,91 cm² Static value Wz 4,4 cm² Surface Bright, treated Type of perforation Perforated back Version for Single profile Width 41 mm With toothing yes - All types
- Downloads
-
Data sheet MS4141P3000A4 / 1123049 , 0.18MB , pdfBrochure Rail systems , 2.10MB , pdfDeclaration of conformity MS4141P3000A4 / 1123049 , 0.05MB , pdfREACH Declaration of conformity MS4141P3000A4 / 1123049 , 0.12MB , pdfRoHS Declaration of conformity MS4141P3000A4 / 1123049 , 0.12MB , pdf
