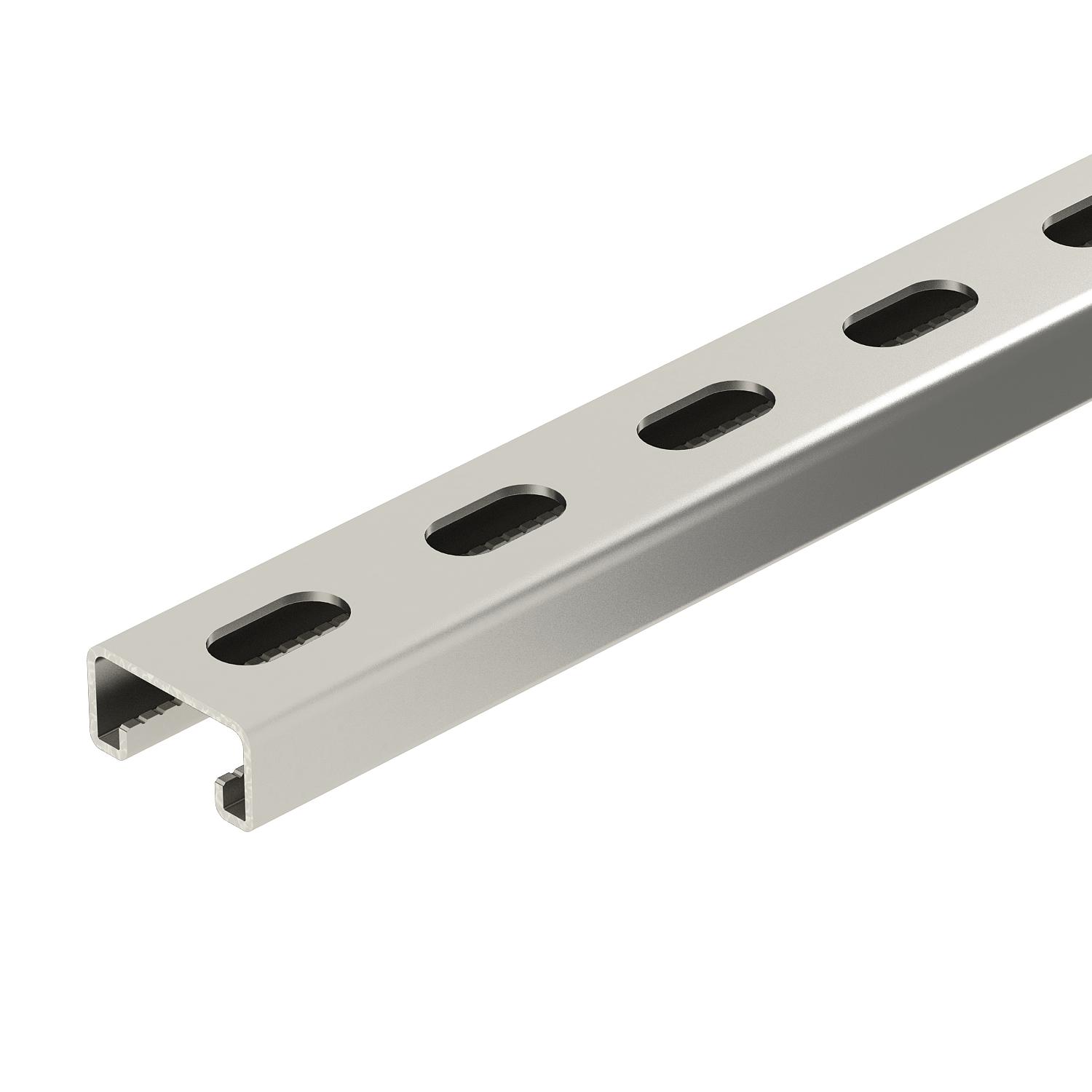

MS4121P mounting rail, slot 22 mm, perforated A2
Item no. 1122930 | EAN 4012196427239
- Product description
-
Product descriptionHeavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
-
- Technical data
-
Technical data

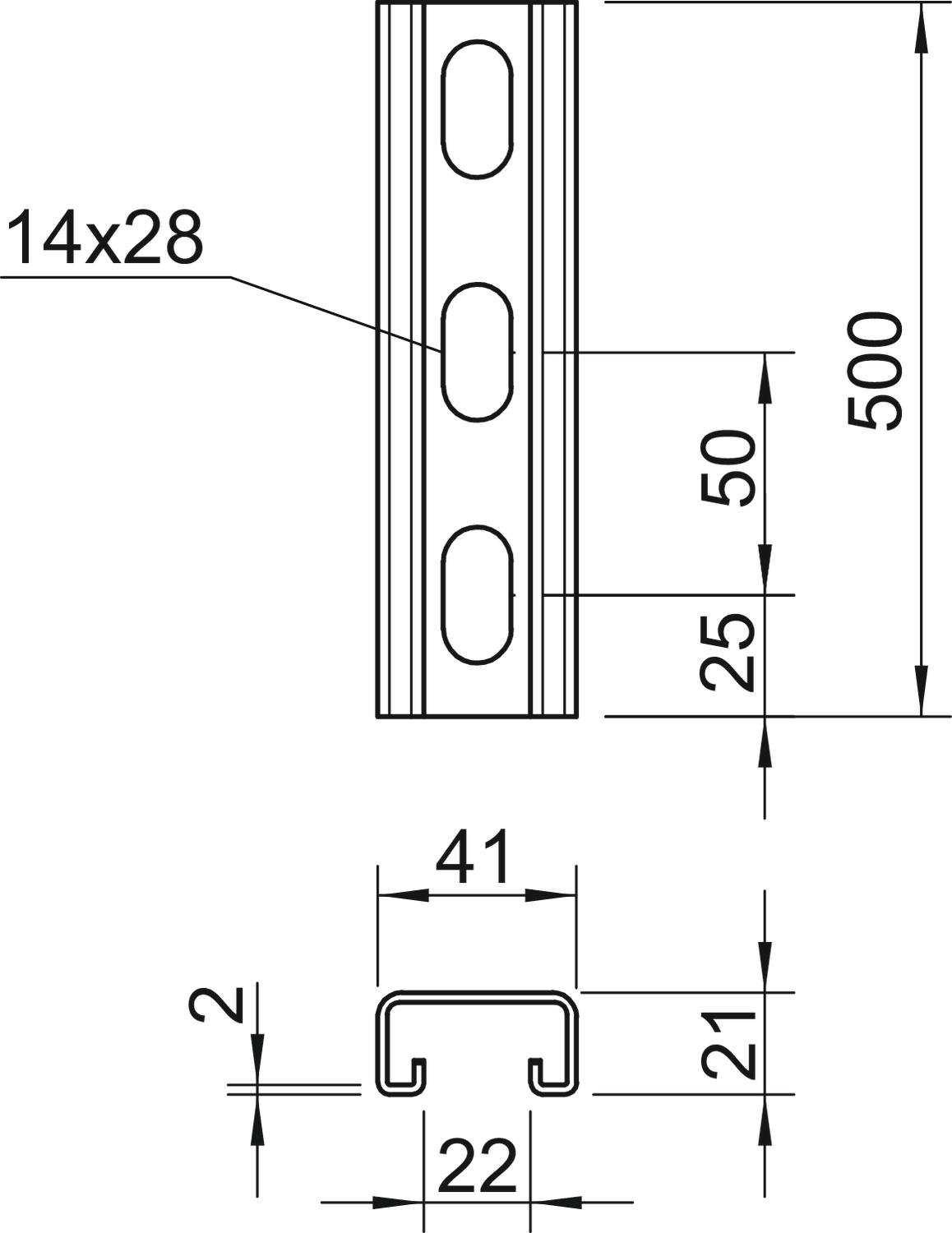

Breakable no CO₂ Footprint (GWP) Cradle-to-Gate 3,732 kg CO₂e / 1 Piece Dimension 500x41x21 Dimension L 500 mm Drill hole spacing, centre 50 mm Height 21 mm Hole size 14x28 mm Length 500 mm Maintain electrical functions no Material Stainless steel Material thickness 2 mm Profile shape C profile Slot width 22 mm Static value A 1,65 cm² Static value ly 0,95 cm Static value lz 4,51 cm Static value Wy 0,89 cm² Static value Wz 2,2 cm² Surface Bright, treated Type of perforation Perforated back Version for Single profile Width 41 mm With perforation yes With toothing yes - All types
- Downloads
-
Data sheet MS4121P0500A2 / 1122930 , 0.19MB , pdfBrochure Rail systems , 2.10MB , pdf
