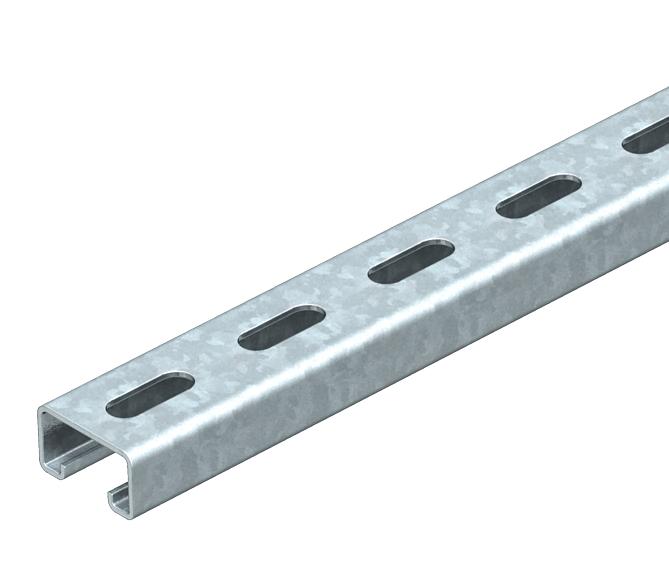

MS4121 mounting rail, slot 22 mm, FS, perforated
Item no. 1122950 | EAN 4012196471119
- Product description
-
Product description
Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
-
- Technical data
-
Technical data

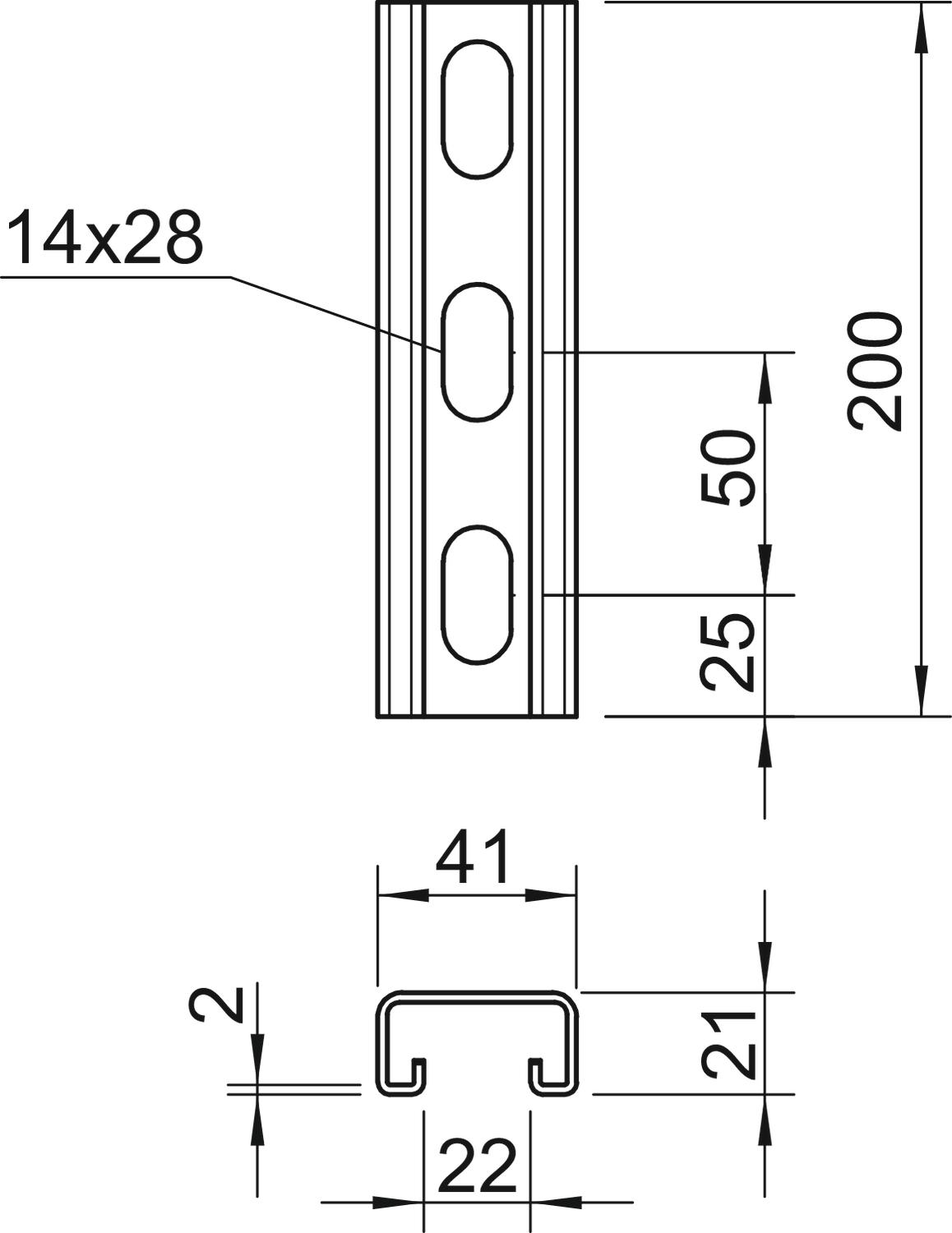

Breakable no Dimension 200x41x21 Drill hole spacing, centre 50 mm Maintain electrical functions no Material Steel Material thickness 2 mm Profile shape C profile Slot width 22 mm Static value A 1,65 cm² Static value ly 0,95 cm Static value lz 4,51 cm Static value Wy 0,89 cm² Static value Wz 2,2 cm² Surface Strip galvanized Type of perforation Perforated back Version for Single profile With perforation no With toothing yes Dimensions
Dimension L 200 mm Height 21 mm Length 200 mm Width 41 mm - All types
-
All types
-
System accessories
Products Types Item no. Quantity SSU
Slide nut ZL
MS41SN M10 ZL 1147214 50 piece
Hammer-head bolt ZL
MS41HB M10x30 ZL 1148322 50 piece
Clamp clip, single, FT plastic pressure trough
2056U 22 FT 1175211 100 piece - Downloads
-
