MS4121 mounting rail, slot 22 mm, double, A2, perforated 6000 | 41 | 42 | 2 | Bright, treated

MS4121 mounting rail, slot 22 mm, double, A2, perforated

Item no. 1122954 | EAN 4012195938019

Item no. / Types	1122954 / MS4142P6000A2

Length	6000 mm

Width	41 mm

Height	42 mm

Material thickness	2 mm

Surface	Bright, treated

Product description

Product description

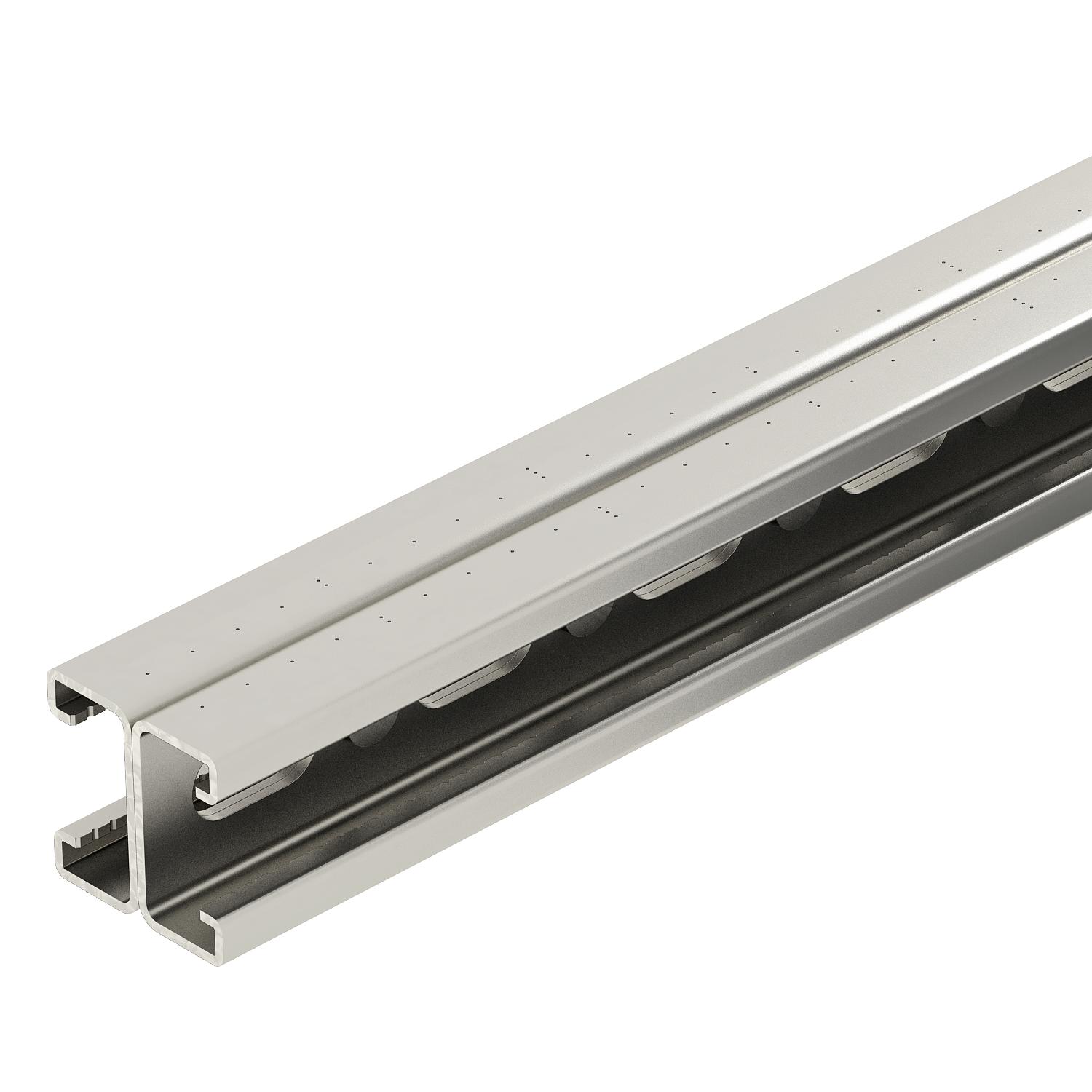

Heavy-duty unistrut with continuous perforation in base, slot width 22 mm. Double version, i.e. two profile rails are interconnected on the base (welded).

Technical data

Technical data

Breakable	no

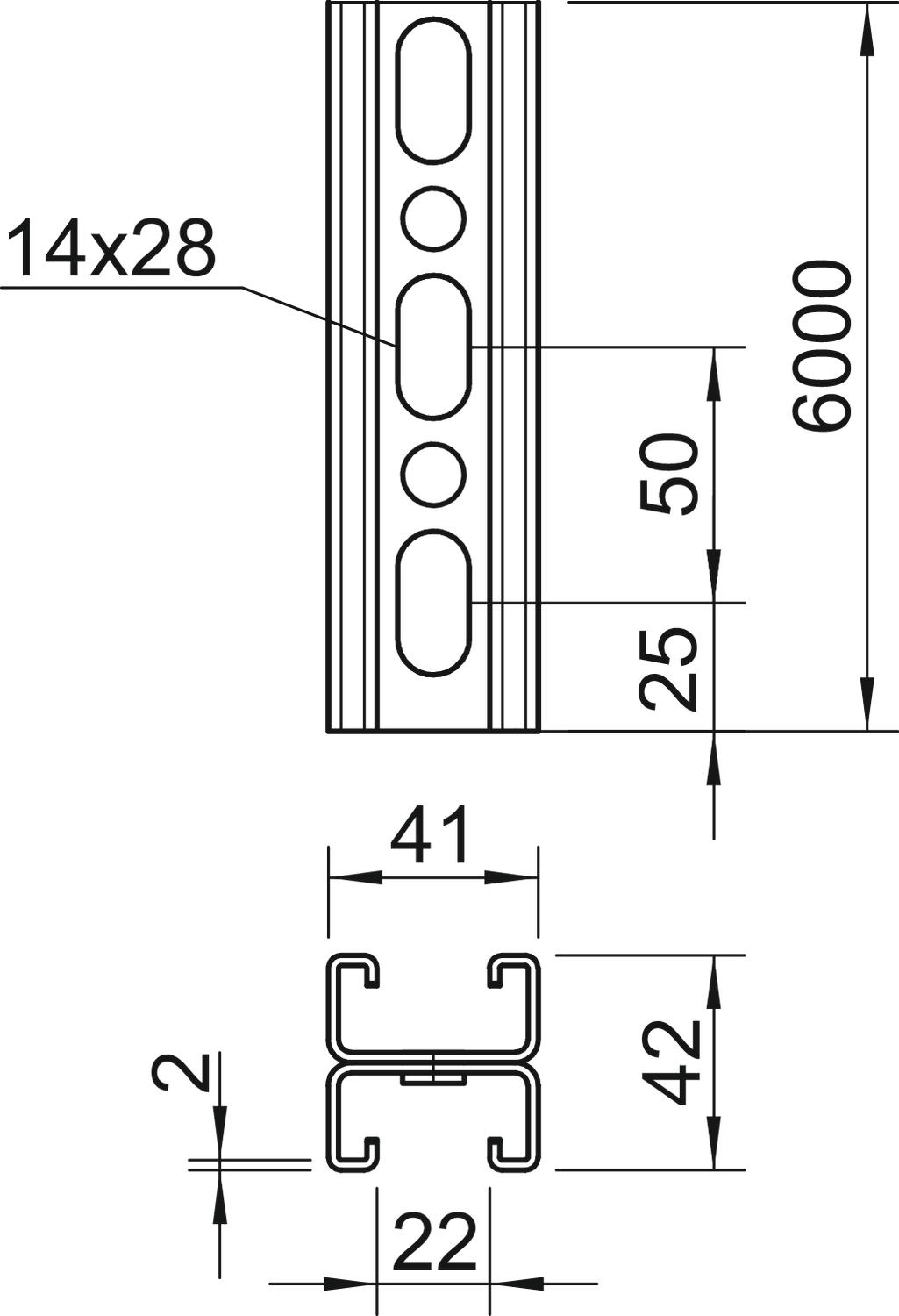

Dimension	6000x41x42
Hole size	14x28 mm
Maintain electrical functions	no
Material	Stainless steel
Material thickness	2 mm
Profile shape	C profile
Slot width	22 mm
Static value A	3,3 cm²

Static value ly	5,38 cm
Static value lz	9,02 cm
Static value Wy	1,28 cm²
Static value Wz	0,25 cm²
Surface	Bright, treated
Type of perforation	Perforated bar
Version for	Double profile
With toothing	yes

Dimensions

Dimension L	6000 mm
Height	42 mm

Length	6000 mm
Width	41 mm

All types

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MS4142P6000A2	6000 mm	41 mm	42 mm	2 mm	Bright, treated	1122954	m	6 m

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Slide nut A4	MS41SN M10 A4	1147234	piece	50 piece
Hammer-head bolt A4	MS41HB M10x30 A4	1148422	piece	50 piece
Clamp clip, single, FT plastic pressure trough	2056U 22 FT	1175211	piece	100 piece
Clamp clip, single, A2 plastic pressure trough	2056U 12 A2	1178504	piece	50 piece
