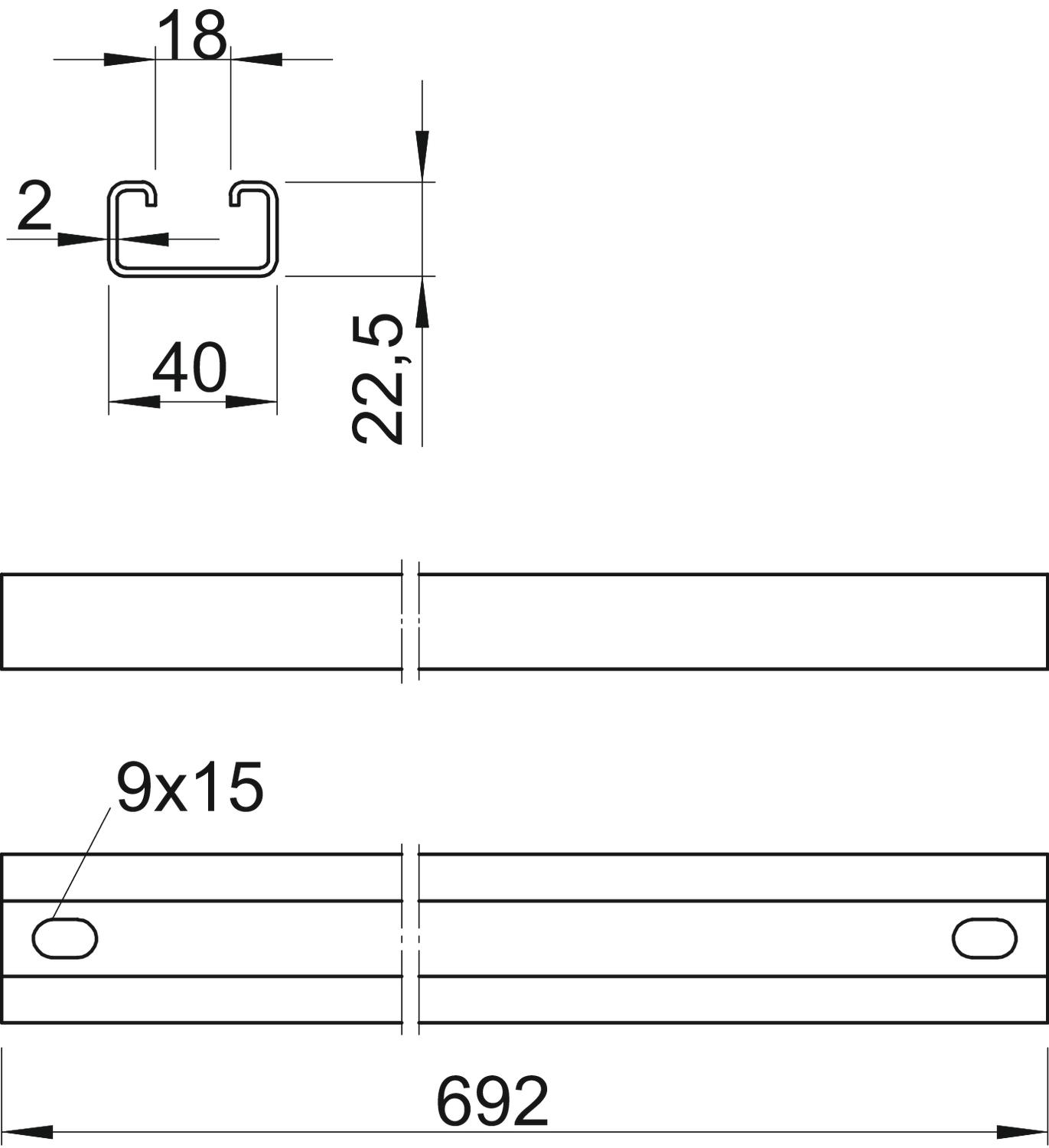

MS4022 mounting rail, heavy-duty, slot 18 mm, FT

Item no. / Types

Length

Width	40 mm

Height	22.5 mm

Material thickness	2 mm

Surface	Hot-dip galvanised

Product description

Product description

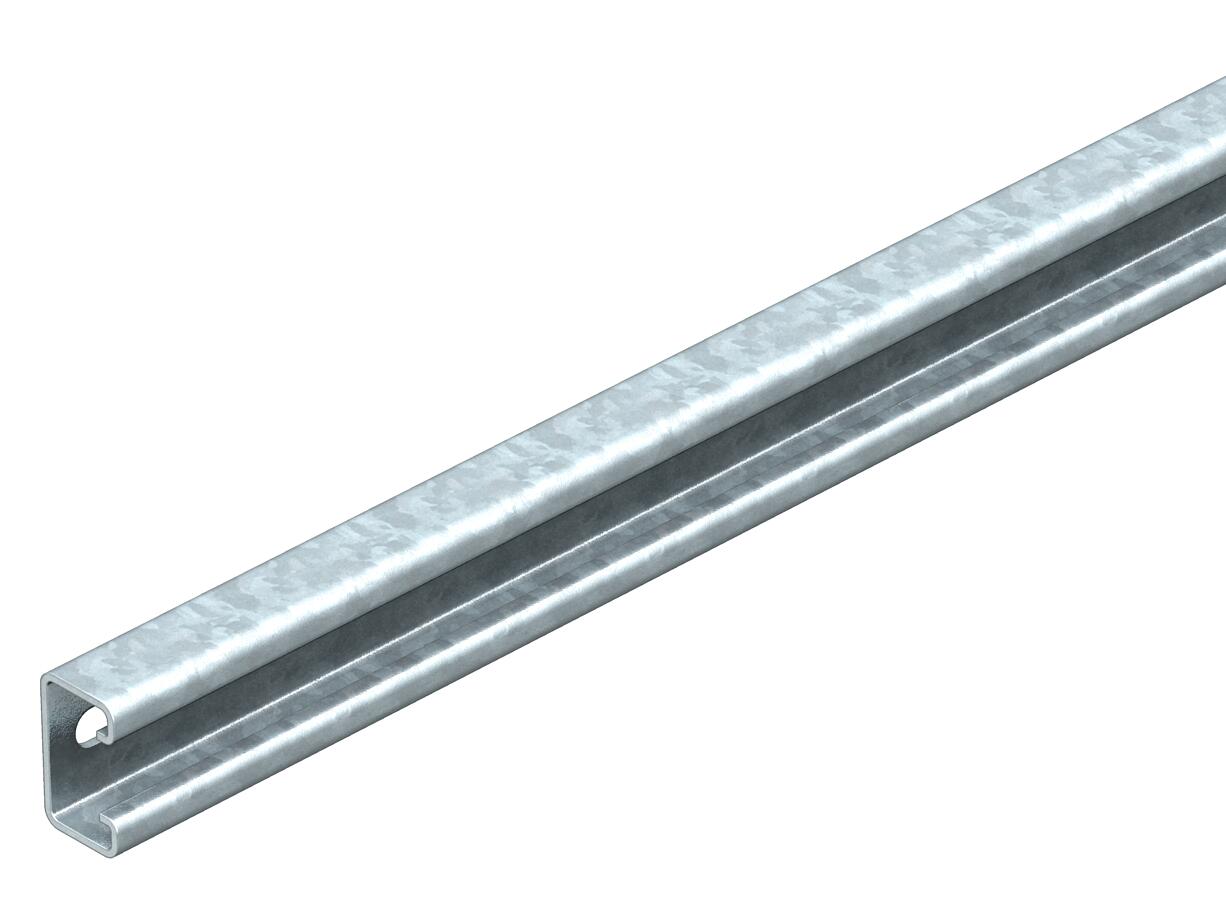

MS4022 profile rail for use as rung in heavy-duty ladders.

Technical data

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MS4022P0192FT	192 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007201	piece	1 piece
MS4022P0292FT	292 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007228	piece	1 piece
MS4022P0392FT	392 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007236	piece	1 piece
MS4022P0492FT	492 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007244	piece	1 piece
MS4022P0592FT	592 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007252	piece	1 piece
MS4022P0692FT	692 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007260	piece	1 piece
MS4022P0792FT	792 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007279	piece	1 piece
MS4022P0892FT	892 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007287	piece	1 piece
MS4022P0992FT	992 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007295	piece	1 piece
MS4022P1092FT	1092 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007309	piece	1 piece
MS4022P1192FT	1192 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007317	piece	1 piece

Accessories

Products	Types	Item no.	Quantity	SSU
Slide nut ZL	MS40SN M10 ZL	1147114	piece	50 piece
Hook-head screw ZL	MS40HB M10x30 ZL	1148118	piece	50 piece
Clamp clip, single, FT plastic pressure trough	2056U 22 FT	1175211	piece	100 piece
