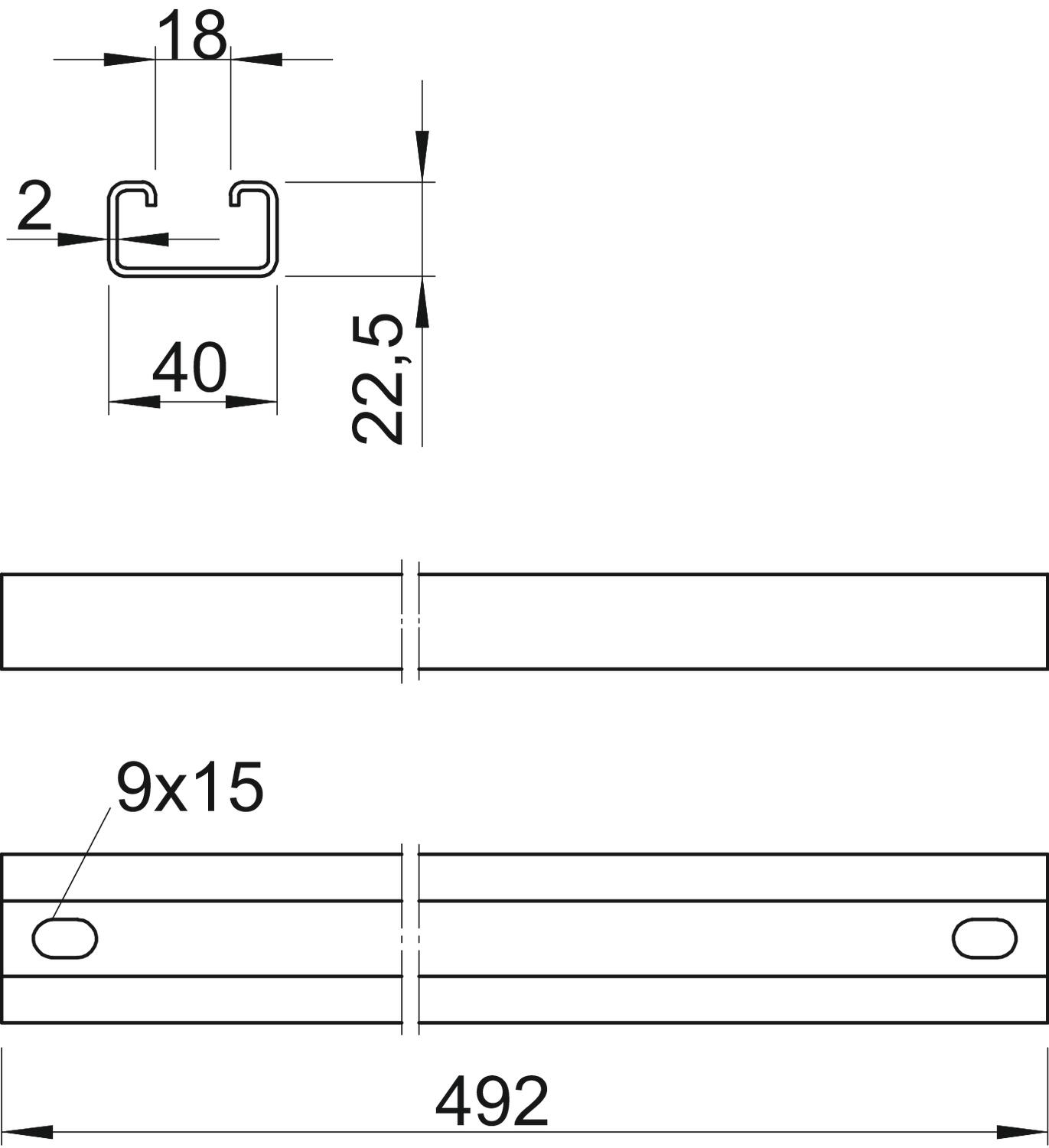

MS4022 mounting rail, heavy-duty, slot 18 mm, FT

Item no. / Types

Length

Width	40 mm

Height	22.5 mm

Material thickness	2 mm

Surface	Hot-dip galvanised

Product description

Product description

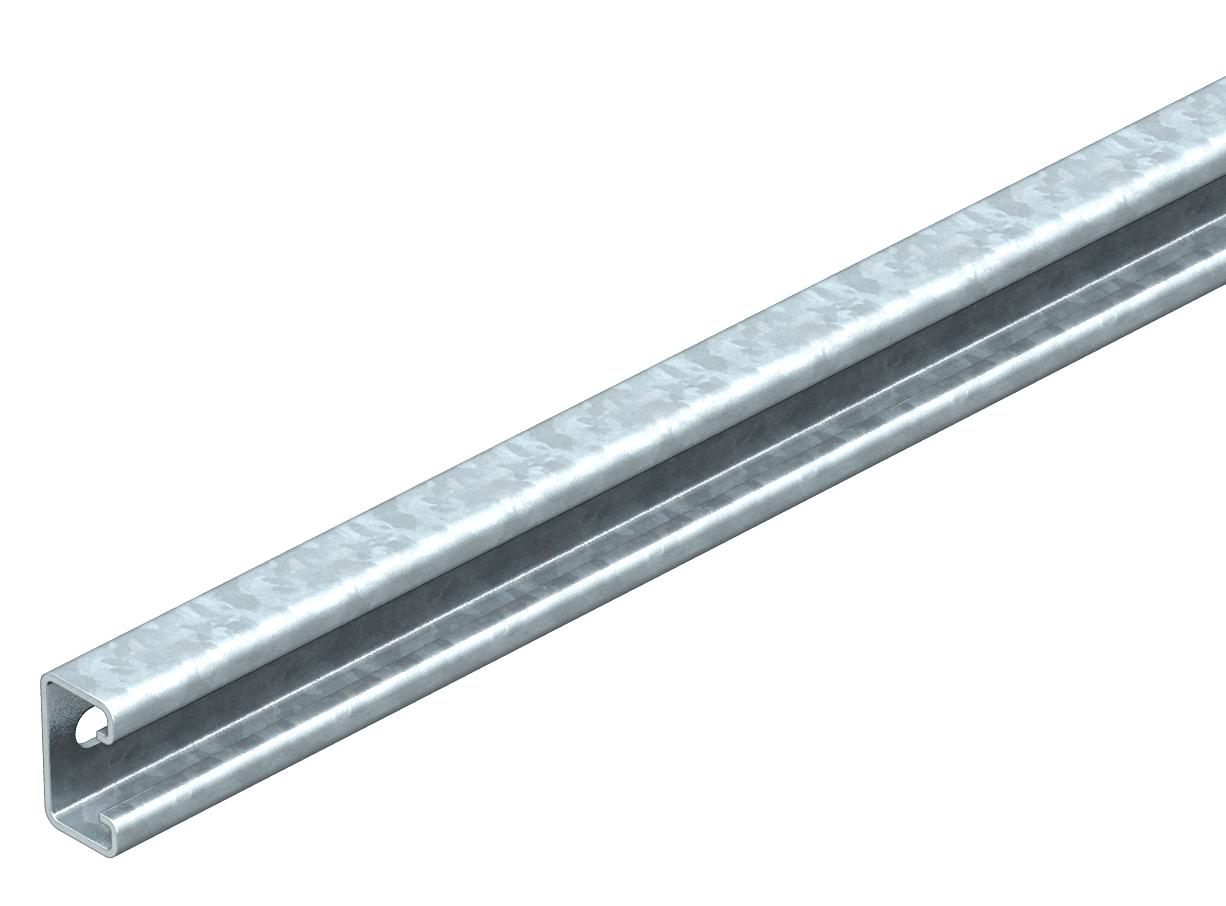

MS4022 profile rail for use as rung in heavy-duty ladders.

Technical data

Height	22,5 mm
Length	492 mm

Width	40 mm

All types

Types	Length	Width	Height	Material thickness	Surface	Item no.	Quantity	SSU
MS4022P0192FT	192 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007201	piece	1 piece
MS4022P0292FT	292 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007228	piece	1 piece
MS4022P0392FT	392 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007236	piece	1 piece
MS4022P0492FT	492 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007244	piece	1 piece
MS4022P0592FT	592 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007252	piece	1 piece
MS4022P0692FT	692 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007260	piece	1 piece
MS4022P0792FT	792 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007279	piece	1 piece
MS4022P0892FT	892 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007287	piece	1 piece
MS4022P0992FT	992 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007295	piece	1 piece
MS4022P1092FT	1092 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007309	piece	1 piece
MS4022P1192FT	1192 mm	40 mm	22.5 mm	2 mm	Hot-dip galvanised	6007317	piece	1 piece

Accessories

Products	Types	Item no.	Quantity	SSU
Slide nut ZL	MS40SN M10 ZL	1147114	piece	50 piece
Hook-head screw ZL	MS40HB M10x30 ZL	1148118	piece	50 piece
Clamp clip, single, FT plastic pressure trough	2056U 22 FT	1175211	piece	100 piece
