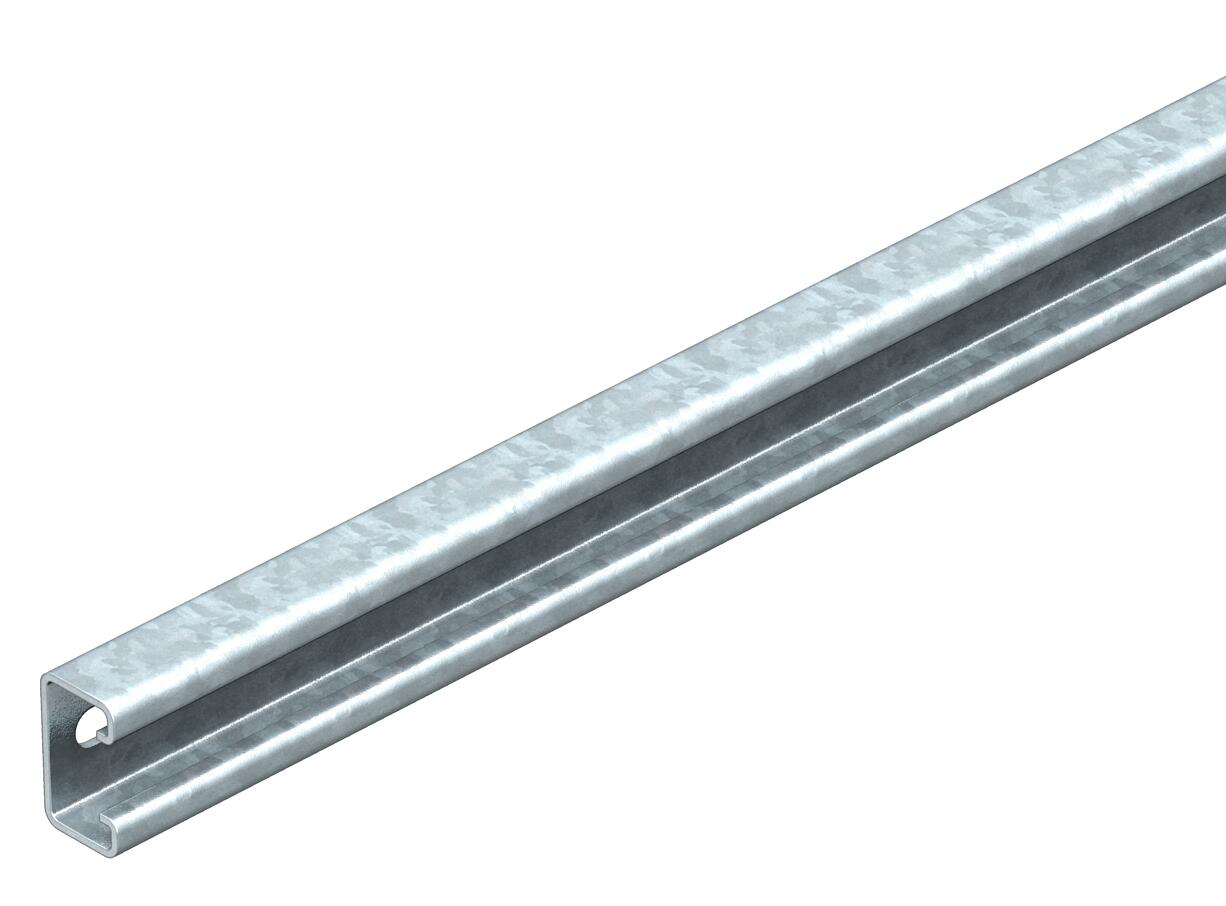

MS4022 mounting rail, heavy-duty, slot 18 mm, FT

Item no. 6007317 | EAN 4012196006434

40 mm
22.5 mm
2 mm
Hot-dip galvanised
Product description
Product description
MS4022 profile rail for use as rung in heavy-duty ladders.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • U support
  • U support
  • U support
  • Slot width 18 mm
  • Clamp clip for C profile rail, slot width 18–22 mm
Technical data

Technical data

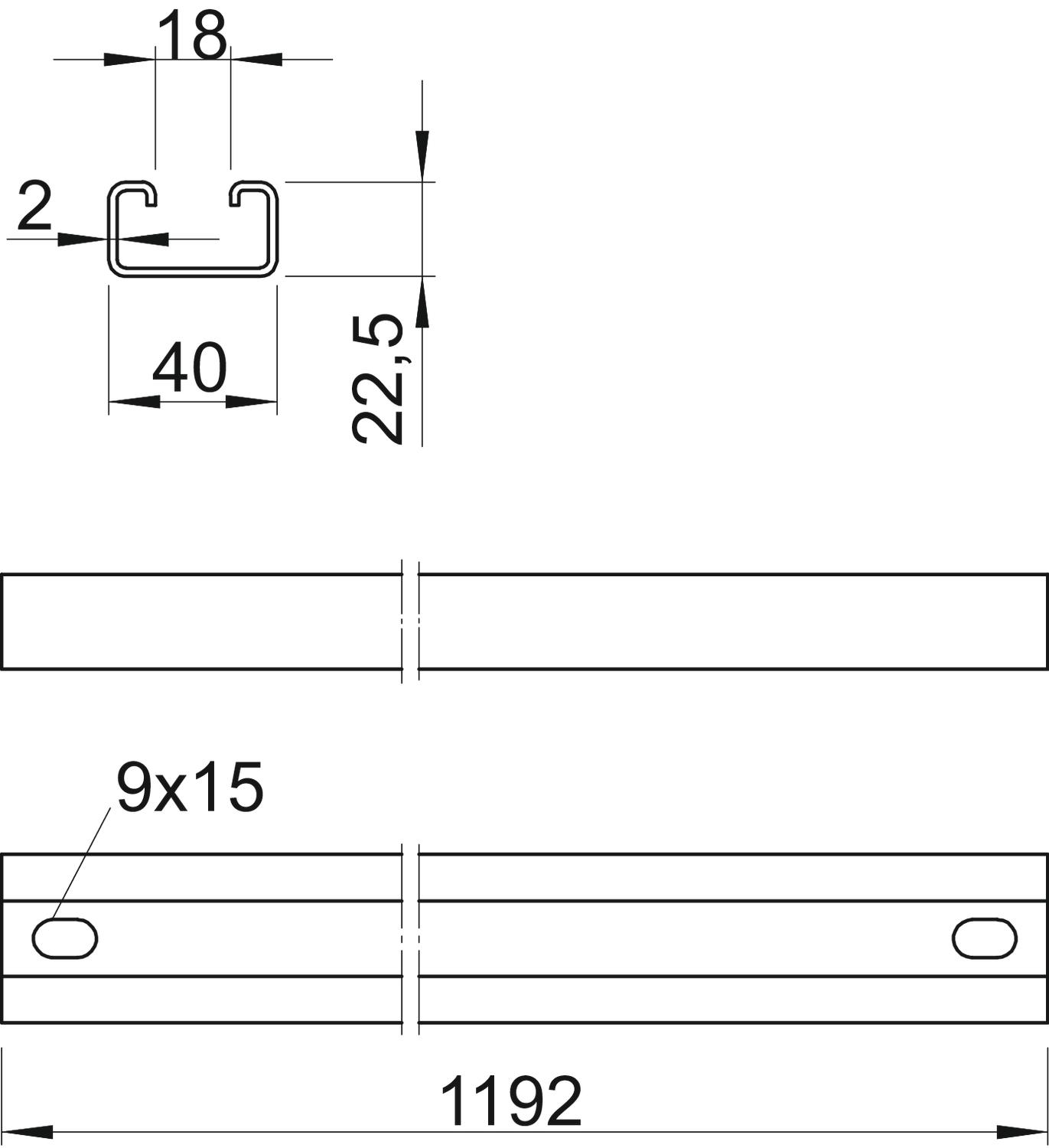

Dimension 1192x40x22,5
Height 22,5 mm
lampDimension WxH 40x22,5 mm
Length 1192 mm
Material Steel
Material thickness 2 mm
Profile shape C profile
Slot width 18 mm
Surface Hot-dip galvanised
Type of perforation Perforated back
Version for Single profile
Width 40 mm
All types

All types

Types Length Width Height Material thickness Surface Item no. Quantity SSU
MS4022P0192FT 192 mm 40 mm 22.5 mm 2 mm Hot-dip galvanised 6007201
1 piece
MS4022P0292FT 292 mm 40 mm 22.5 mm 2 mm Hot-dip galvanised 6007228
1 piece
MS4022P0392FT 392 mm 40 mm 22.5 mm 2 mm Hot-dip galvanised 6007236
1 piece
MS4022P0492FT 492 mm 40 mm 22.5 mm 2 mm Hot-dip galvanised 6007244
1 piece
MS4022P0592FT 592 mm 40 mm 22.5 mm 2 mm Hot-dip galvanised 6007252
1 piece
MS4022P0692FT 692 mm 40 mm 22.5 mm 2 mm Hot-dip galvanised 6007260
1 piece
MS4022P0792FT 792 mm 40 mm 22.5 mm 2 mm Hot-dip galvanised 6007279
1 piece
MS4022P0892FT 892 mm 40 mm 22.5 mm 2 mm Hot-dip galvanised 6007287
1 piece
MS4022P0992FT 992 mm 40 mm 22.5 mm 2 mm Hot-dip galvanised 6007295
1 piece
MS4022P1092FT 1092 mm 40 mm 22.5 mm 2 mm Hot-dip galvanised 6007309
1 piece
MS4022P1192FT 1192 mm 40 mm 22.5 mm 2 mm Hot-dip galvanised 6007317
1 piece
Accessories

System accessories

Products Types Item no. Quantity SSU
Slide nut ZL Slide nut ZL MS40SN M10 ZL 1147114
50 piece
Hook-head screw ZL Hook-head screw ZL MS40HB M10x30 ZL 1148118
50 piece
Clamp clip, single, FT plastic pressure trough Clamp clip, single, FT plastic pressure trough 2056U 22 FT 1175211
100 piece
