Mounting set for heavy-duty cassettes

Item no. 7407651 | EAN 4012196552962

Item no. / Types	7407651 / MS3 3UT3

Length	207 mm

Product description

Product description

Mounting set with three universal supports of type UT3 for installation in heavy-duty cassettes.

Technical data

Technical data

Dimension	250x207x44
Height	50 mm
Length	207 mm
Material	Steel
No. of entries	4

Number of installable devices	9
Number of strain reliefs	6
Surface	Strip galvanized
Version for	Support shape
Width	250 mm

All types

All types

Types	Length	Item no.	Quantity	SSU
MS3 3UT3	207 mm	7407651	piece	1 piece

Downloads

Data sheet MS3 3UT3 / 7407651 , 0.21MB , pdf

Catalogue Floor installation systems and Underfloor applications , 42.28MB , pdf

REACH Declaration of conformity MS3 3UT3 / 7407651 , 0.12MB , pdf

Download

RoHS Declaration of conformity MS3 3UT3 / 7407651 , 0.12MB , pdf

Download

Label approval VDE symbol approval, GES , 0.12MB , pdf

Download

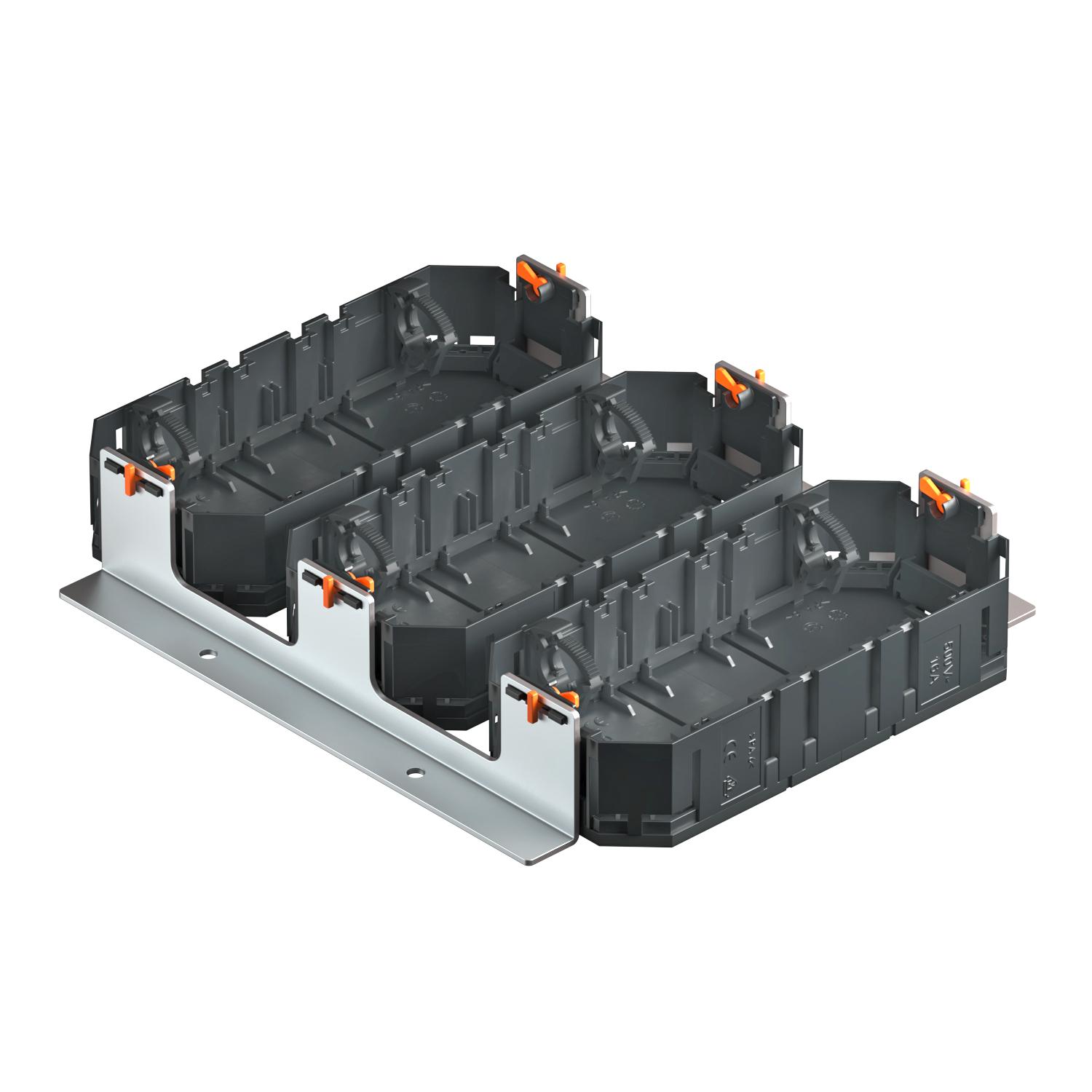

Product graphic MS3 3UT3 / 7407651, 98.48 kB, jpg

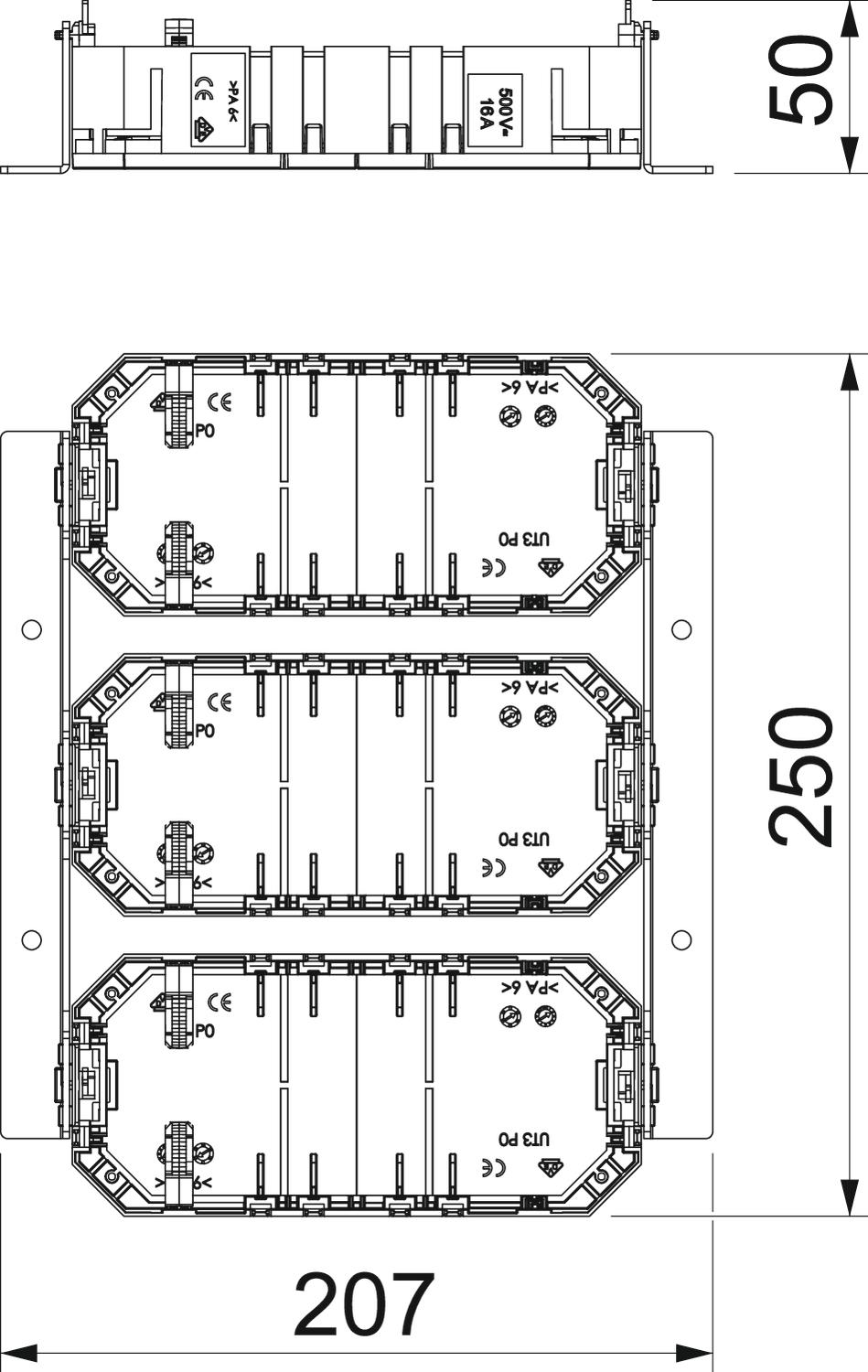

Scale drawing MS3 3UT3 / 7407651, 144.78 kB, jpg

MS3 3UT3 / 7407651
