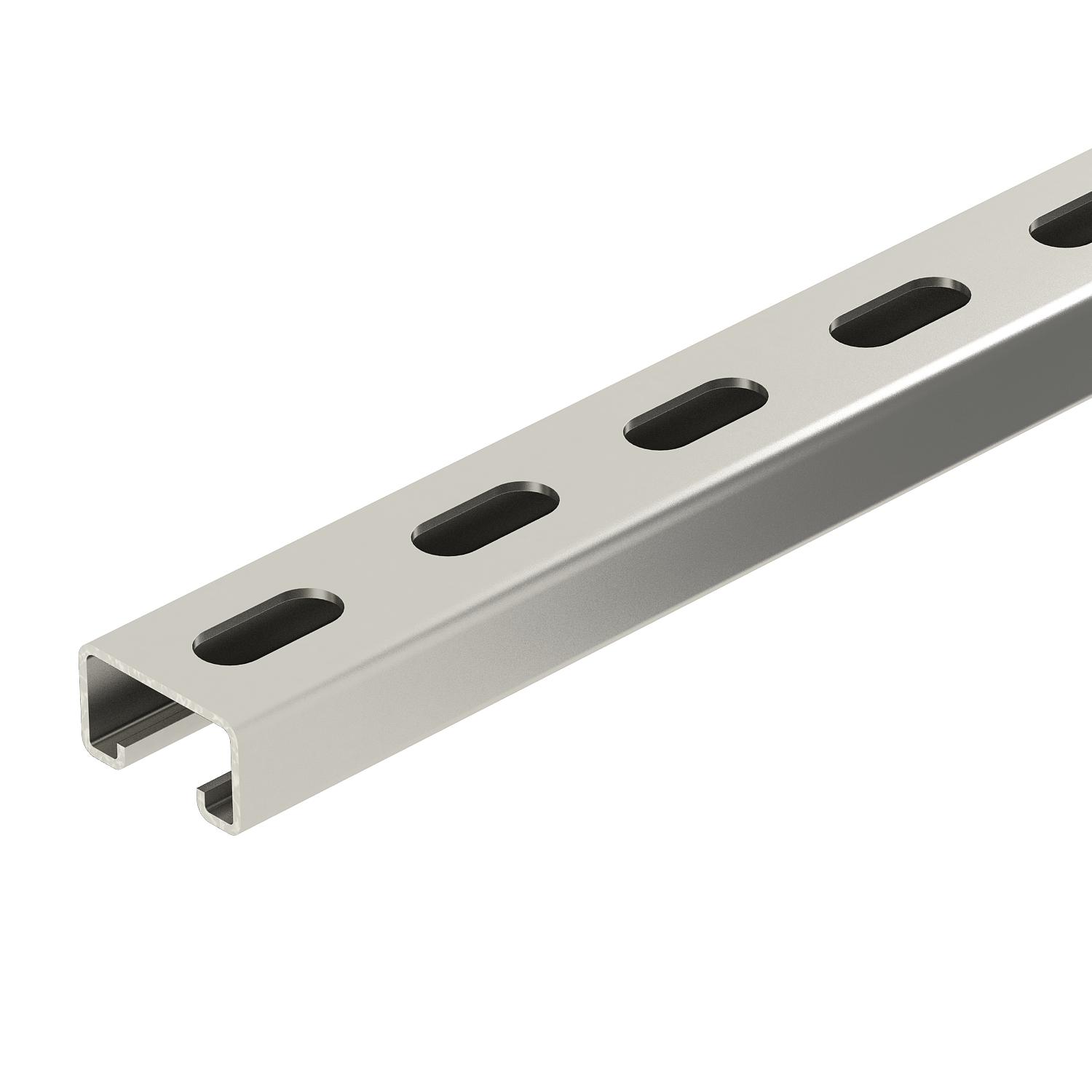

Mounting rail MS4022, heavy-duty, slot 18 mm, A4, perforated
Item no. 1121903 | EAN 4012195907022
- Product description
-
Product descriptionHeavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
-
- Technical data
-
Technical data

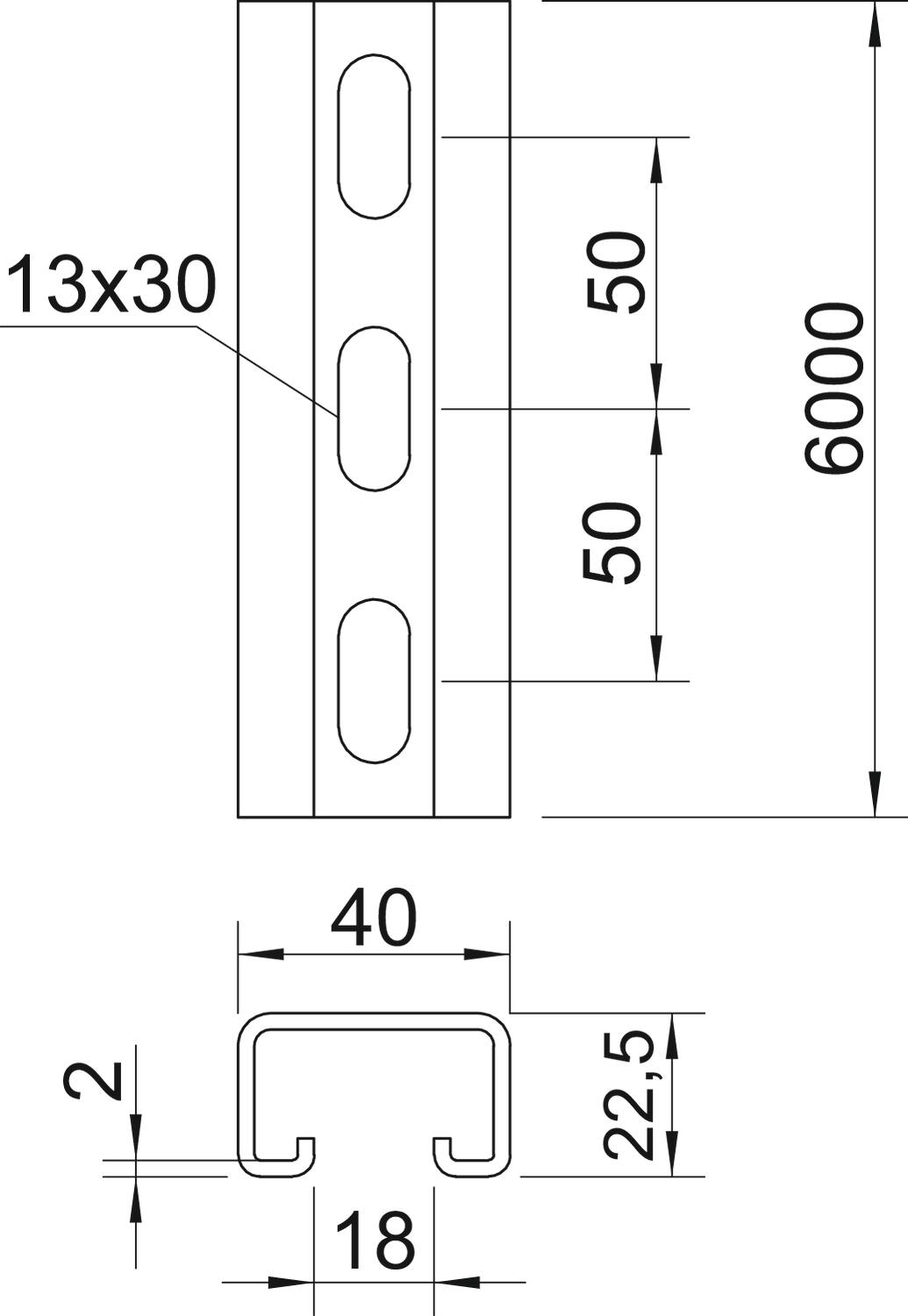

CO₂ Footprint (GWP) Cradle-to-Gate 7,888 kg CO₂e / 1 Meter Dimension 6000x40x22,5 Dimension L 6000 mm Drill hole spacing, centre 50 mm Height 22,5 mm Length 6000 mm Material Stainless steel Material thickness 2 mm Profile shape C profile Slot width 18 mm Static value A 1,74 cm² Static value ly 1,86 cm Static value lz 4,46 cm Static value Wy 1,05 cm² Static value Wz 2,23 cm² Surface Bright, treated Type of perforation Perforated back Version for Single profile Width 40 mm With perforation no With toothing no - All types
-
Mounting accessories
Products Types Item no. Quantity SSU

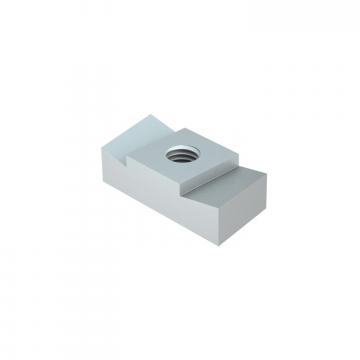

Slide nut A4
MS40SN M10 A4 1147134 50 piece

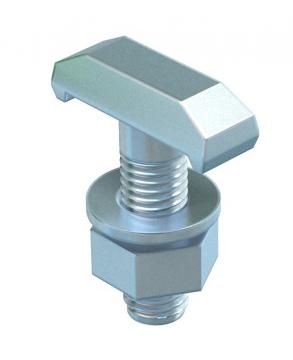

Hook-head screw A4
MS40HB M10x30 A4 1148160 50 piece - Downloads
-
Data sheet MS4022P6000A4 / 1121903 , 0.22MB , pdfBrochure Rail systems , 2.10MB , pdfEU declaration of conformity MS4022P6000A4 / 1121903 , 0.06MB , pdf
