- Product description
-
Product description

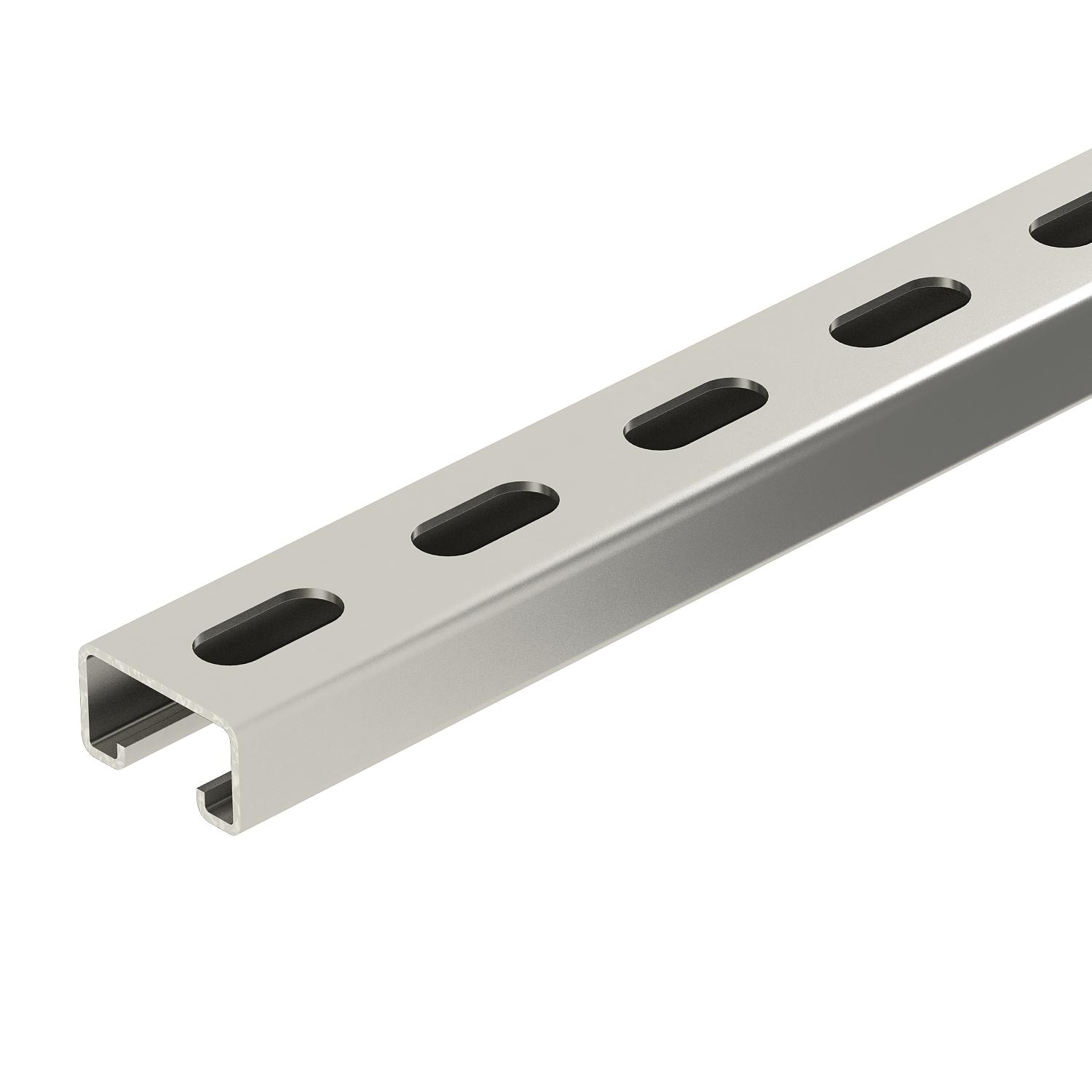

Heavy-duty C profile rail for individual installation of support constructions, e.g. for cable trays or as a panel for switchgear cabinets. Can also be used for cable routing, in conjunction with clamp clips with a U foot.
- Technical data
-
Technical data
Dimension 2000x40x22,5 Dimension L 2000 mm Drill hole spacing, centre 50 mm Height 22,5 mm Length 2000 mm Material Stainless steel Material thickness 2 mm Profile shape C profile Slot width 18 mm Static value A 1,74 cm² Static value ly 1,86 cm Static value lz 4,46 cm Static value Wy 1,05 cm² Static value Wz 2,23 cm² Surface Bright, treated Type of perforation Perforated back Version for Single profile Width 40 mm With perforation no With toothing no - All types
- Downloads
-
Data sheet MS4022P2000A4 / 1121963 , 0.19MB , pdfBrochure Rail systems , 2.10MB , pdfDeclaration of conformity MS4022P2000A4 / 1121963 , 0.06MB , pdf
