Mounting plate FS 225 | 115
morepic-1 morepic-2 video-1

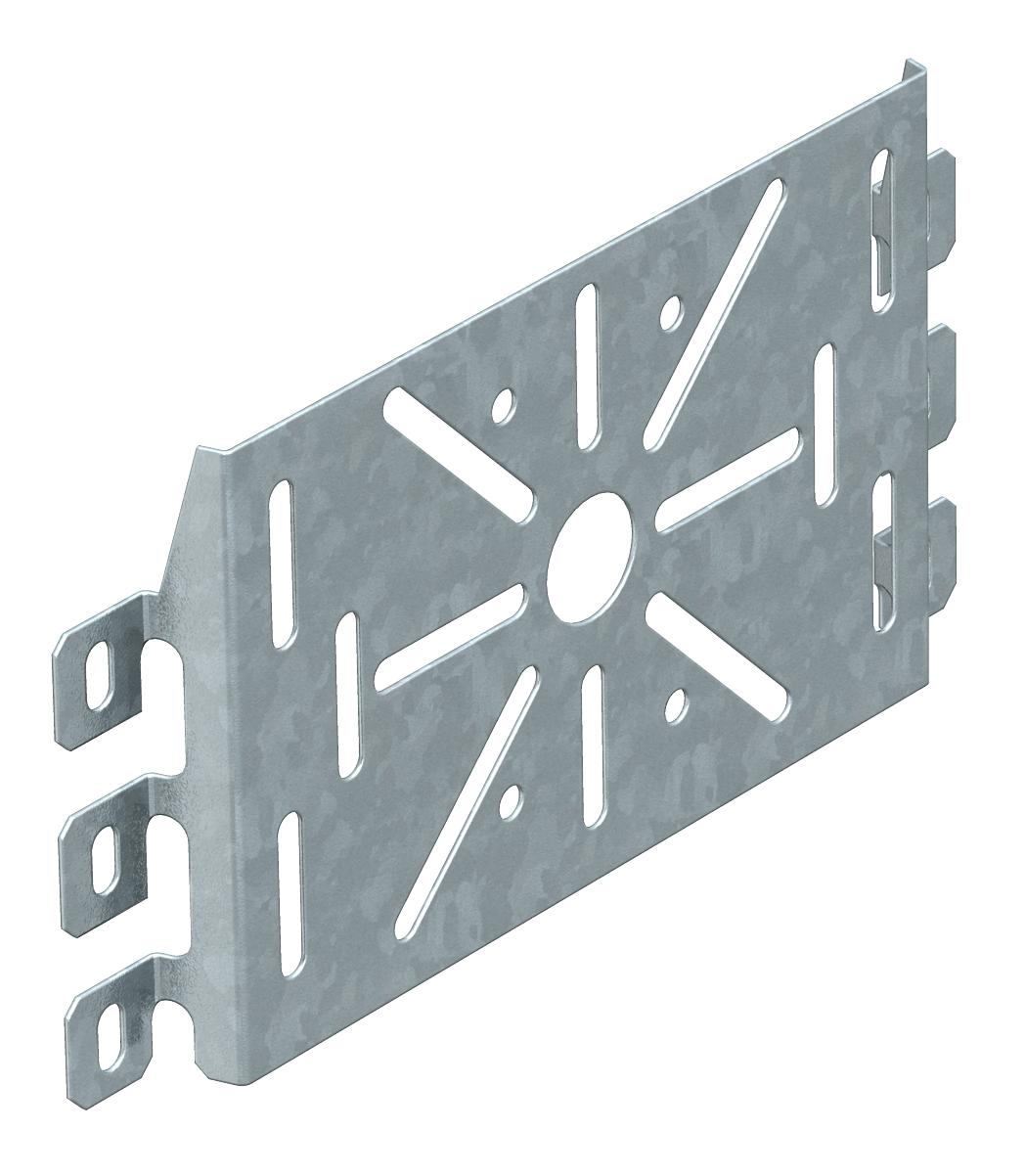

Mounting plate FS

Item no. 7084870 | EAN 4012195012245

7084870 / MP 225 UNI FS
225 mm
115 mm
Product description
Product description
Mounting plate for universal use on side rails of cable trays and mesh cable trays.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm
Technical data

Technical data

Colour zinc

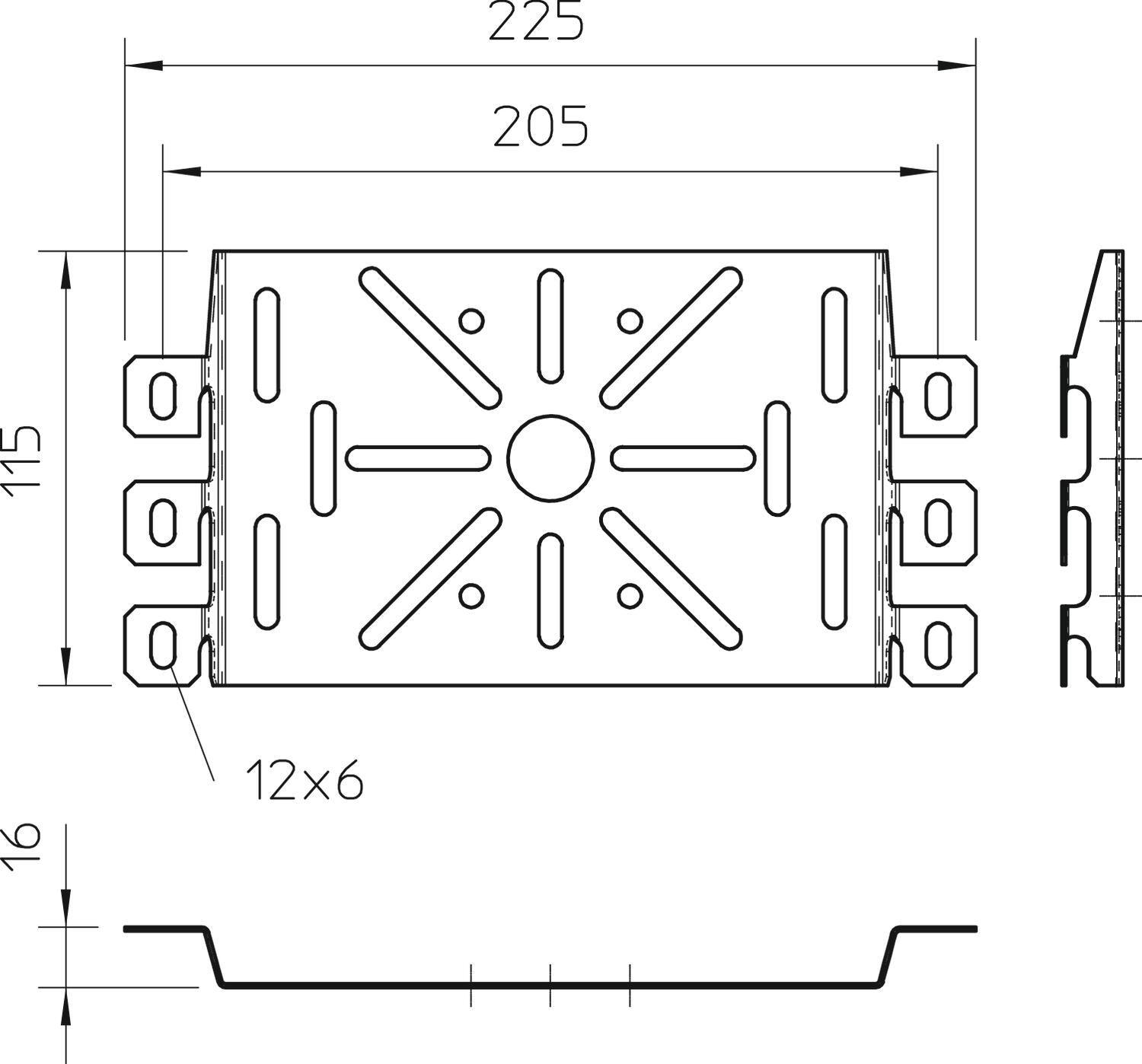

Dimension 225x115
Fastening type Screw fastening
Height 115 mm
Material Steel
Plate thickness 1 mm
Rustproof steel, pickled no
Surface Strip galvanized
Version for Horizontal
Width 8,86 in
Width 225 mm
All types

All types

Types Width Height Item no. Quantity SSU
MP 225 UNI FS 225 mm 115 mm 7084870
1 piece
