Mounting plate DD 170 | 120
morepic-1 morepic-2 video-1

Mounting plate DD

Item no. 7085114 | EAN 4012195163312

7085114 / MP UNI DD
170 mm
120 mm
Product description

Product description

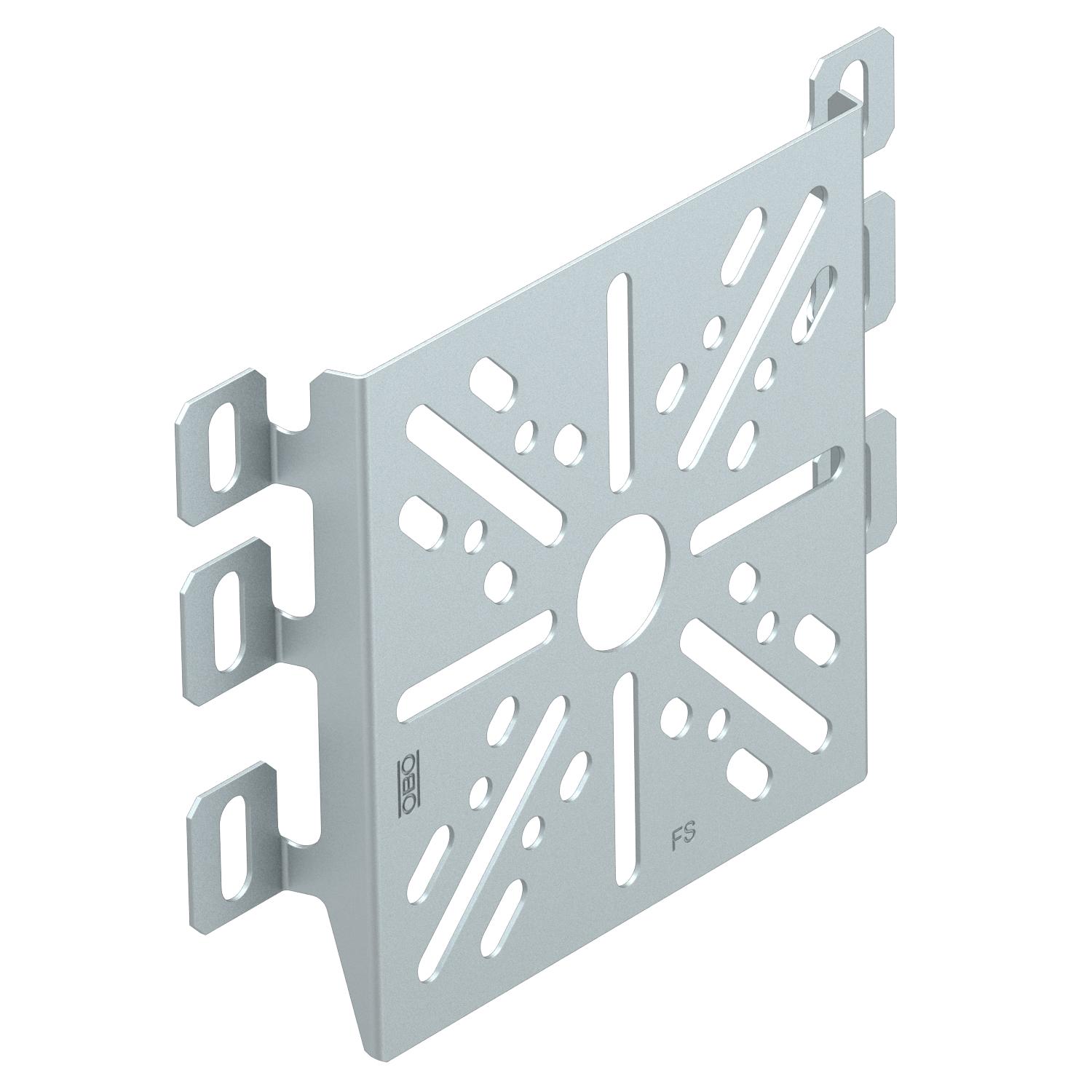

Mounting plate, for fastening on the side rail of cable support systems.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm
Technical data

Technical data

Dimension 170x120
Fastening type Screw fastening
Material Steel
Plate thickness 1 mm
Rustproof steel, pickled no
Surface Strip galvanised zinc/aluminium, Double Dip
Version for Horizontal

Dimensions

Height 120 mm
Width 6,69 in
Width 170 mm
All types

All types

Types Width Height Item no. Quantity SSU
MP UNI DD 170 mm 120 mm 7085114
1 piece
Downloads

Download

Download
Download

Declaration of conformity MP UNI DD / 7085114 , 0.15MB , pdf
Download
REACH Declaration of conformity MP UNI DD / 7085114 , 0.12MB , pdf
Download
RoHS Declaration of conformity MP UNI DD / 7085114 , 0.12MB , pdf
