Mounting plate, angled FS 200 | 240
morepic-1 morepic-2

Mounting plate, angled FS

Item no. 7084781 | EAN 4012196146956

7084781 / MP WI GR. FS
200 mm
240 mm
Product description

Product description

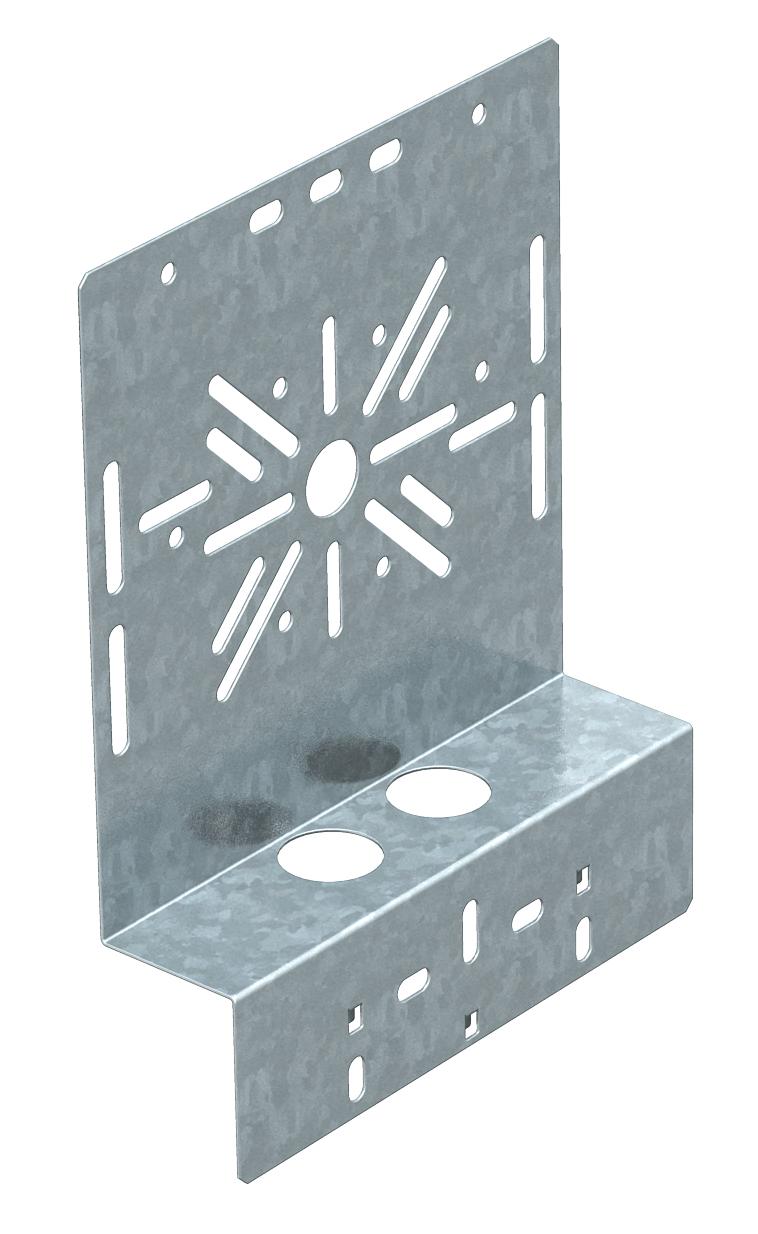

Angled mounting plate, for fastening on the side rail of the cable tray.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm
Technical data

Technical data

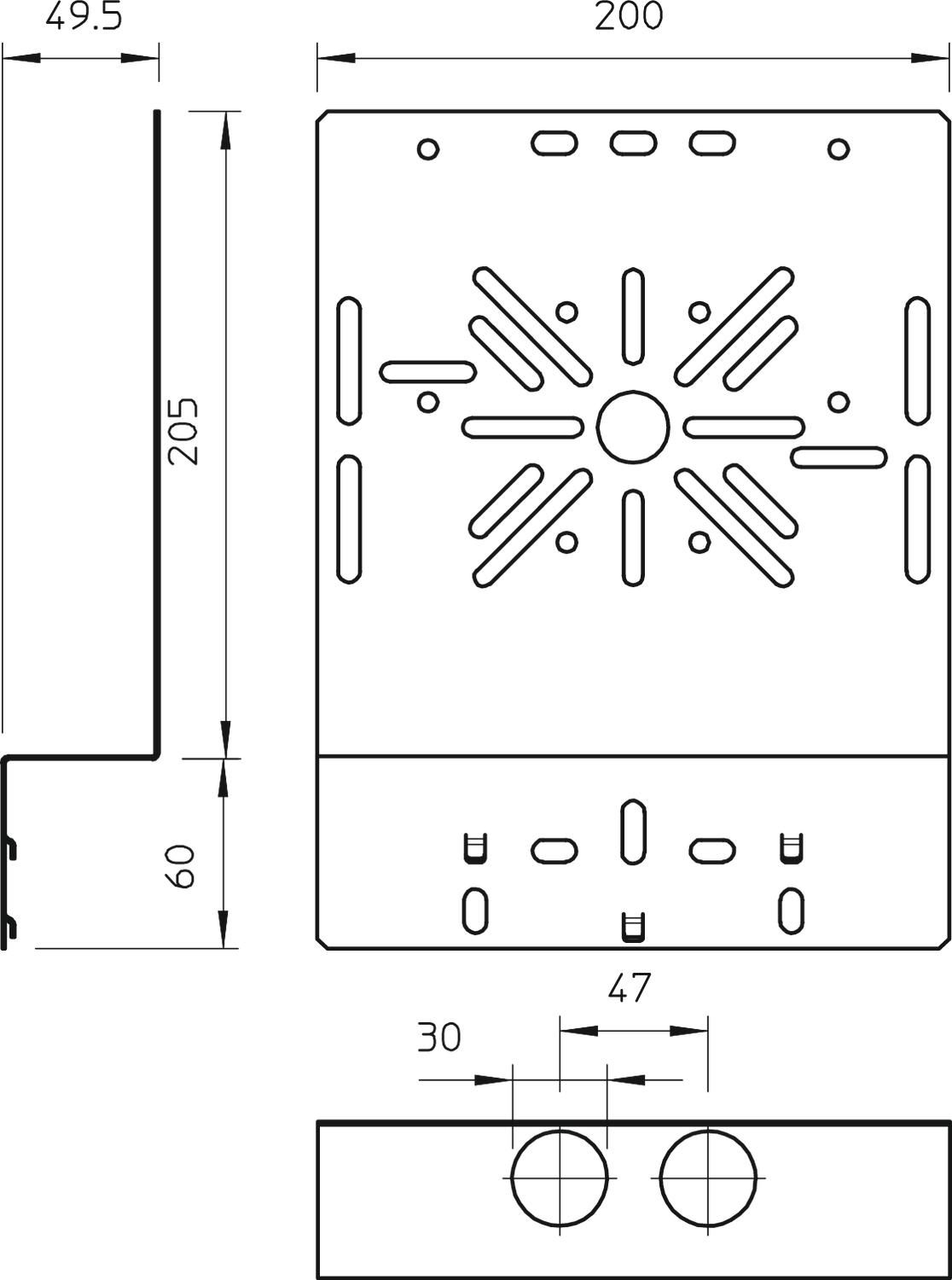

Dimension 265x200
Fastening type Screw fastening
Height 240 mm
Material Steel
Plate thickness 1 mm
Rustproof steel, pickled no
Surface Strip galvanized
Version for Vertical
Width 200 mm
Width 7,87 in
All types

All types

Types Width Height Item no. Quantity SSU
MP WI GR. FS 200 mm 240 mm 7084781
1 piece
Downloads

Download

Download
Download

Declaration of conformity MP WI GR. FS / 7084781 , 0.11MB , pdf
Download
REACH Declaration of conformity MP WI GR. FS / 7084781 , 0.12MB , pdf
Download
RoHS Declaration of conformity MP WI GR. FS / 7084781 , 0.12MB , pdf
Download

Download

MP WI GR. FS / 7084781
