Mounting plate A2 170 | 120
morepic-1 morepic-2 video-1

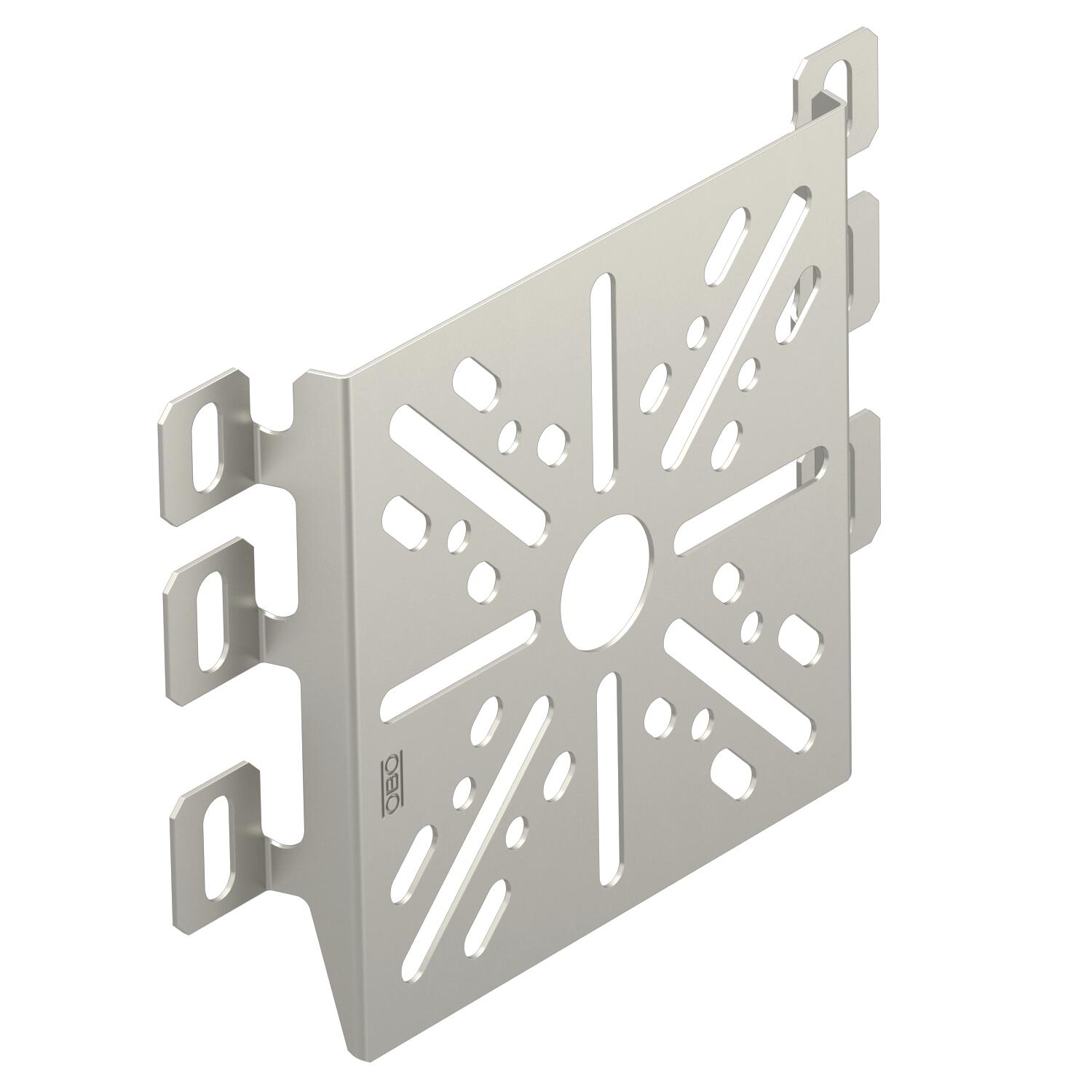

Mounting plate A2

Item no. 7085133 | EAN 4012195166320

7085133 / MP UNI A2
170 mm
120 mm
Product description
Product description
Mounting plate, for fastening on the side rail of cable support systems.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm
  • Mesh cable tray, slant height 35 mm
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm
Technical data

Technical data

Colour stainless steel

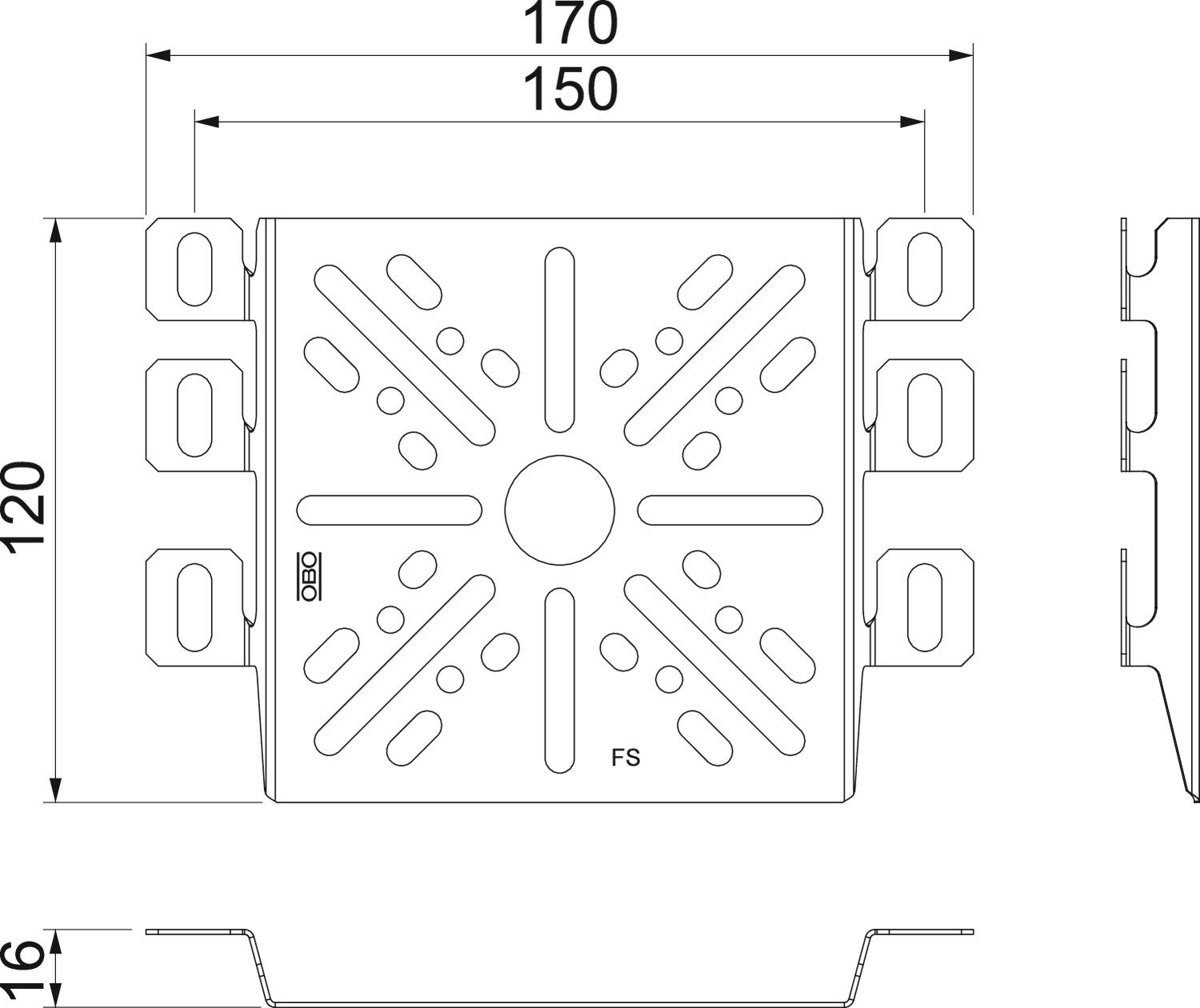

Dimension 170x120
Fastening type Screw fastening
Height 120 mm
Material Stainless steel
Plate thickness 1 mm
Rustproof steel, pickled no
Surface Bright, treated
Version for Horizontal
Width 170 mm
All types

All types

Types Width Height Item no. Quantity SSU
MP UNI A2 170 mm 120 mm 7085133
1 piece
Downloads

Download

Download
Download

EU declaration of conformity MP UNI A2 / 7085133 , 0.11MB , pdf
Download
REACH Declaration of conformity MP UNI A2 / 7085133 , 0.12MB , pdf
Download
RoHS Declaration of conformity MP UNI A2 / 7085133 , 0.12MB , pdf
Download

Download

MP UNI A2 / 7085133
