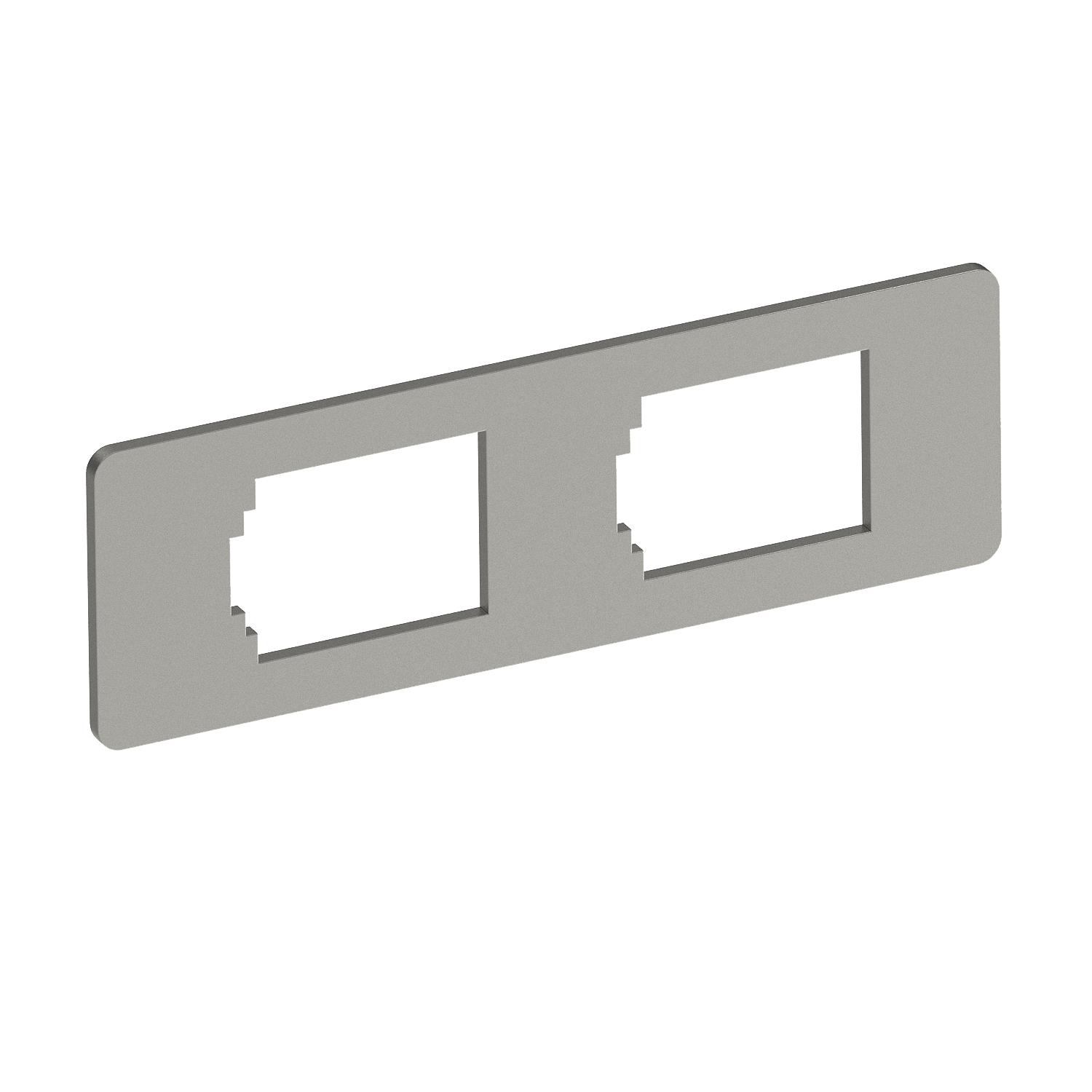

Mounting plate 2 x data socket type B for System 55
Item no. 7408703 | EAN 4012195693475
- Product description
-
Product description
Mounting plate to accept two connection sockets for data technology of the following types BTR: E-DAT Modul; Dätwyler: MS and MS-N module; Kerpen: VarioKeystone.

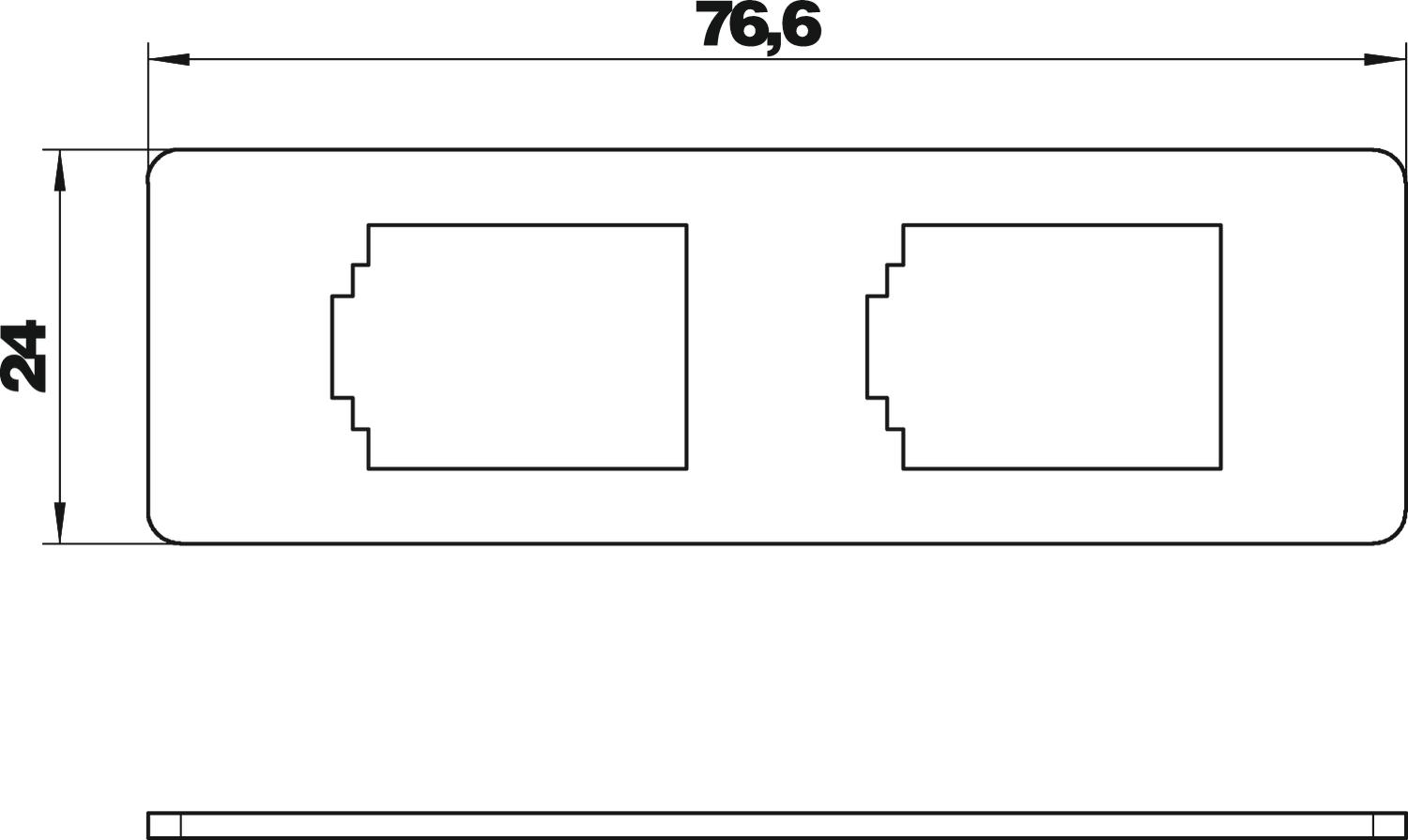

Dimensions of a mounting opening in mm: 19.35/21.55 x 14.85.
-
- Technical data
-
Technical data
Connection options 2 Anschlussbuchsen der Datentechnik folgender Typen BTR: E-DAT Modul; Dätwyler: MS und MS-N Modul; Kerpen: VarioKeystone Decouplable no Dimension 77x24x1,5 Fastening type Lockable Floor covering protection frame no Floor plate no Heavy-duty version no Installation opening for on-floor tank no Labelling panel no Lowerable to be flush-floor no Material Stainless steel Seal installation option no Strain relief option yes Suitable for cavity floor installation yes Suitable for raised floor installation yes Suitable for screed-covered underfloor ducts yes Suitable for screed-flush closed underfloor ducts yes Suitable for underfloor ducts yes With floor covering recess no - All types
- Downloads
-
Label approval VDE symbol approval, GES , 0.12MB , pdfNo invitation to tender text is available for this product.
