- Product description
-
Product description

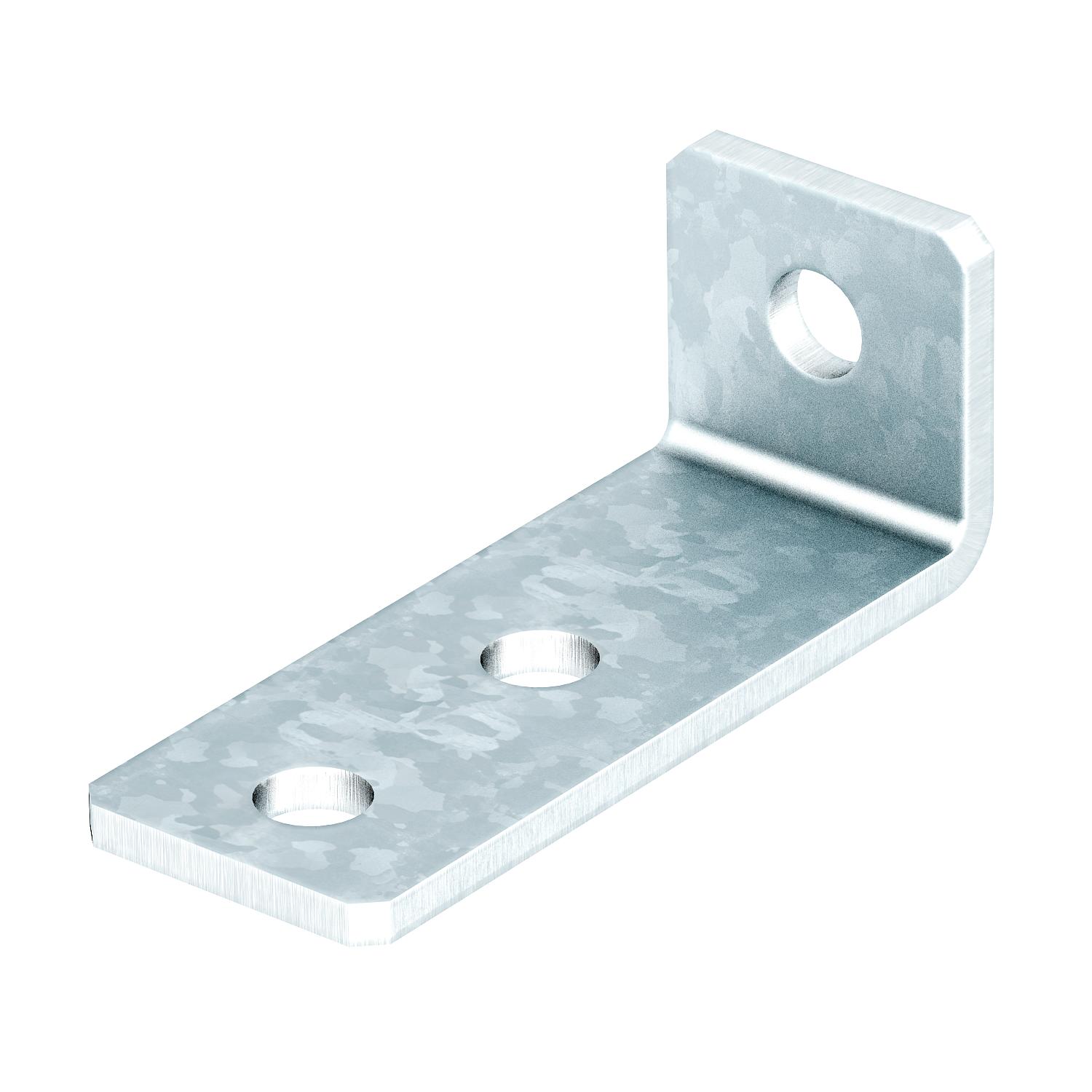

Mounting bracket with three holes to connect profile rails 41 x 41 mm and 41 x 21 mm at an angle of 90°.
- Technical data
-
Technical data

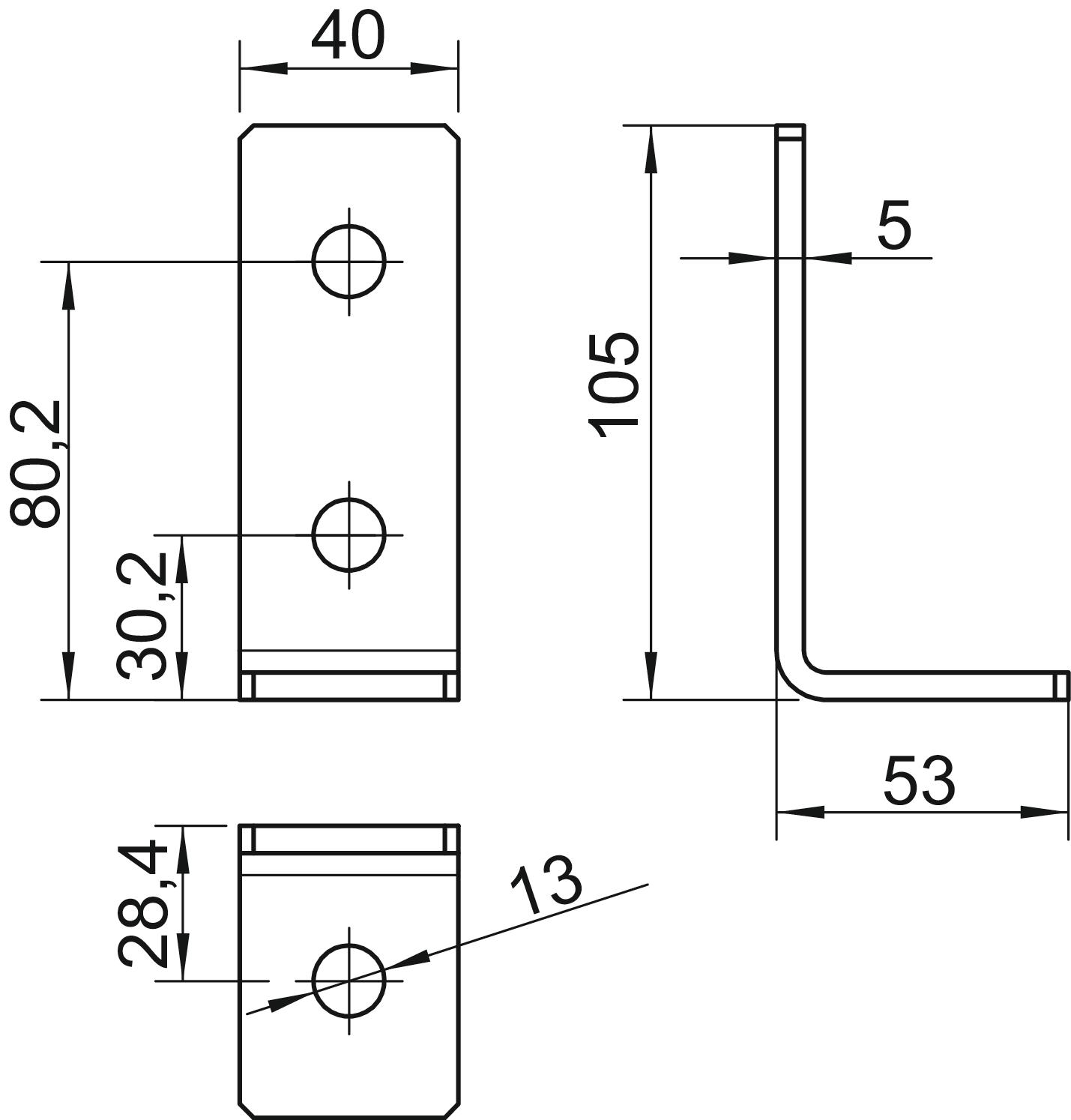

Dimension 105x53x40x5 Height 53 mm Hole size 13 mm Length 105 mm Material Steel Material thickness 5 mm Rustproof steel, pickled no Suitable for profile shapes C profile Surface Hot-dip galvanised Version for 90° angle Width 40 mm With screw accessories no - All types
- Downloads
-
Data sheet GMS 3 VW 90 FT / 1124661 , 0.17MB , pdfBrochure Rail systems , 2.10MB , pdfDeclaration of conformity GMS 3 VW 90 FT / 1124661 , 0.04MB , pdfREACH Declaration of conformity GMS 3 VW 90 FT / 1124661 , 0.12MB , pdfRoHS Declaration of conformity GMS 3 VW 90 FT / 1124661 , 0.12MB , pdf
