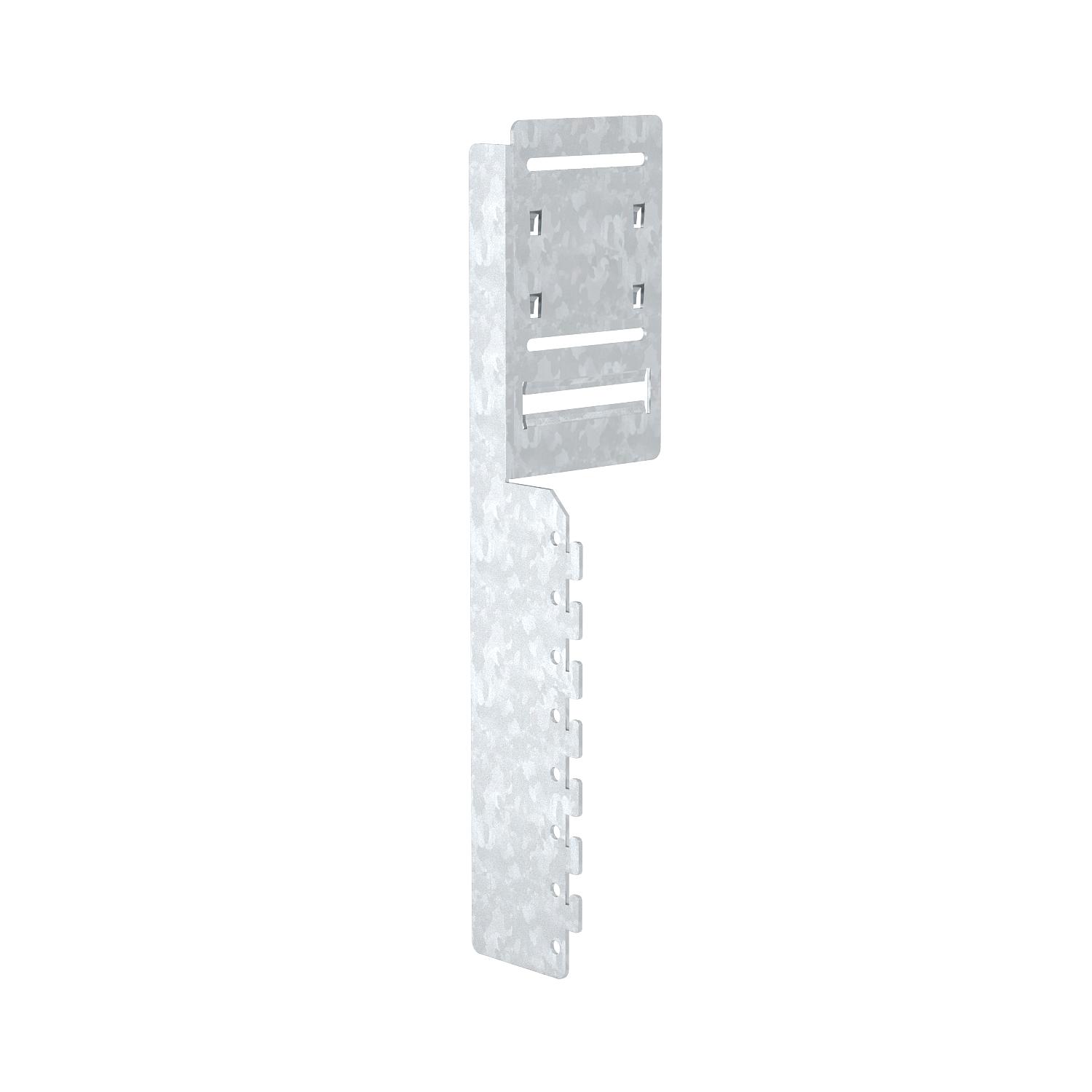

Mounting and connection profile for convection grids, trunking height 70 mm
Item no. 6279822 | EAN 4012195680796
- Product description
-
Product description
Mounting and connection profile for panel mounting of device installation trunking in conjunction with vertical convection grids. The installation and connection profile is locked onto the fixing panel and accepts the profile connector, type PVV/N2... vertically. Please observe the trunking dimensions.
The mesh slats are simply attached to the slat holder.
-
- Technical data
-
Technical data
Dimension 99x360x68 Fastening type Lockable for duct dimension 70x170 Material Steel Surface Strip galvanized Trunking mounting Attach and screw Version for Wall mounting Dimensions
Height 68 mm Length 360 mm Width 99 mm - All types
- Downloads
-
Data sheet MVKG70170 / 6279822 , 0.25MB , pdfDeclaration of conformity MVKG70170 / 6279822 , 0.13MB , pdfUK Declaration of Conformity MVKG70170 / 6279822 , 0.14MB , pdfNo invitation to tender text is available for this product.
