Product description

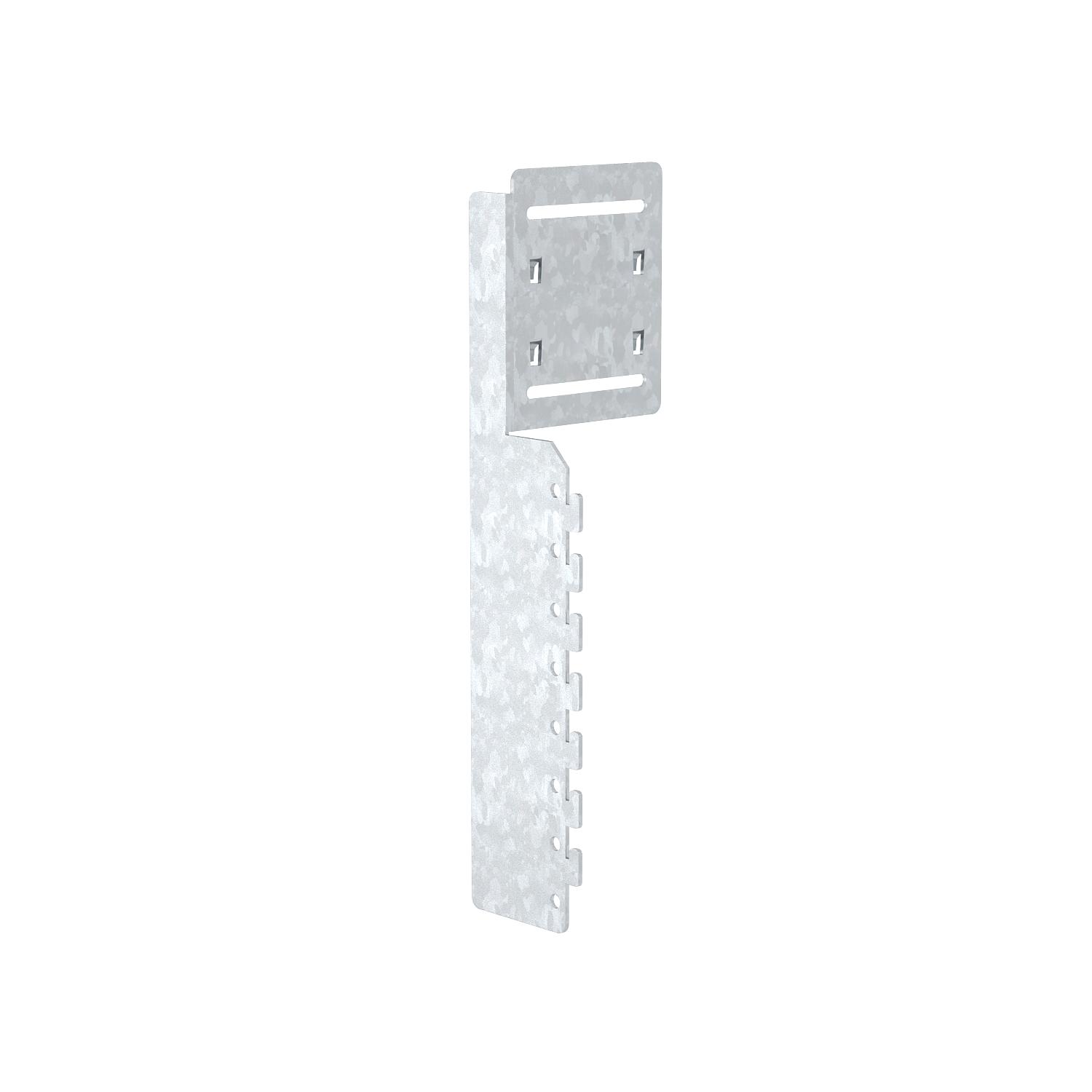

Mounting and connection profile for panel mounting of device installation trunking in conjunction with vertical convection grids. The installation and connection profile is locked onto the fixing panel and accepts the profile connector, type PVV/N2... vertically. Please observe the trunking dimensions.
The mesh slats are simply attached to the slat holder.
- Technical data
-
Technical data
Dimension 99x320x68 Fastening type Lockable for duct dimension 70x130 Material Steel Surface Strip galvanized Trunking mounting Attach and screw Version for Wall mounting Dimensions
Height 68 mm Length 320 mm Width 99 mm - All types
- Downloads
-
Data sheet MVKG70130 / 6279820 , 0.23MB , pdfDeclaration of conformity MVKG70130 / 6279820 , 0.13MB , pdfUK Declaration of Conformity MVKG70130 / 6279820 , 0.14MB , pdf
