Montageplatte, angled DD 120 | 210
morepic-1 morepic-2 video-1

Montageplatte, angled DD

Item no. 7085111 | EAN 4012195163305

7085111 / MP WI KL. DD
120 mm
210 mm
Product description

Product description

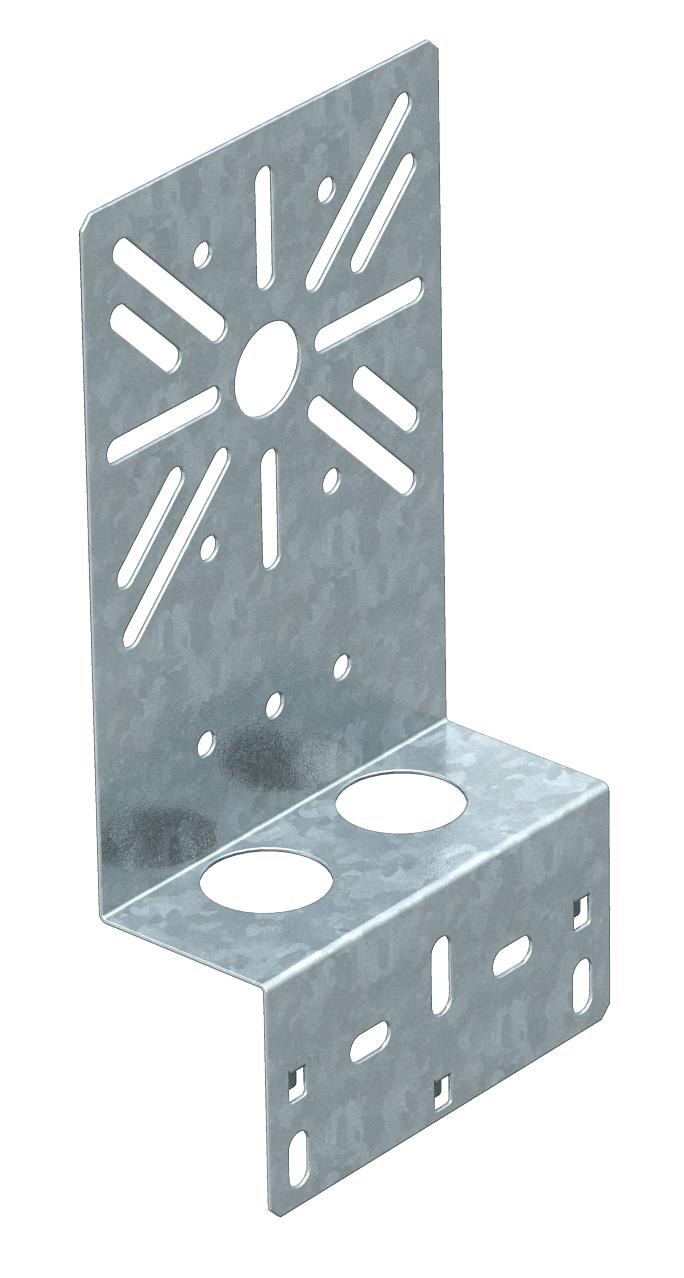

Angled mounting plate, for fastening on the side rail of the cable tray.

  • Communautés Européennes, EC declaration of conformity according to EC directives
  • New at OBO
  • Cable tray, side height 35 mm
  • Cable tray, side height 60 mm
  • Cable tray, side height 85 mm
  • Cable tray, side height 110 mm
Technical data

Technical data

Dimension 210x120
Fastening type Screw fastening
Material Steel
Plate thickness 1 mm
Rustproof steel, pickled no
Surface Strip galvanised zinc/aluminium, Double Dip
Version for Vertical

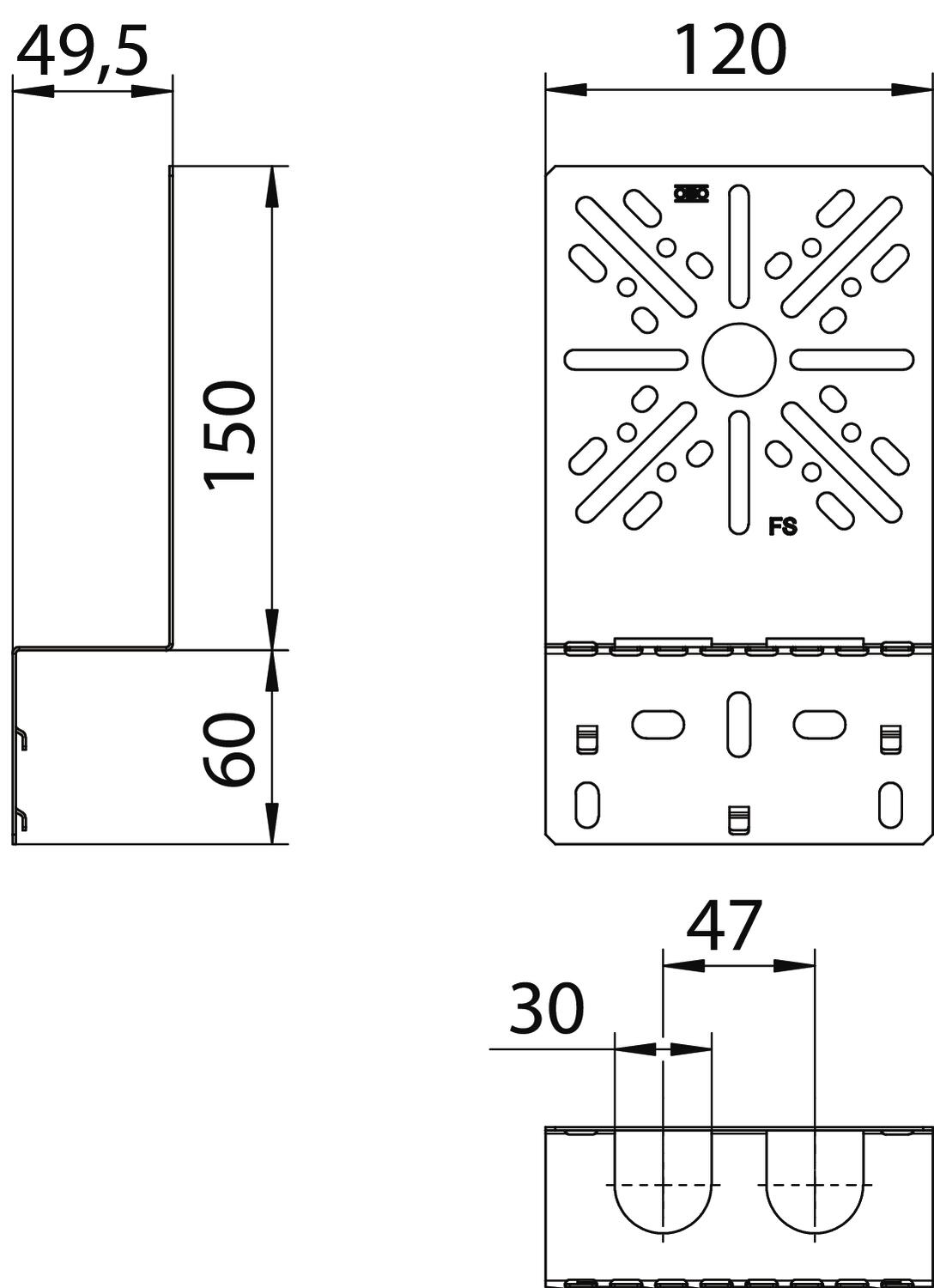

Dimensions

Height 210 mm
Width 7,87 in
Width 120 mm
All types

All types

Types Width Height Item no. Quantity SSU
MP WI KL. DD 120 mm 210 mm 7085111
1 piece
