Modul 45connect® connector
Item no. 6117198 | EAN 4012195438113
- Product description
-

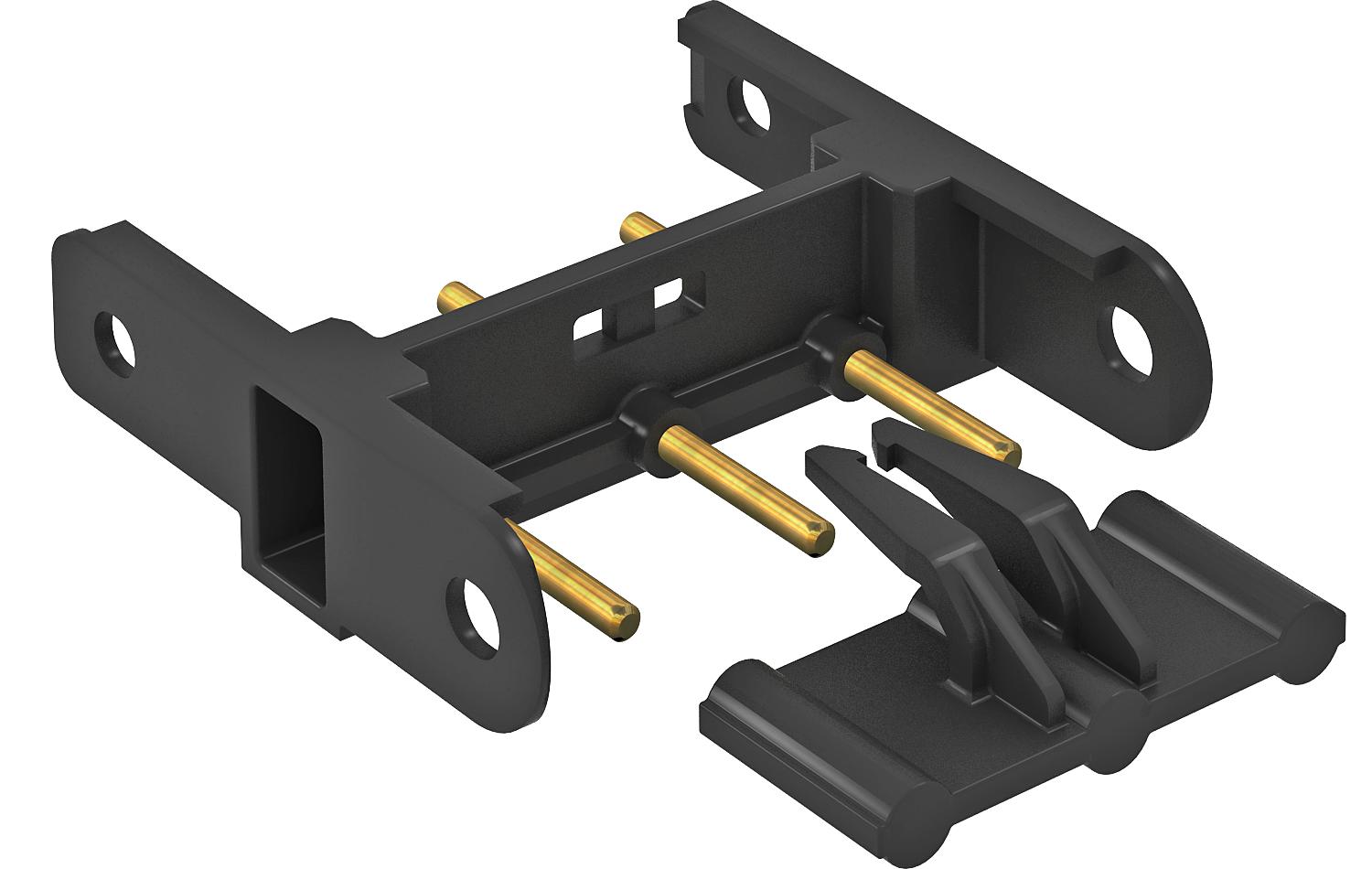

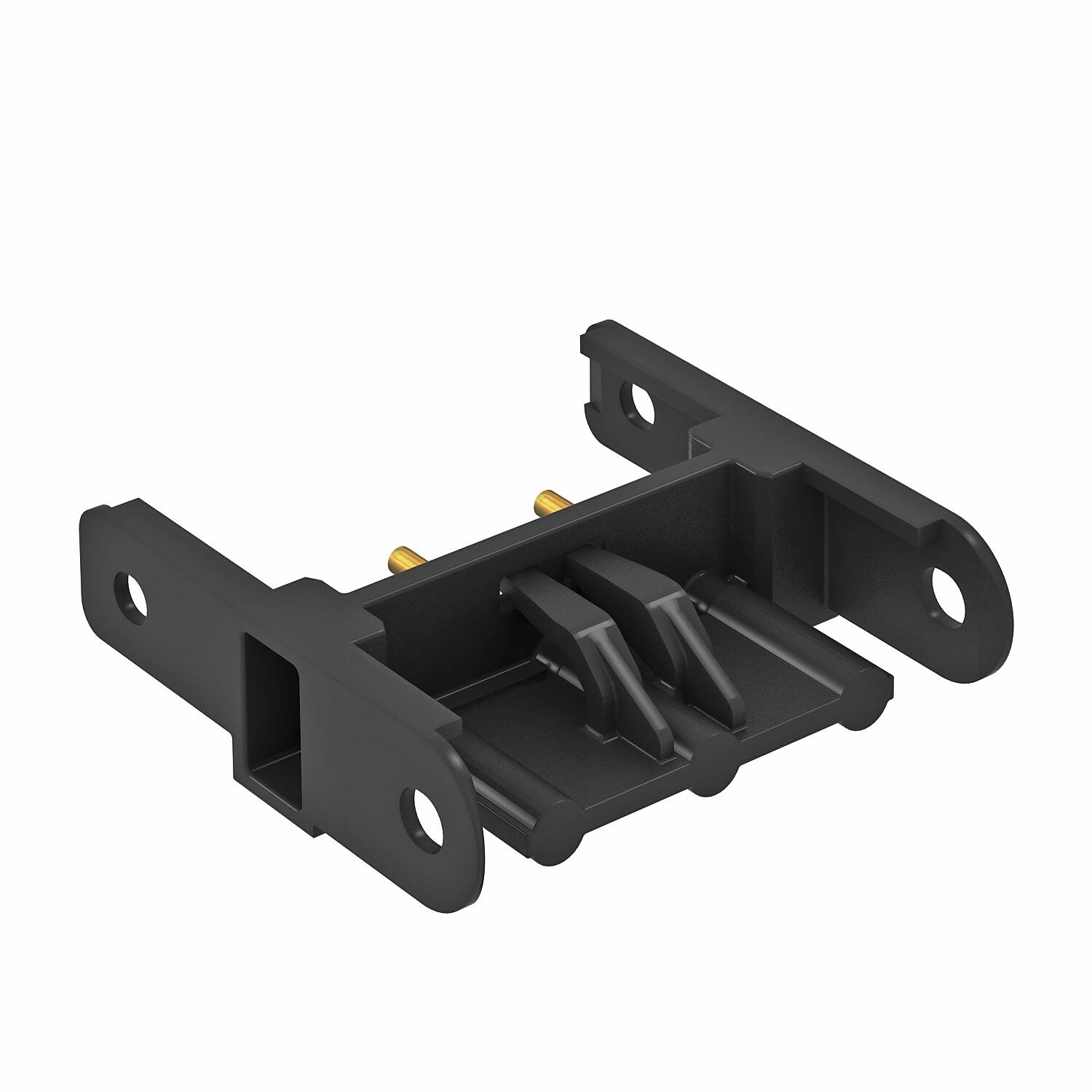

Product descriptionConnection adapter for combining STD-D0C / STD-D3C or STD-F0C / STD-F3C sockets.
Note: Socket combinations with two connection adapters at most are permitted.
-
- Technical data
-
Technical data

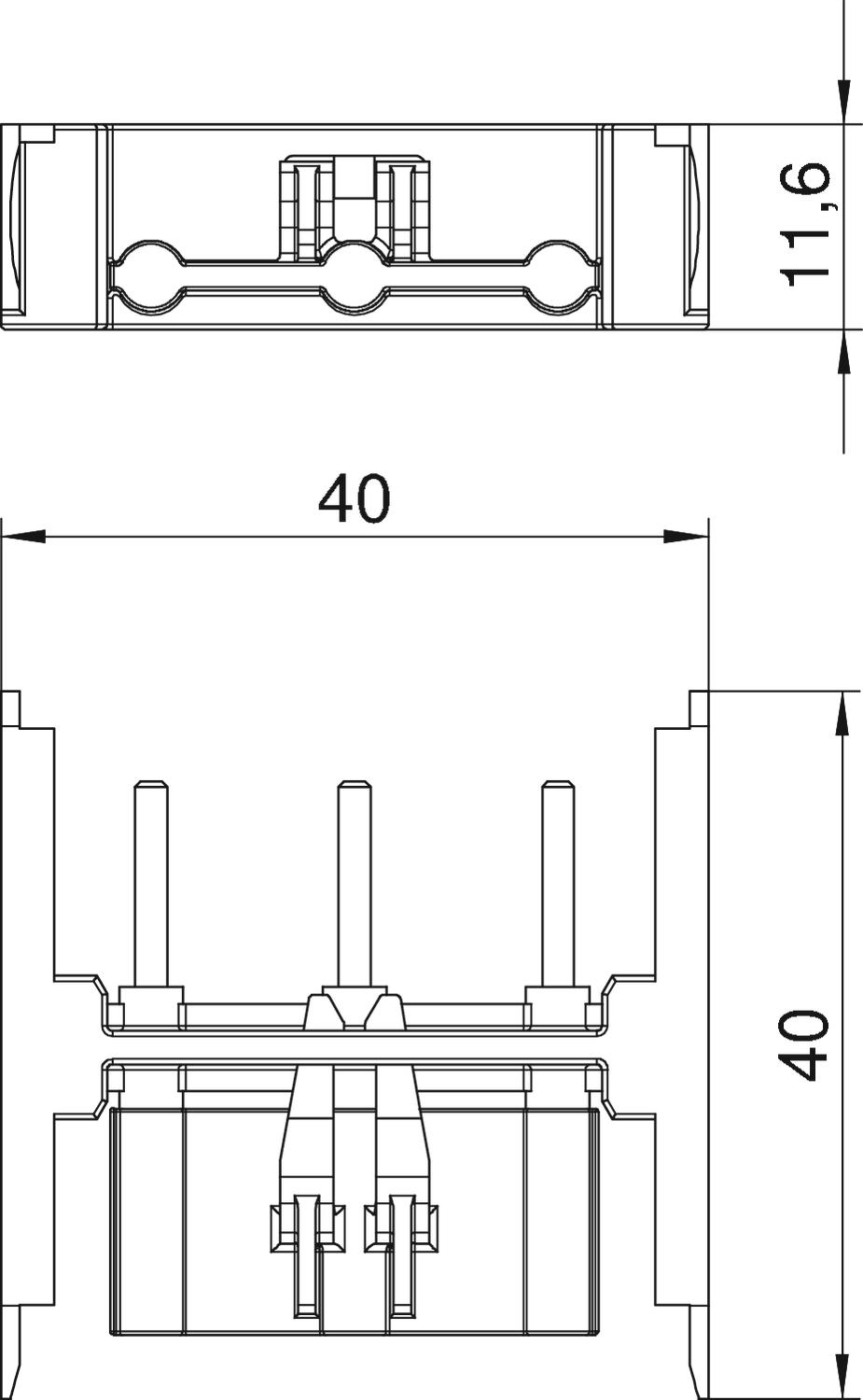

Astro range no Closable no Colour Black Depth 40 mm Ejection mechanism no Halogen-free yes Height 11,6 mm Hinged cover no Insulated installation no Material Polyamide Nominal current 16 A Nominal voltage 250 V Random generator no Surge protection no Transparent no Width 40 mm With fine-wire fuse no With functional lighting no With integrated USB power supply no With on/off switch no With orientation lighting no - All types
- Downloads
-
Data sheet VB-SKS S / 6117198 , 0.17MB , pdfCatalogue Installation systems , 28.45MB , pdfREACH Declaration of conformity VB-SKS S / 6117198 , 0.12MB , pdfRoHS Declaration of conformity VB-SKS S / 6117198 , 0.12MB , pdfNo invitation to tender text is available for this product.
