Mineral fibre plate, pre-coated

Item no. 7202297 | EAN 4012196649594

Item no. / Types

Height

Product description

Product description

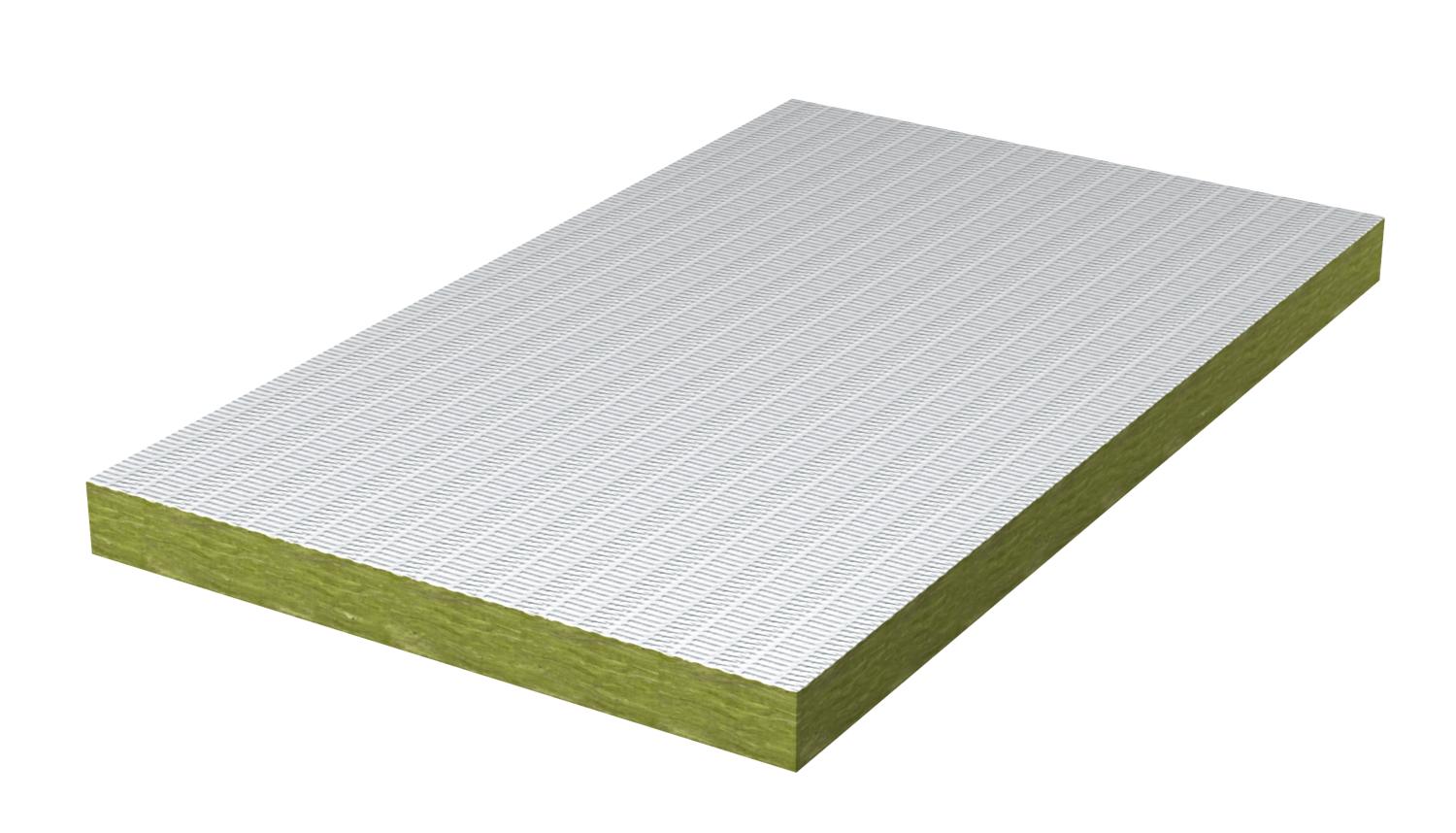

Mineral fibre plate, pre-coated with the PYROCOAT® ASX ablation coating, as the basis for the PYROPLATE® Fibre soft insulation system. 60 mm plate for insulation according to European approval. For interior application.

Technical data

Technical data

Accessories required	yes

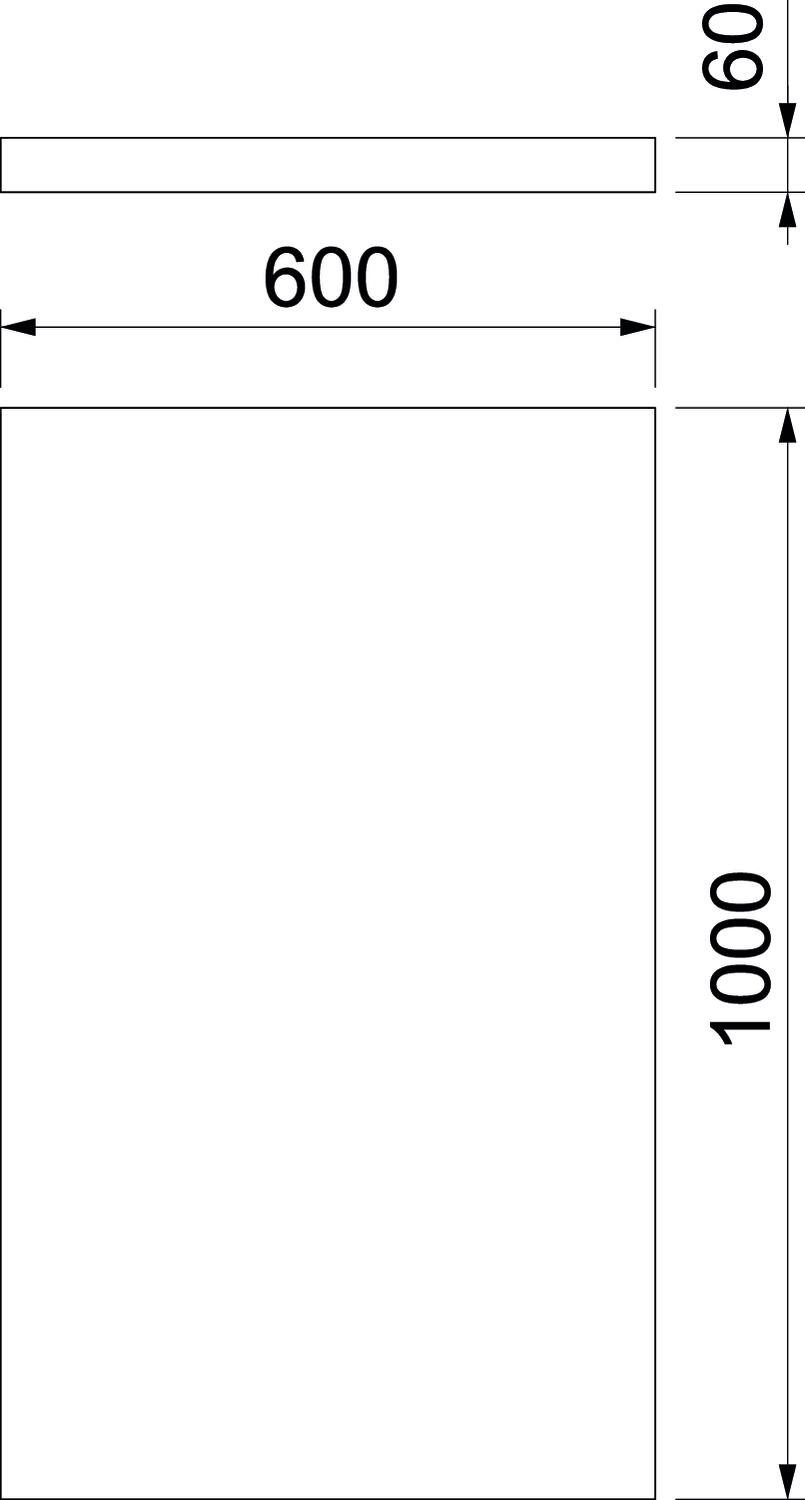

Dimension	1000x600x60
Fire protection version	Plate insulation
Height	60 mm

Length	1000 mm
Material	Mineral fibres
Shape	Rectangular
Width	600 mm

All types

All types

Types	Height	Item no.	Quantity	SSU
PSX-P	50 mm	7202295	piece	1 piece
PSX-P60	60 mm	7202297	piece	1 piece

Accessories

System accessories

Products	Types	Item no.	Quantity	SSU
Ablation coating PYROCOAT® in a cartridge	ASX-K	7202310	piece	1 piece
Ablation coating PYROCOAT® in a bucket	ASX-E	7202312	piece	1 piece
Bandage for insulation	FSB-WB 1.5	7203163	piece	1 piece
Bandage for insulation	FSB-WB BS	7203165	piece	1 piece
Section insulation for metal pipes	MIW-MA	7202308	piece	2 piece
PYROCOMB® Intube pipe shell, Ø 120 mm	CTS 12150	7204300	piece	1 piece
Calcium silicate plate	KSI-P1	7202283	piece	1 piece
Calcium silicate plate	KSI-P2	7202904	piece	1 piece
Calcium silicate plate	KSI-P3	7202912	piece	1 piece
Identification plate DE	KS-S DE	7205425	piece	1 piece

Mounting accessories

Products	Types	Item no.	Quantity	SSU
Aluminium adhesive tape for path insulation	MIW-AT	7202305	piece	1 piece
Winding wire for path insulation	MIW-TD	7202309	piece	1 piece
Support construction for insulations, with bracket	SKA 05 VZ	7202436	piece	1 piece
Support construction for insulations, with pendulum suspension	SKP 05 VZ	7202446	piece	1 piece
