Metal spreading anchor
Item no. 3484629 | EAN 4012195683353
- Product description
-
Product descriptionAreas of application: gas concrete, lightweight concrete, Poroton, pumice, plaster, hollow brick and full brick. Can be knocked into porous concrete (gas concrete) of low resistance without drilling. Superbly suited for areas subjected to high temperatures.
-
- Technical data
-
Technical data

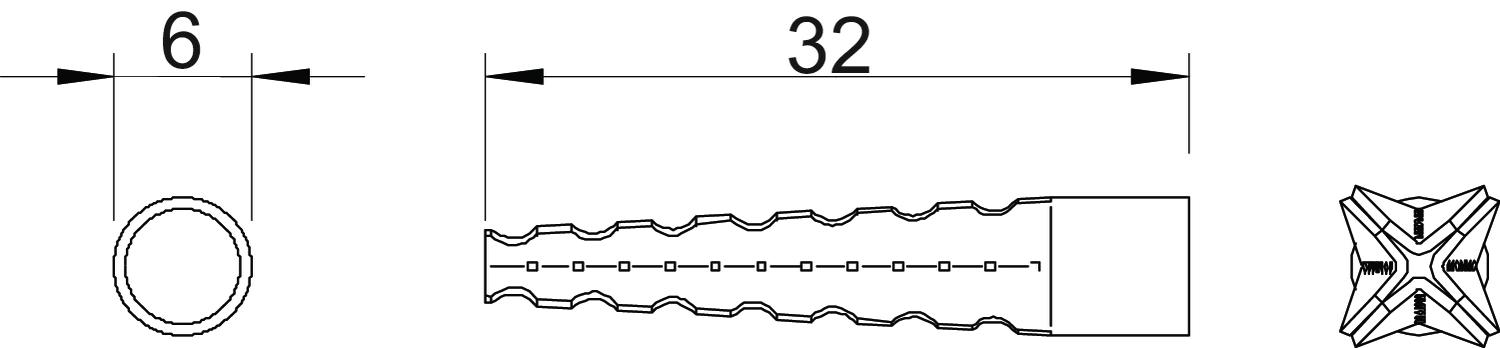

Diameter 6 mm Dimension 6x32mm Dimension D 6 mm Dimension L 32 mm Drill hole depth 38 mm Drill hole diameter, max. 9 mm Drill hole diameter, min. 7 mm Length 32 mm Material Steel Suitable for fastening with cable ties no Suitable for hexagonal wood screw no Suitable for material Porous concrete Surface Electrogalvanized, transparently passivated Version for Spreading anchor With bolts no Wood screws 5-6 - All types
- Downloads
-
Data sheet MD 6 GTP / 3484629 , 0.20MB , pdfCatalogue Fastening materials , 19.78MB , pdfEU declaration of conformity MD 6 GTP / 3484629 , 0.05MB , pdfREACH Declaration of conformity MD 6 GTP / 3484629 , 0.12MB , pdfRoHS Declaration of conformity MD 6 GTP / 3484629 , 0.13MB , pdf
