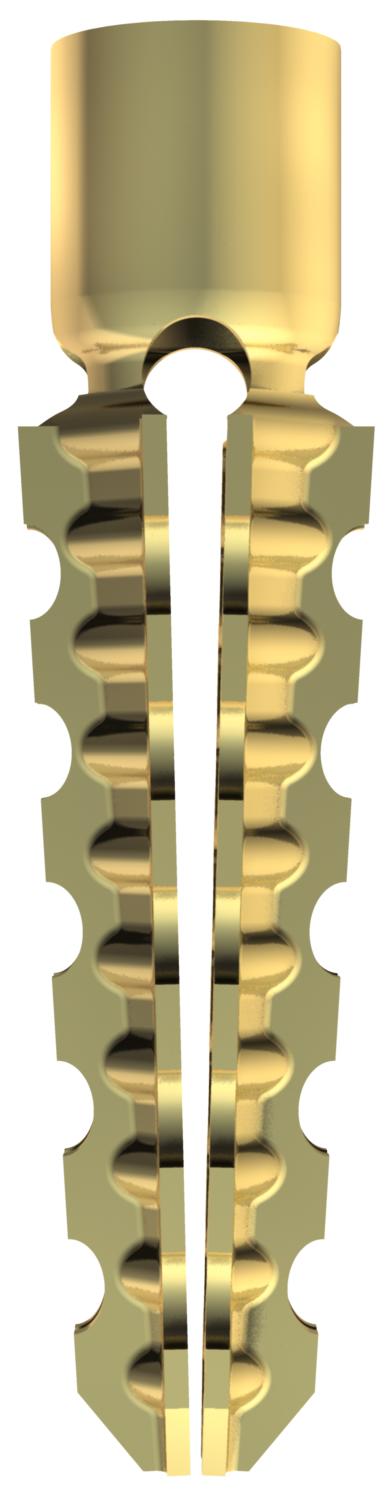

Metal spreading anchor

Item no. 3484602 | EAN 4012195683414

Item no. / Types

Diameter

Length

Drill hole depth

Drill hole diameter, min.

Product description

Product description

Areas of application: gas concrete, lightweight concrete, Poroton, pumice, plaster, hollow brick and full brick. Can be knocked into porous concrete (gas concrete) of low resistance without drilling. Superbly suited for areas subjected to high temperatures.

Technical data

Technical data

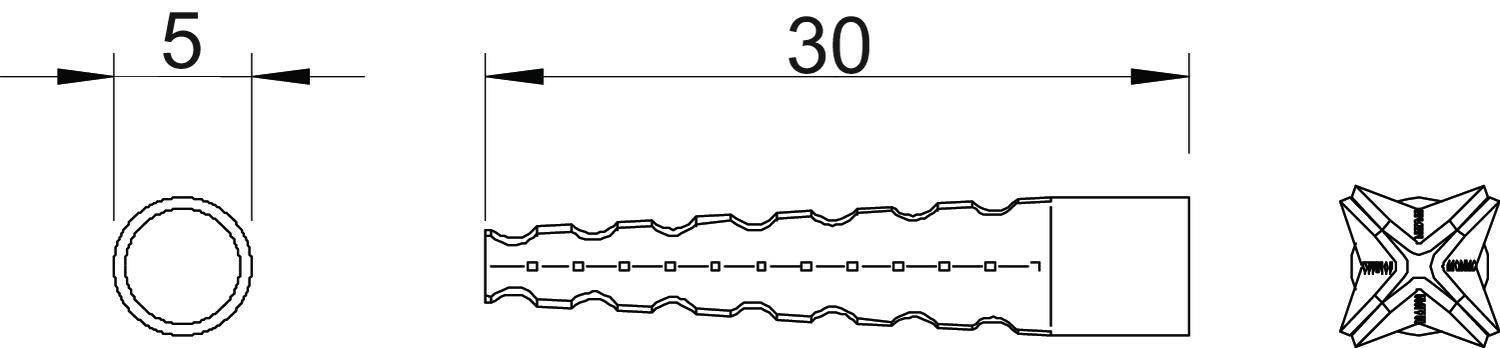

Diameter	5 mm
Dimension	5x30mm
Dimension D	5 mm
Dimension L	30 mm
Drill hole depth	35 mm
Drill hole diameter, max.	7 mm
Drill hole diameter, min.	5 mm
Length	30 mm

Material	Steel
Suitable for fastening with cable ties	no
Suitable for hexagonal wood screw	no
Suitable for material	Porous concrete
Surface	Electrogalvanized, transparently passivated
Version for	Spreading anchor
With bolts	no
Wood screws	4-5
