Mesh cable tray GR-Magic® 55 A4

Item no. / Types

Length	3000 mm

Width

Height	55 mm

Wire diameter

Usable cross-section

Maintain electrical functions

Product description

Product description

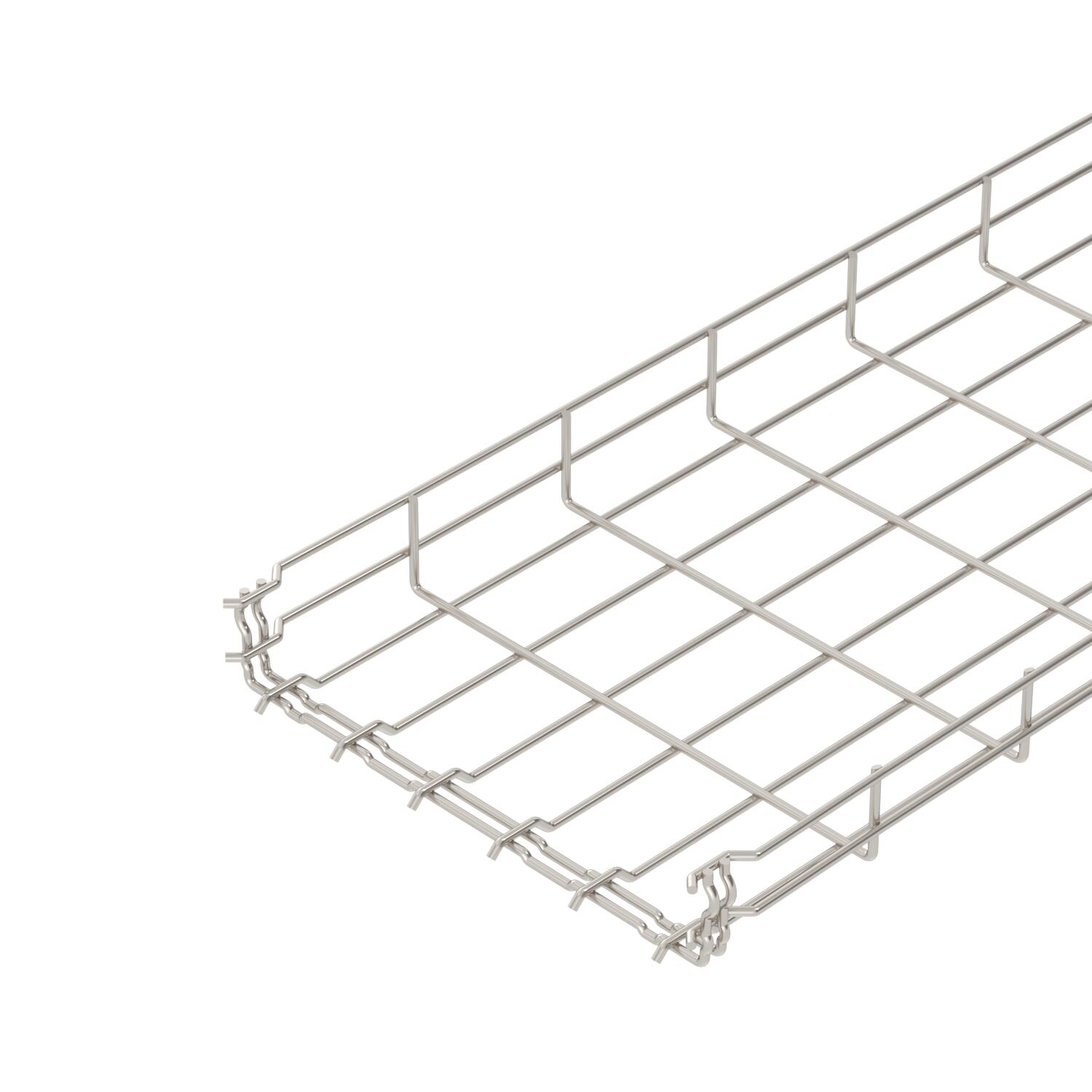

Mesh cable tray with shaped connector of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Technical data

Colour	stainless steel
Connector version	Integrated connector
CO₂ Footprint (GWP) Cradle-to-Gate	9,769 kg CO₂e / 1 Meter

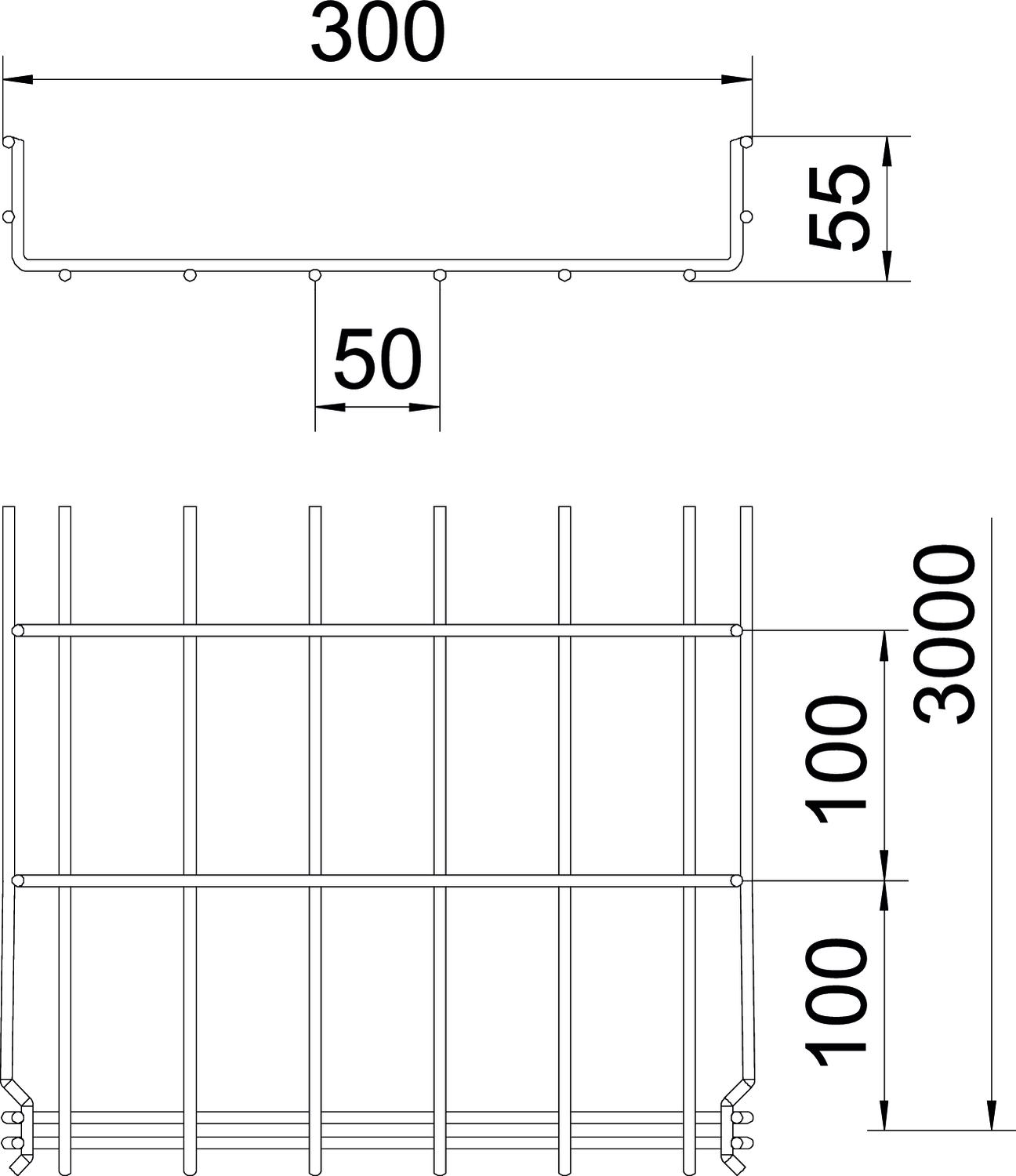

Dimension	55x300x3000
Dimension B	300 mm
Dimension H	58 mm
Fire protection	Maintenance of electrical function of cable-specific support structure
Height	55 mm
Height	2,17 in
Integrated partition	Without
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	yes
Material	Stainless steel
Profile shape	U-shaped

Rustproof steel, pickled	yes
Screwless connector	yes
Support spacing 1.0 m	0,7 kN/m
Support spacing 1.5 m	0,5 kN/m
Support spacing 2.0 m	0,25 kN/m
Support spacing 2.5 m	0,2 kN/m
Surface	Bright, treated
Type of connector, cable support system	Click fastening
Usable cross-section	12900 mm²
Usable cross-section	129 cm²
Wide-span version	no
Width	11,81 in
Width	300 mm
Wire diameter	4,8 mm

Technical data

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
GRM 55 50 A4	3000 mm	50 mm	55 mm	3.9 mm	16 cm²	yes	6001087	m	3 m
GRM 55 100 A4	3000 mm	100 mm	55 mm	3.9 mm	40 cm²	yes	6001088	m	3 m
GRM 55 150 A4	3000 mm	150 mm	55 mm	3.9 mm	63 cm²	yes	6001090	m	3 m
GRM 55 200 A4	3000 mm	200 mm	55 mm	3.9 mm	87 cm²	yes	6001091	m	3 m
GRM 55 300 A4	3000 mm	300 mm	55 mm	4.8 mm	129 cm²	yes	6001093	m	3 m
GRM 55 400 A4	3000 mm	400 mm	55 mm	4.8 mm	175 cm²	yes	6001095	m	3 m
GRM 55 500 A4	3000 mm	500 mm	55 mm	4.8 mm	220 cm²	no	6001097	m	3 m
GRM 55 600 A4	3000 mm	600 mm	55 mm	4.8 mm	265 cm²	no	6001099	m	3 m
