Mesh cable tray GR-Magic® 55 A2

Item no. / Types

Length	3000 mm

Width

Height	55 mm

Wire diameter

Usable cross-section

Maintain electrical functions

Product description

Product description

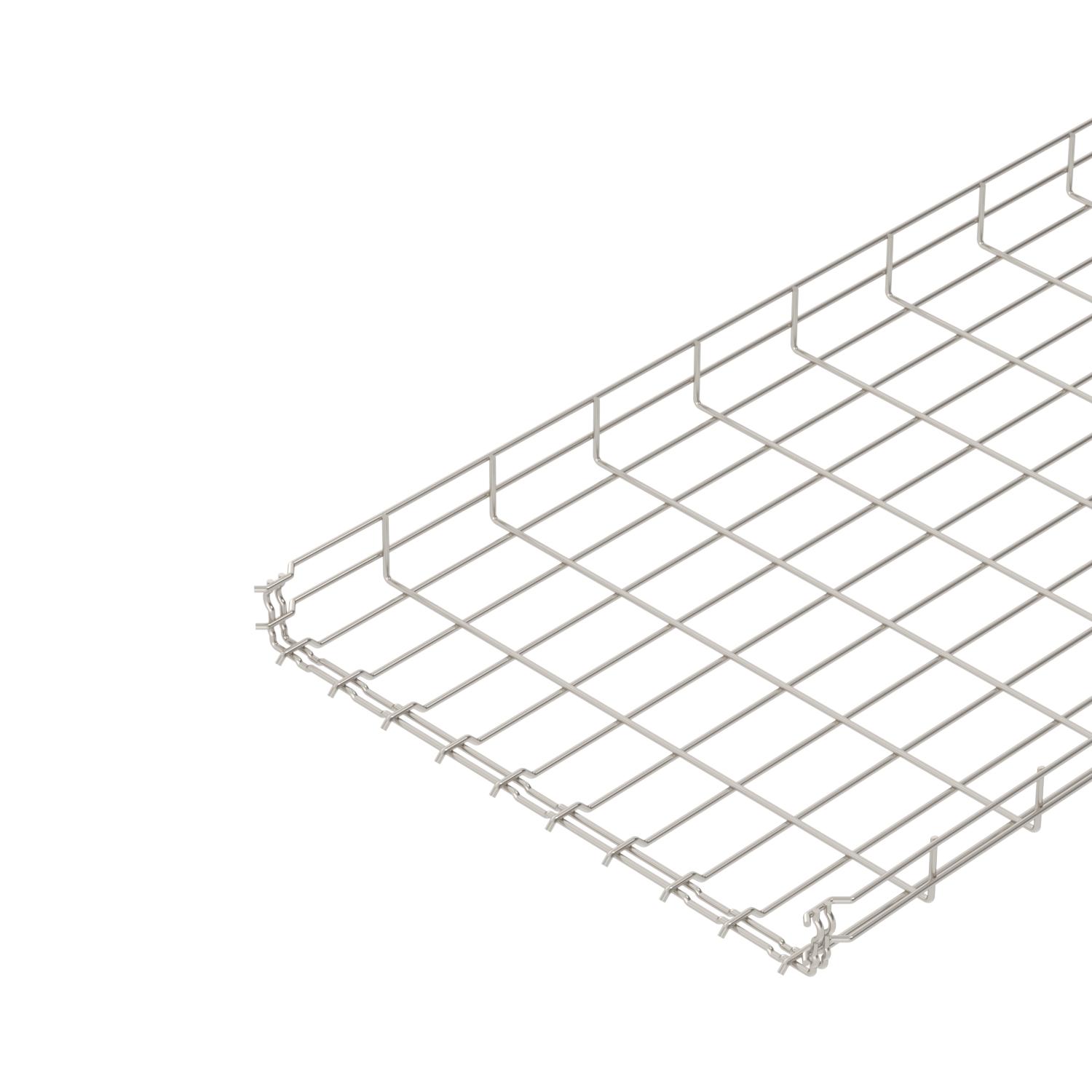

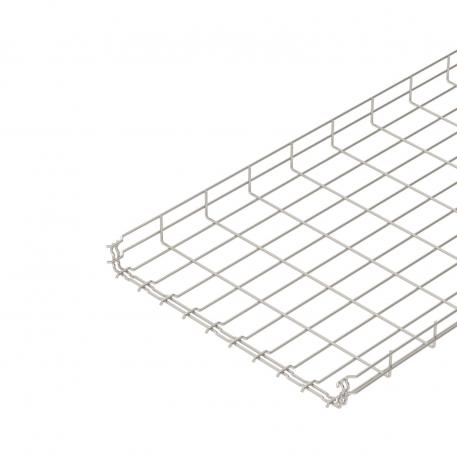

Mesh cable tray with shaped connector of side height 55 mm.
Magnetic shield insulation without cover 15 dB, with cover 25 dB.

Technical data

Colour	stainless steel
Connector version	Integrated connector
CO₂ Footprint (GWP) Cradle-to-Gate	13,908 kg CO₂e / 1 Meter

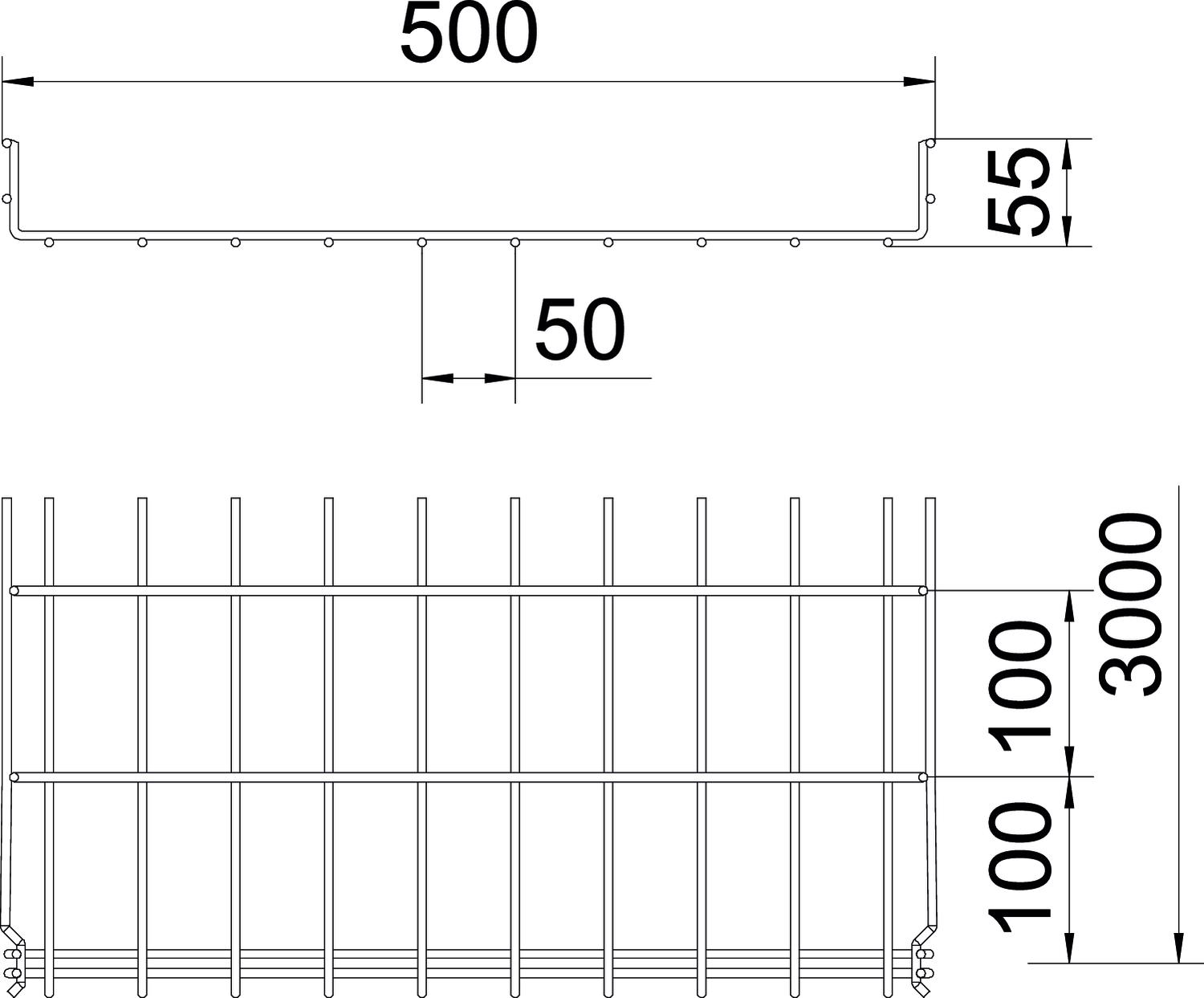

Dimension	55x500x3000
Dimension B	500 mm
Dimension H	58 mm
Height	55 mm
Height	2,17 in
Integrated partition	Without
Length	3000 mm
Load test type according to IEC 61537	Type II
Maintain electrical functions	no
Material	Stainless steel
Profile shape	U-shaped

Rustproof steel, pickled	yes
Screwless connector	yes
Support spacing 1.0 m	0,9 kN/m
Support spacing 1.5 m	0,6 kN/m
Support spacing 2.0 m	0,3 kN/m
Support spacing 2.5 m	0,25 kN/m
Surface	Bright, treated
Type of connector, cable support system	Click fastening
Usable cross-section	22000 mm²
Usable cross-section	220 cm²
Width	500 mm
Width	19,69 in
Wire diameter	4,8 mm

Technical data

All types

Types	Length	Width	Height	Wire diameter	Usable cross-section	Maintain electrical functions	Item no.	Quantity	SSU
GRM 55 50 A2	3000 mm	50 mm	55 mm	3.9 mm	16 cm²	yes	6001070	m	3 m
GRM 55 100 A2	3000 mm	100 mm	55 mm	3.9 mm	40 cm²	yes	6001072	m	3 m
GRM 55 150 A2	3000 mm	150 mm	55 mm	3.9 mm	63 cm²	yes	6001074	m	3 m
GRM 55 200 A2	3000 mm	200 mm	55 mm	3.9 mm	87 cm²	yes	6001076	m	3 m
GRM 55 300 A2	3000 mm	300 mm	55 mm	4.8 mm	129 cm²	yes	6001078	m	3 m
GRM 55 400 A2	3000 mm	400 mm	55 mm	4.8 mm	175 cm²	yes	6001080	m	3 m
GRM 55 500 A2	3000 mm	500 mm	55 mm	4.8 mm	220 cm²	no	6001082	m	3 m
GRM 55 600 A2	3000 mm	600 mm	55 mm	4.8 mm	265 cm²	no	6001085	m	3 m

Accessories

Products	Types	Item no.	Quantity	SSU

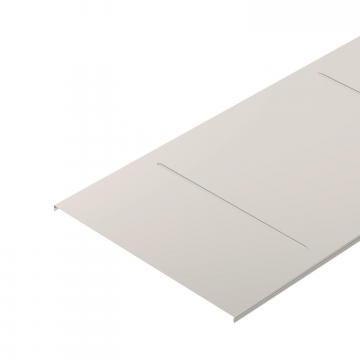

Cover for mesh cable tray, latchable A2	DGRR 500 A2	6001872	m	3 m
Corner connector A2	GEV 36 A2	6016731	piece	20 piece

Products	Types	Item no.	Quantity	SSU
Separating retainer 45 A2	TSG 45 A2	6062025	m	3 m
Clamping piece for separating retainer fastening	KS GR A2	6062282	piece	30 piece
Drop-out plate A2	KAB GR A2	6220145	piece	10 piece
