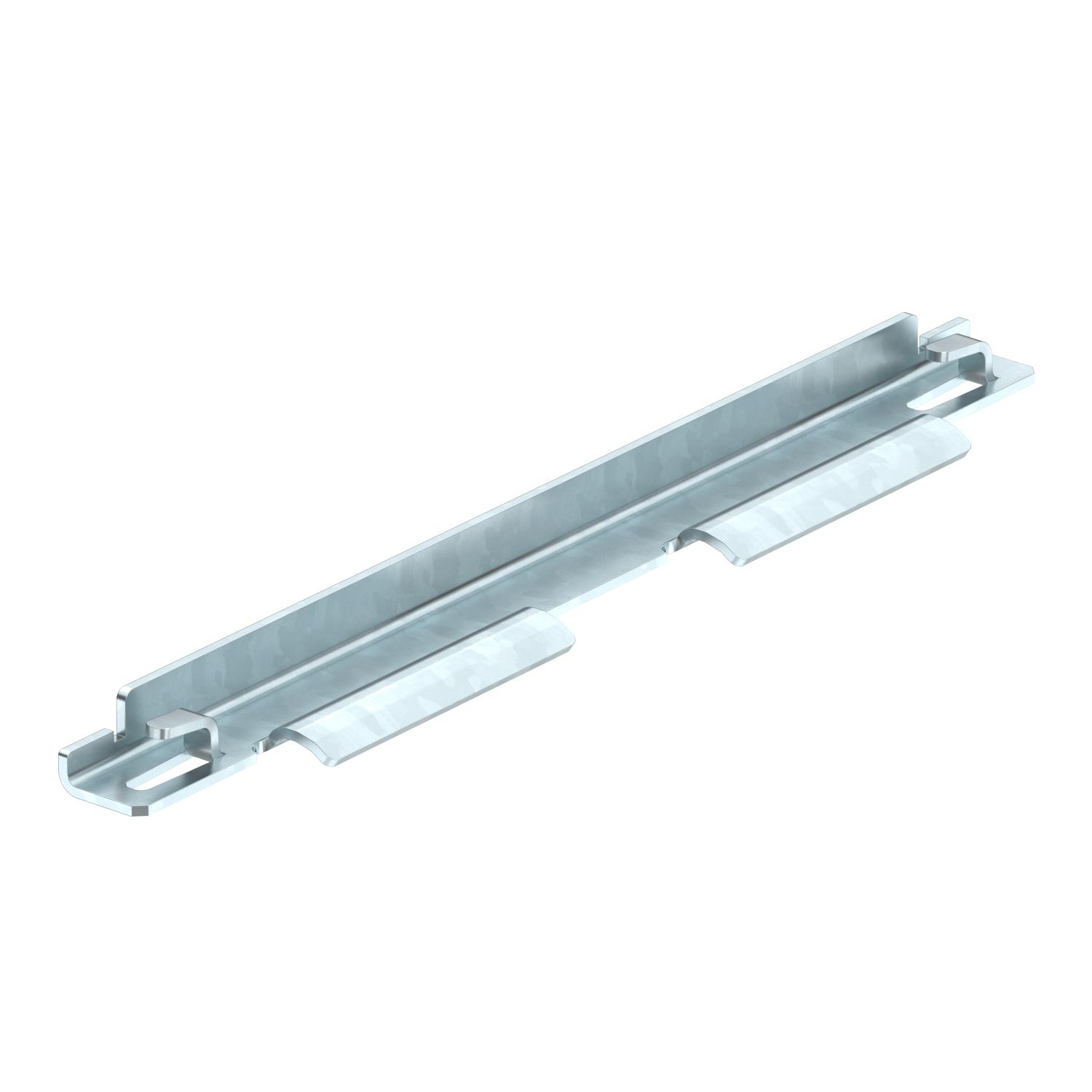

Mesh cable tray connector, long DD
Item no. 6016684 | EAN 4012196054251
- Product description
-
Product description
Long mesh cable tray connection for screwless straight connection of mesh cable trays.
-
- Technical data
-
Technical data
Adjustable connector, horizontal no Articulated connector, vertical no Connection type Screwless connector Dimension L245mm Dimension 245 x 30 Maintain electrical functions no Material Steel Plate thickness 2 mm Rustproof steel, pickled no Suitable for cable ladder no Suitable for cable tray no Suitable for mesh cable tray yes Surface Strip galvanised zinc/aluminium, Double Dip Version for Straight connector Dimensions

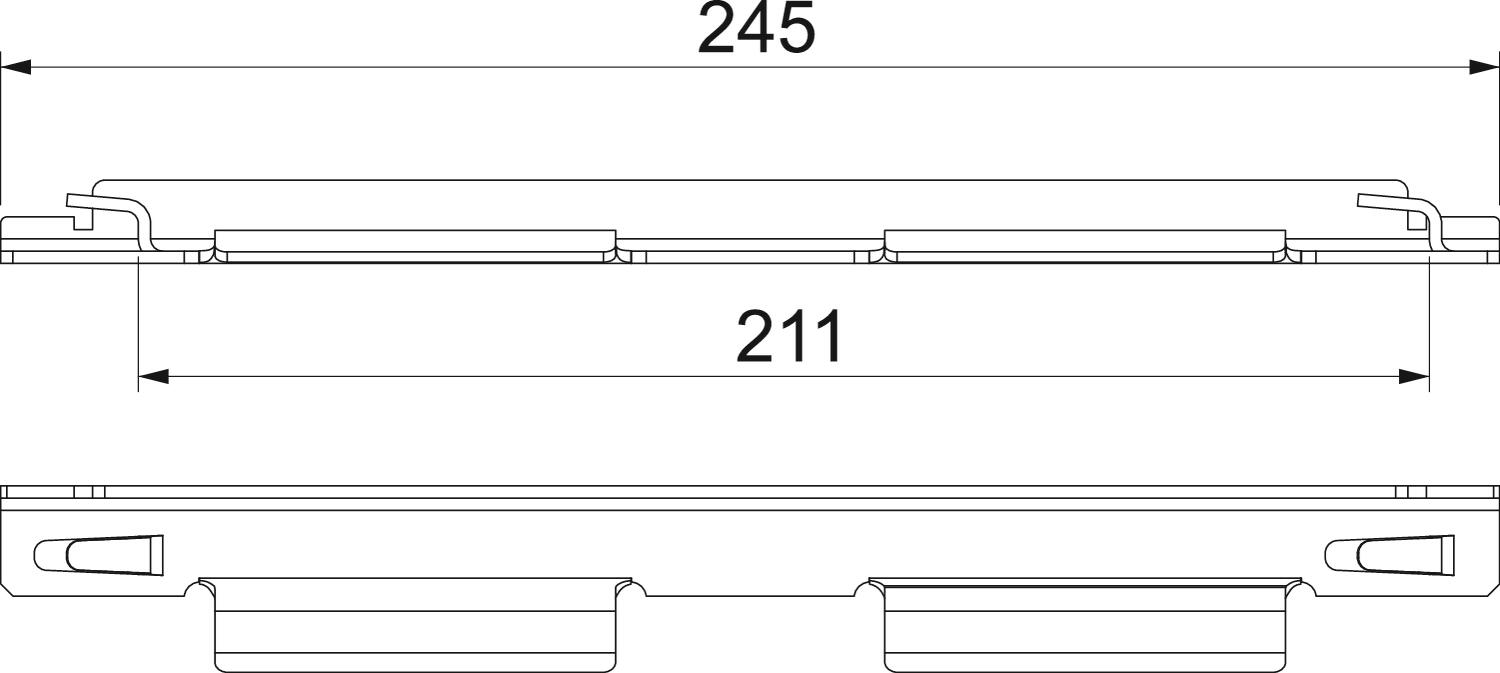

Height 0,55 in Height 14 mm Length 245 mm Width 1,18 in Width 30 mm - All types
