Mesh cable tray connector FT

Item no. 6015107 | EAN 4012196359172

6015107 / K 11 262 FT
40 mm
24 mm
Steel
Hot-dip galvanised
60x40
Product description

Product description

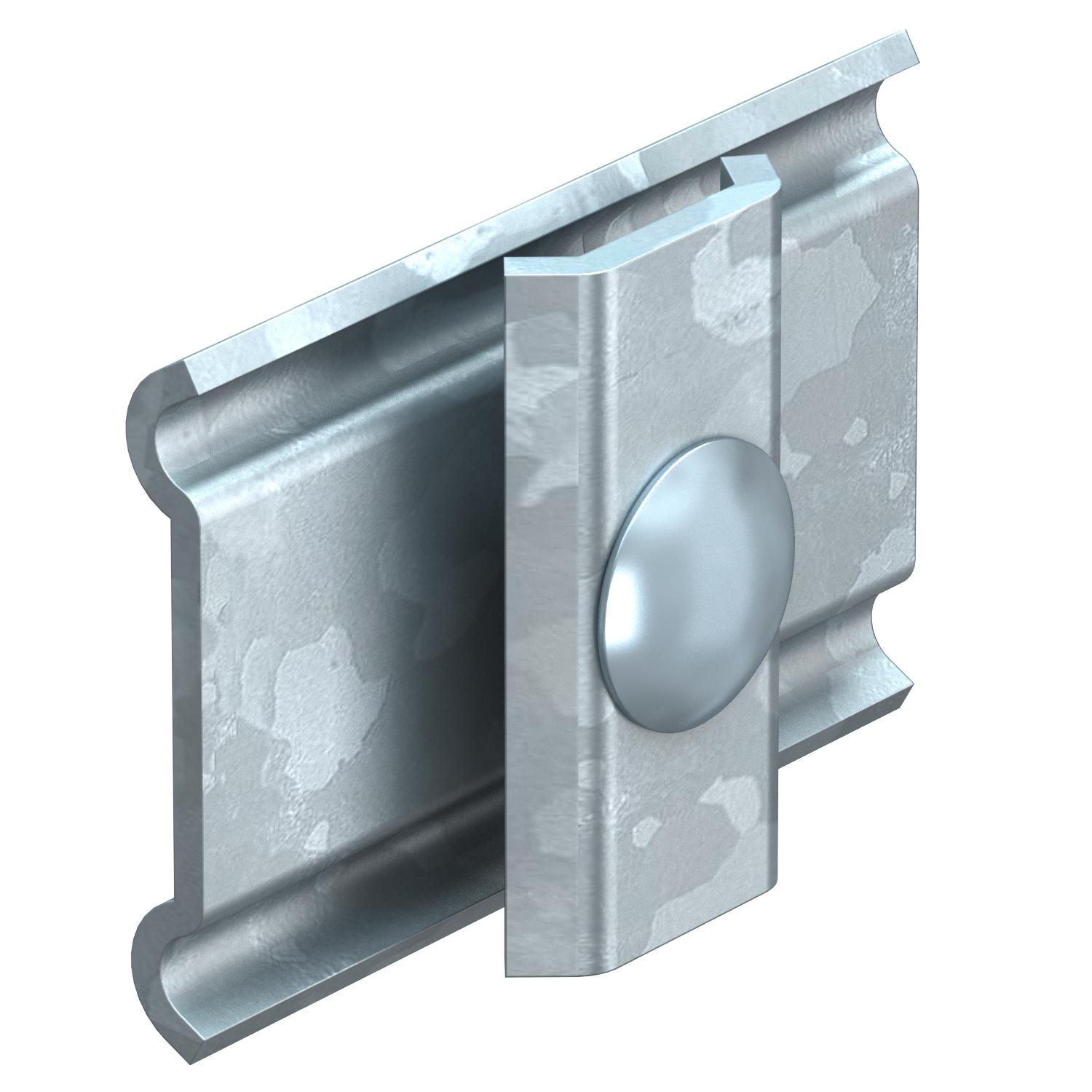

Screwed version of joint connector for mesh cable trays.
  • Communautés Européennes, EC declaration of conformity according to EC directives
  • Mesh cable tray, slant height 55 mm
  • Mesh cable tray, slant height 105 mm
  • C-mesh cable tray, slant height 50mm
Technical data

Technical data

Adjustable connector, horizontal no
Articulated connector, vertical no
Connection type Screw connector
Dimension 60x40
Dimension 60 x 40
Maintain electrical functions no
Material Steel
Rustproof steel, pickled no
Suitable for cable ladder no
Suitable for cable tray no
Suitable for mesh cable tray yes
Suitable for mesh cable tray wire, max. 4,9 mm
Suitable for mesh cable tray wire, min. 3,9 mm
Surface Hot-dip galvanised
Version for Straight connector

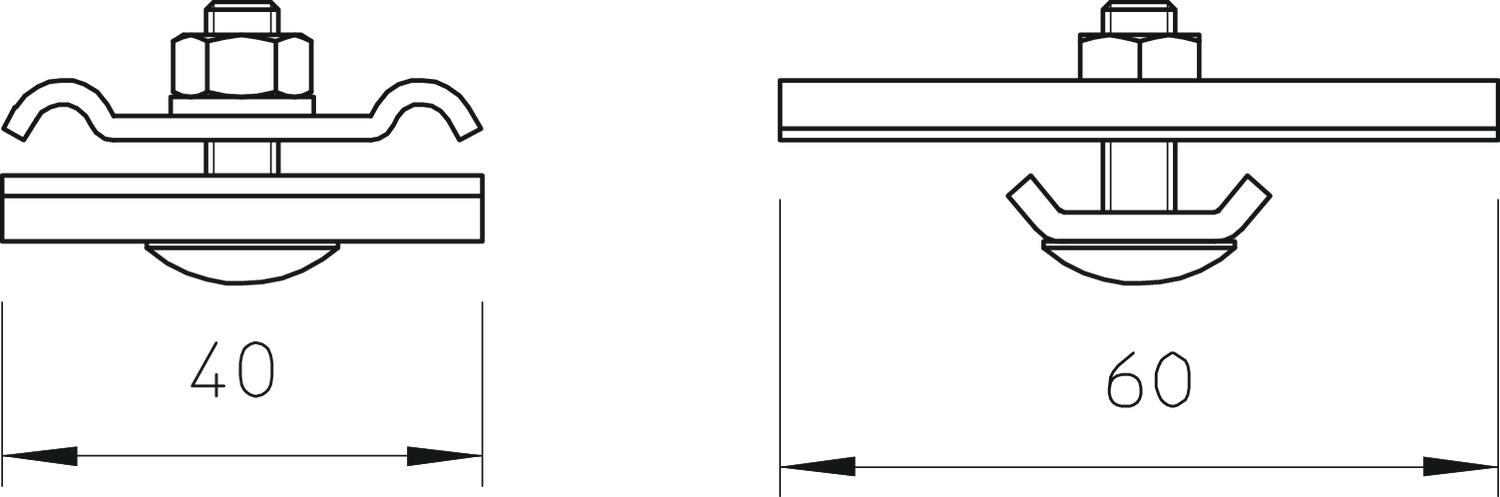

Dimensions

Height 24 mm
Height 0,94 in
Length 60 mm
Width 40 mm
Width 1,97 in
All types

All types

Types Width Height Material Surface Dimension Item no. Quantity SSU
K 11 262 FT 40 mm 24 mm Steel Hot-dip galvanised 60x40 6015107
25 piece
