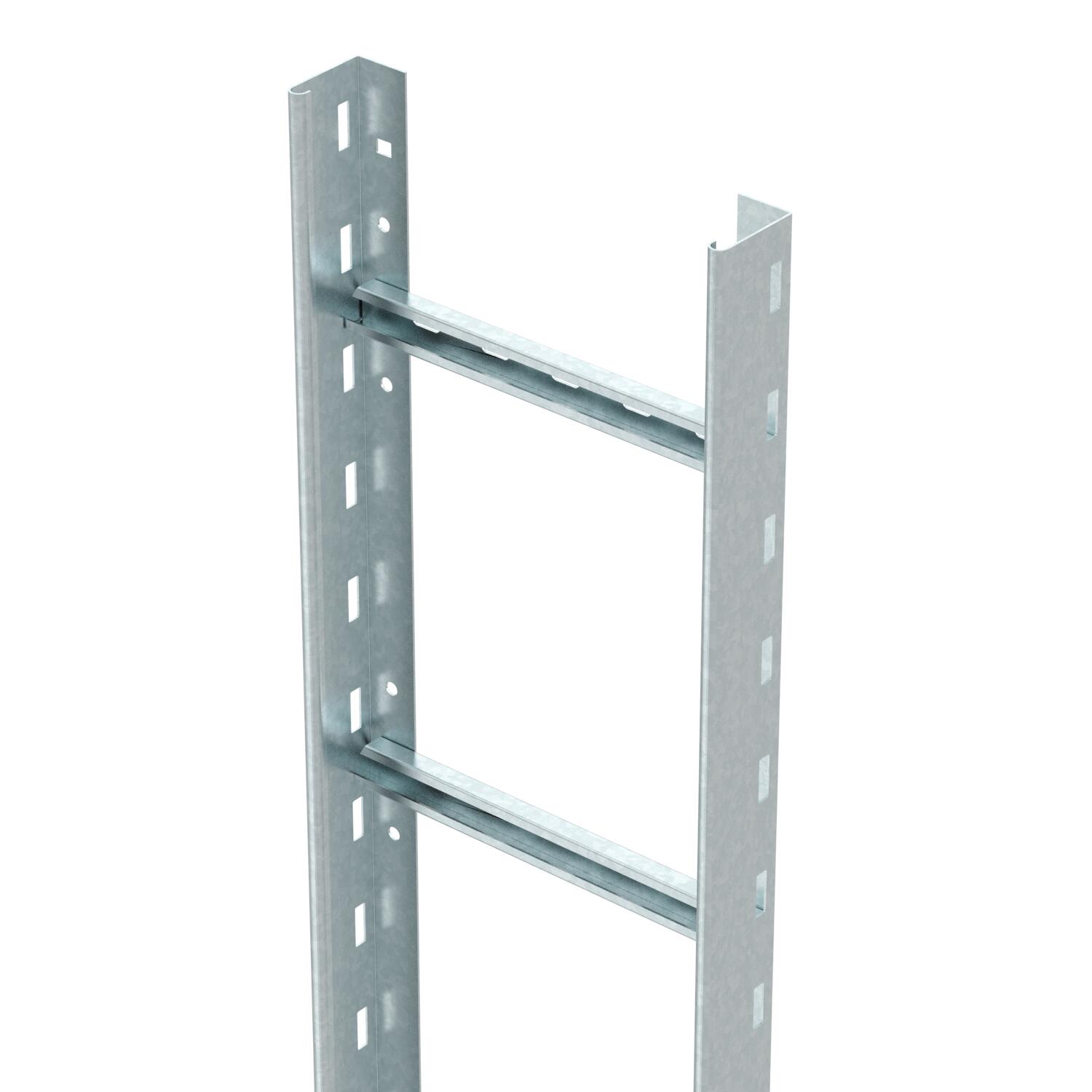

Medium-duty vertical cable ladder SLG 60, 6 m NS
Item no. 6207997 | EAN 4012195695608
- Product description
-

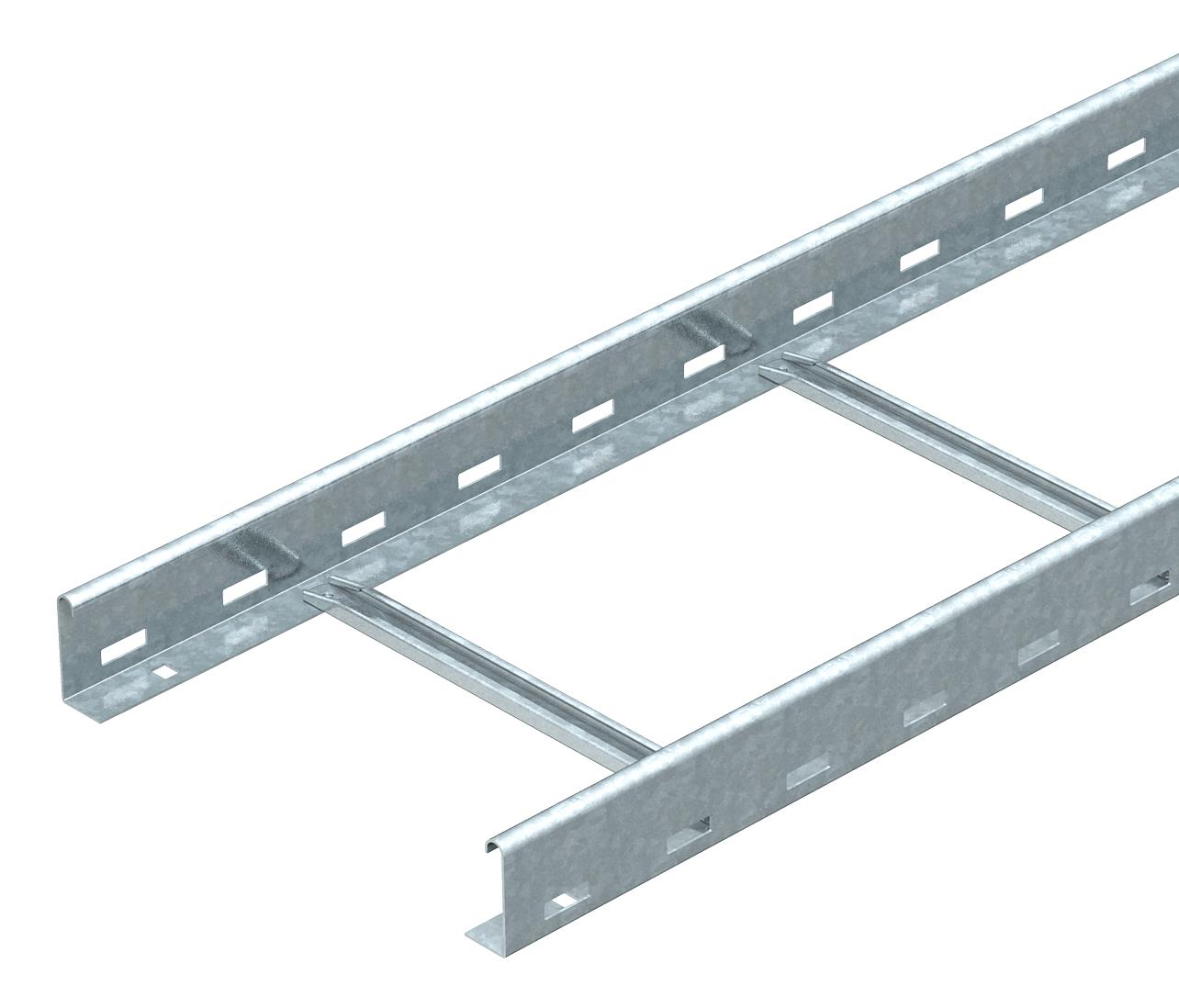

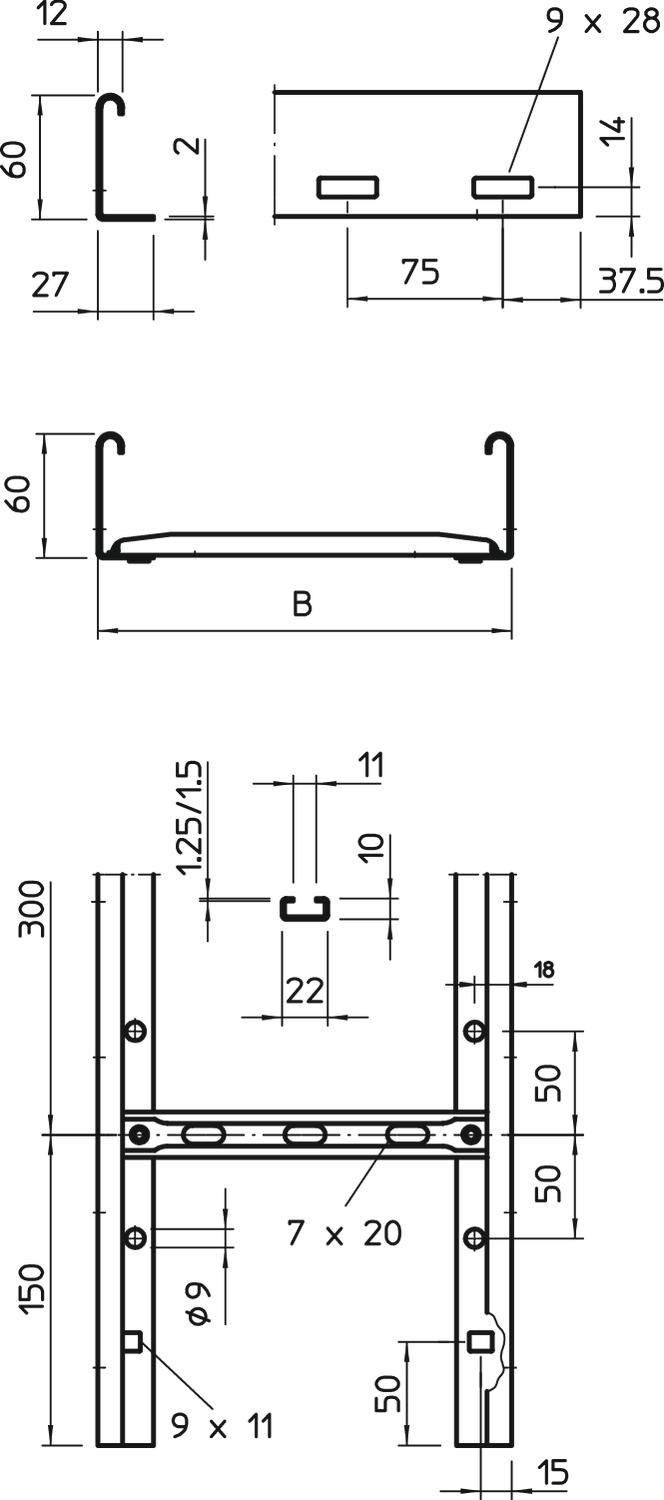

Product descriptionCable ladder with 60 mm side height with riveted C profile rungs which are open in an upwards direction. Rolled side rail for reinforcement and as edge protection. Fastening to the bracket takes place using clamp, type LKS 40. The slot dimension of the frame is 11 mm and the appropriate U clamp is type 2056/N.
Magnetic shield insulation without cover 10 dB, with cover 15 dB.
-
- Technical data
-
Technical data
CO₂ Footprint (GWP) Cradle-to-Gate 8,739 kg CO₂e / 1 Meter Dimension 60x500x6000 Dimension 60x500x6000 Fastening of rung Blind riveted Height 60 mm Length 6000 ft Length 6000 mm Maintain electrical functions no Material Steel Rail thickness 2 mm Rung distance 300 mm Rustproof steel, pickled no Side perforation yes Side rail version Flat profile Support spacing 1.5 m 3,1 kN/m Support spacing 2.0 m 2 kN/m Support spacing 2.5 m 1,5 kN/m Support spacing 3.0 m 1,1 kN/m Support spacing 3.5 m 0,6 kN/m Support spacing 4.0 m 0,45 kN/m Surface Hot-dip galvanised Usable cross-section 248 cm² Usable cross-section 24800 mm² Version of the rungs Profile perforated Wide-span version no Width 500 mm Technical data

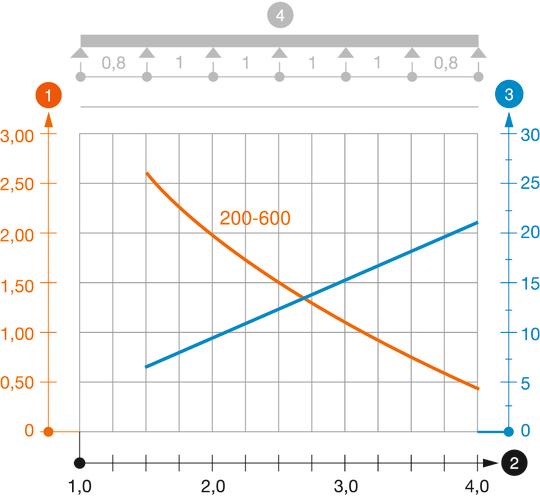

Load diagram, cable ladder, type SLG 60 NS
-
Permitted cable tray/ladder load in kN/m without man load
-
Support width in m
-
Rail bend in mm at permitted kN/m
-
Load scheme during testing
-
Load curve with cable tray/ladder width in mm
-
Strut bend curve according to support width
-
- All types
-
System accessories
Products Types Item no. Quantity SSU
Cover with turn buckle FT
DRL 500 FT 6051448 3 m - Downloads
-
Data sheet SLG 650 NS 6 FT / 6207997 , 0.29MB , pdfCatalogue Kabeltragsysteme , 45.23MB , pdfEU declaration of conformity SLG 650 NS 6 FT / 6207997 , 0.10MB , pdfMounting instructions Mounting instructions, cable ladder systems , 6.45MB , pdfMounting instructions General information on the mounting , 2.61MB , pdfNo invitation to tender text is available for this product.
